Addressing Components on the DPN
The Digital Programming Network consists of 10 amplifier/DSP nodes numbered 0 through 9.
The DIP switches on each DC amp and DSP-Z8 are used to address each device within the network
Note: Turn all amps off before setting address switches
0
4
8
1 2
3
5
6
7
9

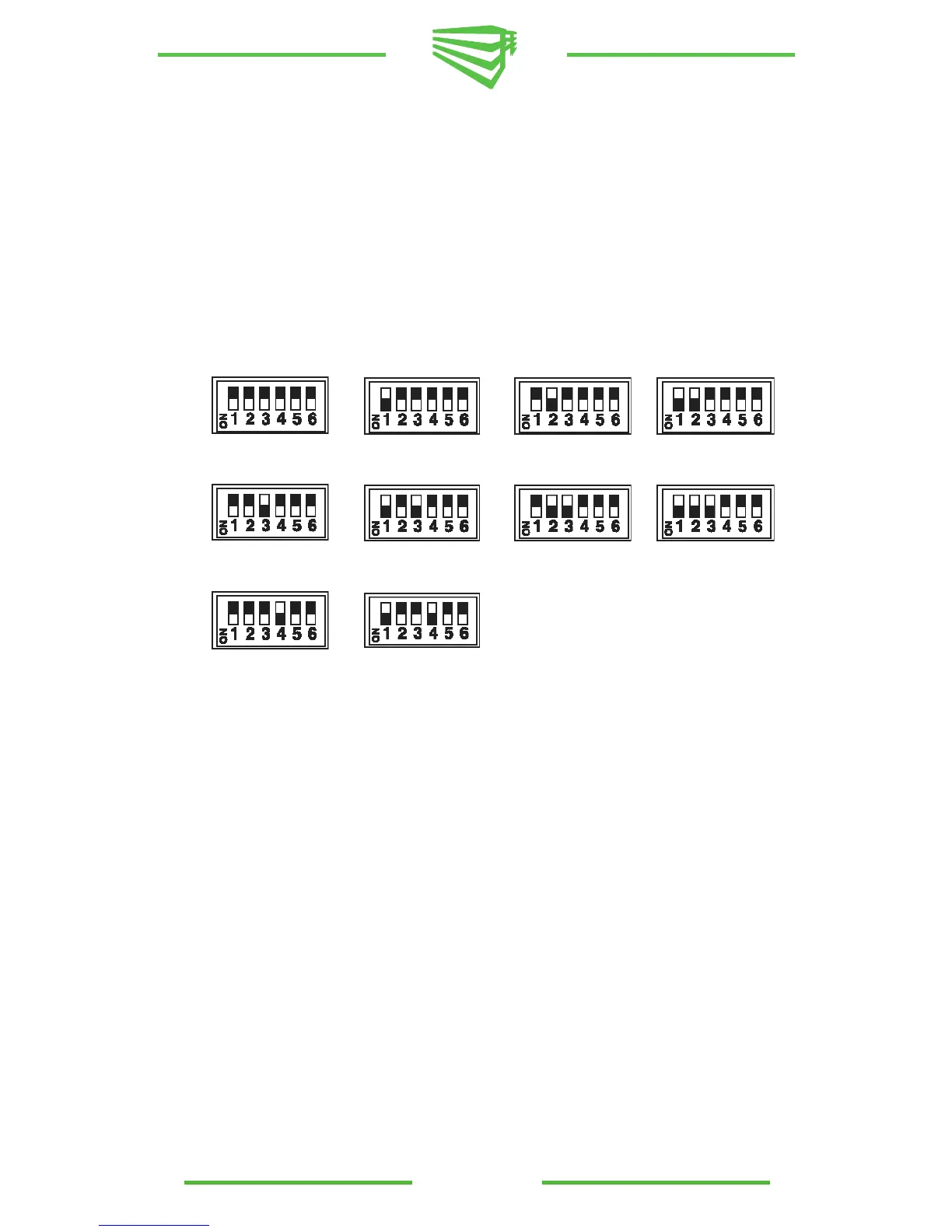

Binary numbering for nodes on the programming network
Up to 10 devices can be addressed using the DIP switch. Only the first 4 pins are for addressing the
devices. Pins 5 and 6 are not used.
Note: If you are using your DSP-Z8 by itself and not in a network, you will not need to use the DIP
switches at all.
