ADDITIONAL GROUND CONNECTIONS:
To ensure proper system grounding the following additional connections
must be made. RCA Shields & SEQ case must be connected to case of
source unit.
RCA Shields - Signal Ground from amplifier inputs (connect wire from
RCA Shields @ amplifier input to case of source unit)*
SEQ Case - Case Ground from SEQ
(connect wire from SEQ case to case of source unit)*
* Four separate wires should terminate under the same screw at the
case of the source unit.
**Preferably, this connection is made through a 1/4 amp, fast blow, fuse
directly to the car battery.
Connecting the SEQ
The SEQ has a special miniature circular 7 pin connector with gold
plated pins. The connector snaps into place like other high quality

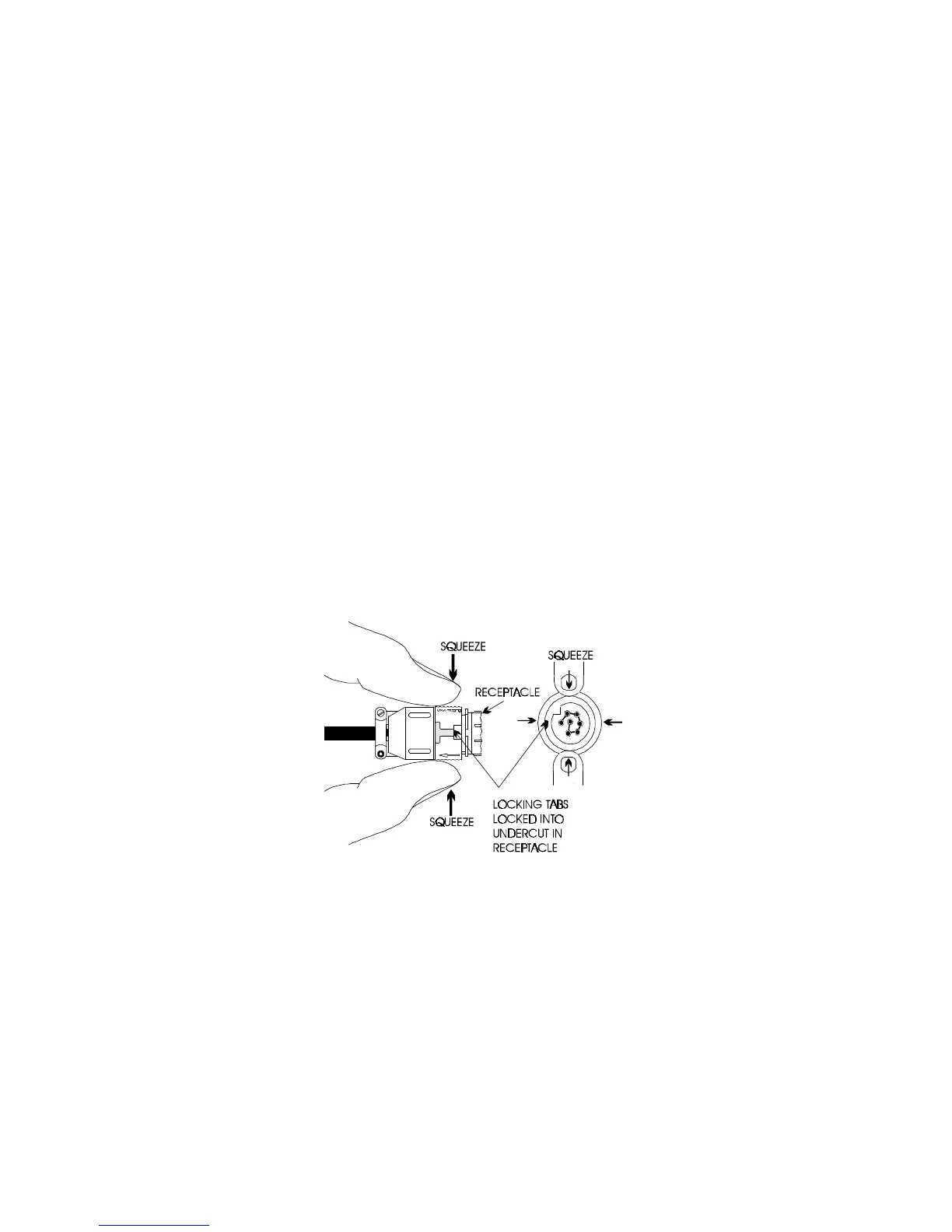

connectors. To remove it, squeeze and then pull as shown:
Don’t turn - Don’t twist - Don’t use hand tools!
1. Squeeze finger grips to flex plastic coupling area. The locking tabs
will deflect outward and unlock.
2. Pull plug from receptacle.
5
