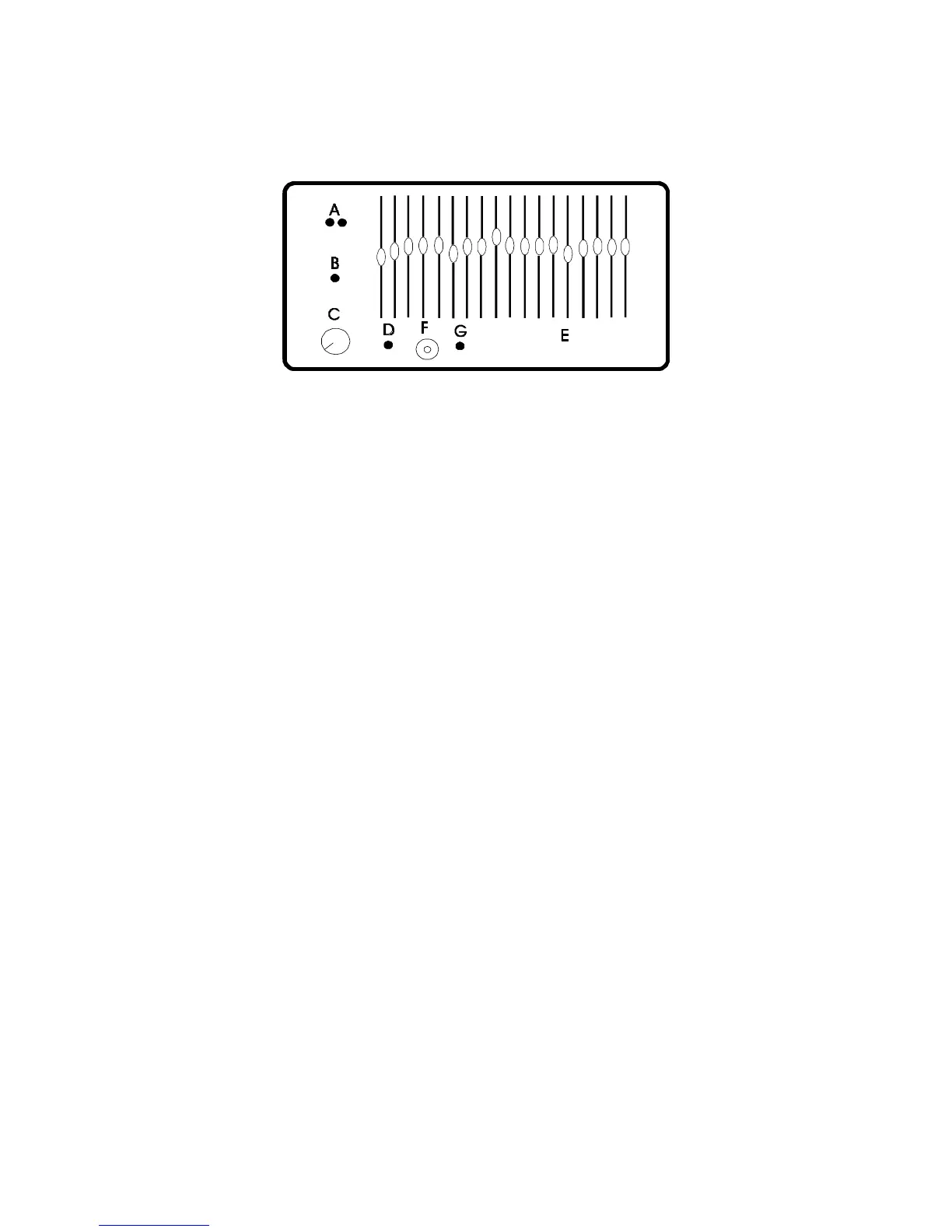

Operation and Calibration
A. Input gain controls provide adjustable gain of 6dB to 26dB.
B. Input clipping detector flashes whenever input signal is within +/- 1dB
of clipping (super-bright LED).
C. Volume control: high-quality conductive plastic potentiometer.
D. Output clipping detector: indicates the onset of output clipping.
E. Equalizer boost/cut controls.
F. On/off/mute switch, full output in up position, off in center, mute
(-22dB) in down position, (instrumentation type toggle switch.)
G. “On”: indicator LED.
