User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID
4.3. Photovoltaic connection
The photovoltaic connection method is the same as that of the battery connection, only the terminal
specifications are different, refer to
Table 6. The steps are the same as for the battery.
Before removing the positive and negative connectors, make sure that
the DC circuit breaker is open.

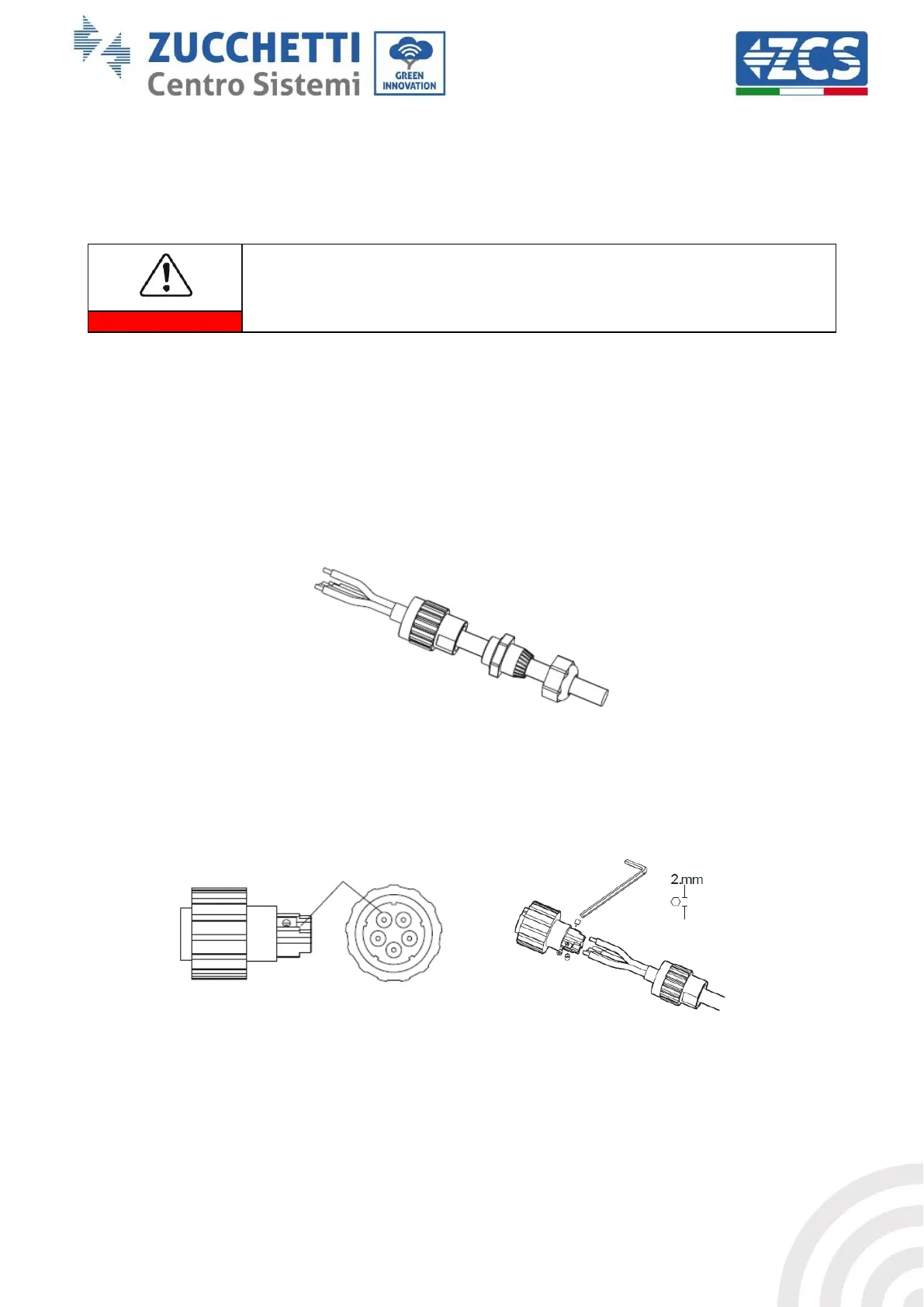

4.4. Load connection
Procedure:
1. Select the type of cable and the appropriate specifications according to
2. Table 6.
3. Pass the wire through the terminal.
Figure 50 - Passing of the wire through the terminal
4. Connect the cable to the terminal, according to the identification on the terminal.
Figure 51 - Connecting the cable to the terminal
