MC2200/MC2700 Quick Start Guide
4

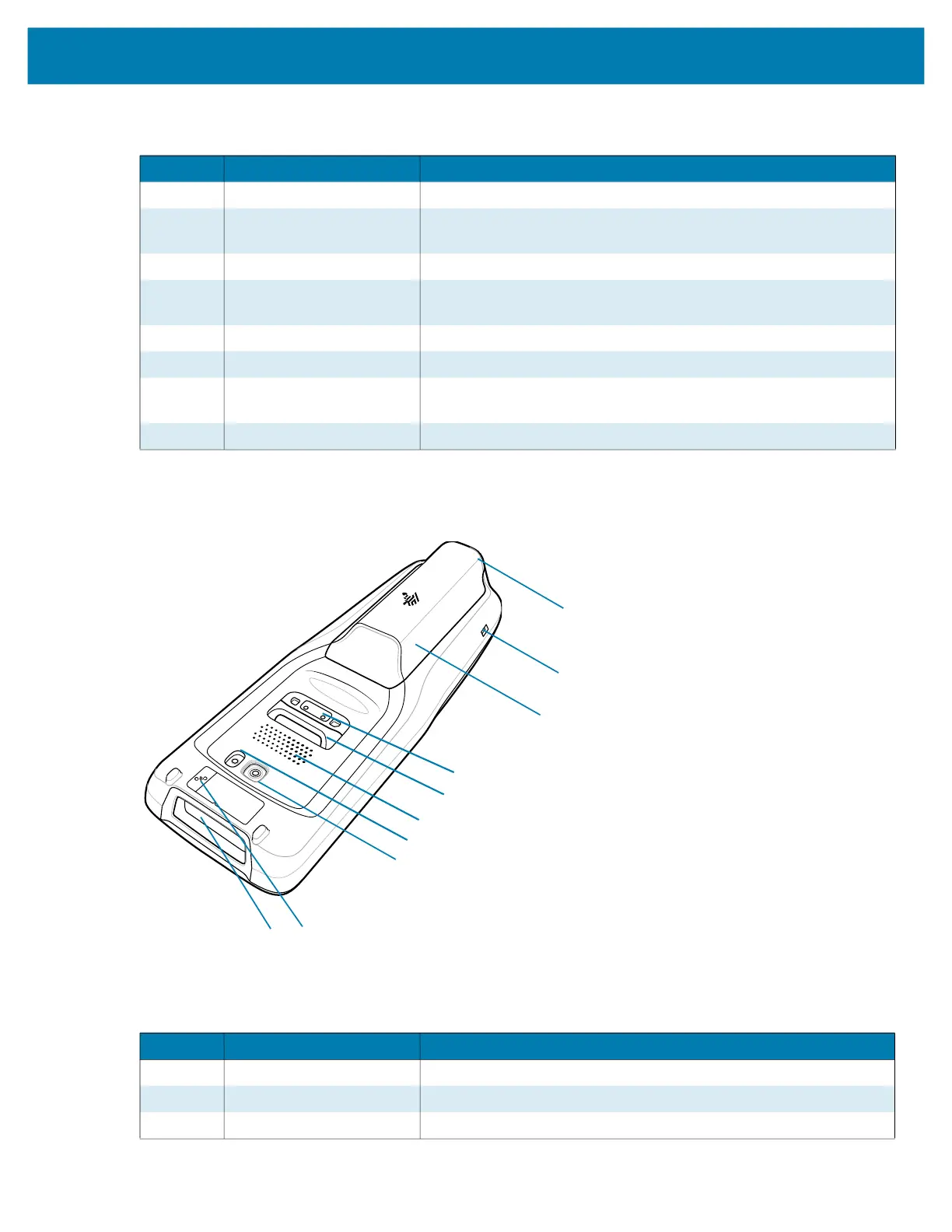

Back View
Table 1 Front View Features
Number Item Function
1 Hand strap clip slot Use for securing the hand strap in place.
2 USB-C connector/Bottom
port
Provides USB host and client communications, and device
charging via cables and accessories.
3 Microphone Use for communications in Handset mode.
4 Power button Turns the display on and off. Press and hold to reset the device or
power off.
5 Scan button Initiates data capture when a scan application is enabled.
6 Touch screen Displays all information needed to operate the device.
7 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
8 Scan indicator Indicates a successful or unsuccessful scan.
Table 2 Back View Features
Number Item Function
9 Exit window Provides data capture using the imager.
10 NFC antenna Provides communication with other NFC-enabled devices.
11 Camera Takes photos and videos.
9
11
13
14
15
16
17
18
12
10
