Zebra TC52 Series Quick Reference Guide

3
Features

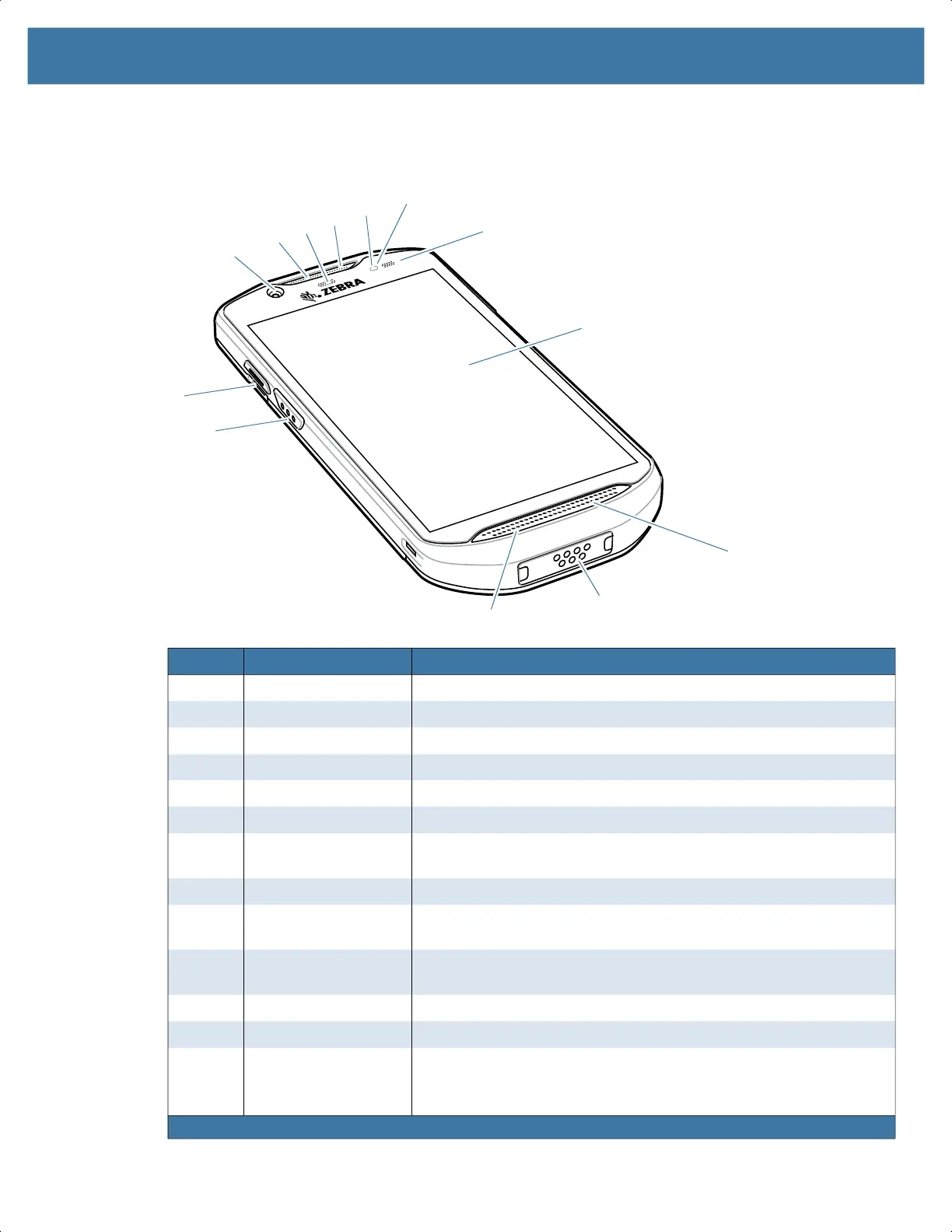

Figure 1 Front View
Number Item Function
1 5 MP Front Camera Takes photos and videos.
2 Receiver Use for audio playback in Handset mode.
3 Data Capture LED Indicates data capture status.
4 Microphone Use for communications in Speakerphone mode.
5 Proximity Sensor Determines proximity for turning off display when in handset mode.
6 Light Sensor Determines ambient light for controlling display backlight intensity.
7 Charging/Notification
LED
Indicates battery charging status while charging and application
generated notifications.
8 Touch Screen Displays all information needed to operate the device.
9 Speaker Provides audio output for video and music playback. Provides audio
in speakerphone mode.
10 Interface Connector Provides USB host and client communications, audio and device
charging via cables and accessories.
11 Microphone Use for communications in Handset mode.
12 Scan Button Initiates data capture (programmable).
13 Programmable Button Typically used for PTT communications. Where regulatory
restrictions exist
1
, button is configurable for use with other
applications.
Note 1: Pakistan, Qatar
8
13
12
11
10
9
7
6
5
3
2
4
1
MN-003869-01ENa_tc52x-qsg-en.book Page 3

Zebra TC52 Series Specifications

General

Processor	Qualcomm Snapdragon 660 octa-core, 2.2 GHz
Memory	4 GB RAM/32 GB Flash or 4 GB RAM/64 GB Flash
Front Camera	5 MP
Operating Temp	-4°F to 122°F/-20°C to 50°C
Operating System	Android
Touch Panel	Capacitive touch panel; multi-touch
Rear Camera	13 MP with autofocus and flash
Battery	Li-Ion 4150 mAh; Hot-swappable
Connectivity	Wi-Fi 802.11 a/b/g/n/ac
Drop Specification	Multiple 6 ft./1.8 m drops to concrete over operating temperature range
Tumble Specification	1000 tumbles at 0.5 m (1.6 ft)
Sealing	IP65
Expansion Slot	MicroSD
Scanner	SE4710 imager (1D and 2D barcode scanning)
Durability	Corning Gorilla Glass
Weight	8.8 oz./249 g
