TC57 Quick Start Guide
16
Scanning
To read a bar code, a scan-enabled application is required. The device contains the DataWedge application
that allows the user to enable the imager, decode the bar code data and display the bar code content.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).

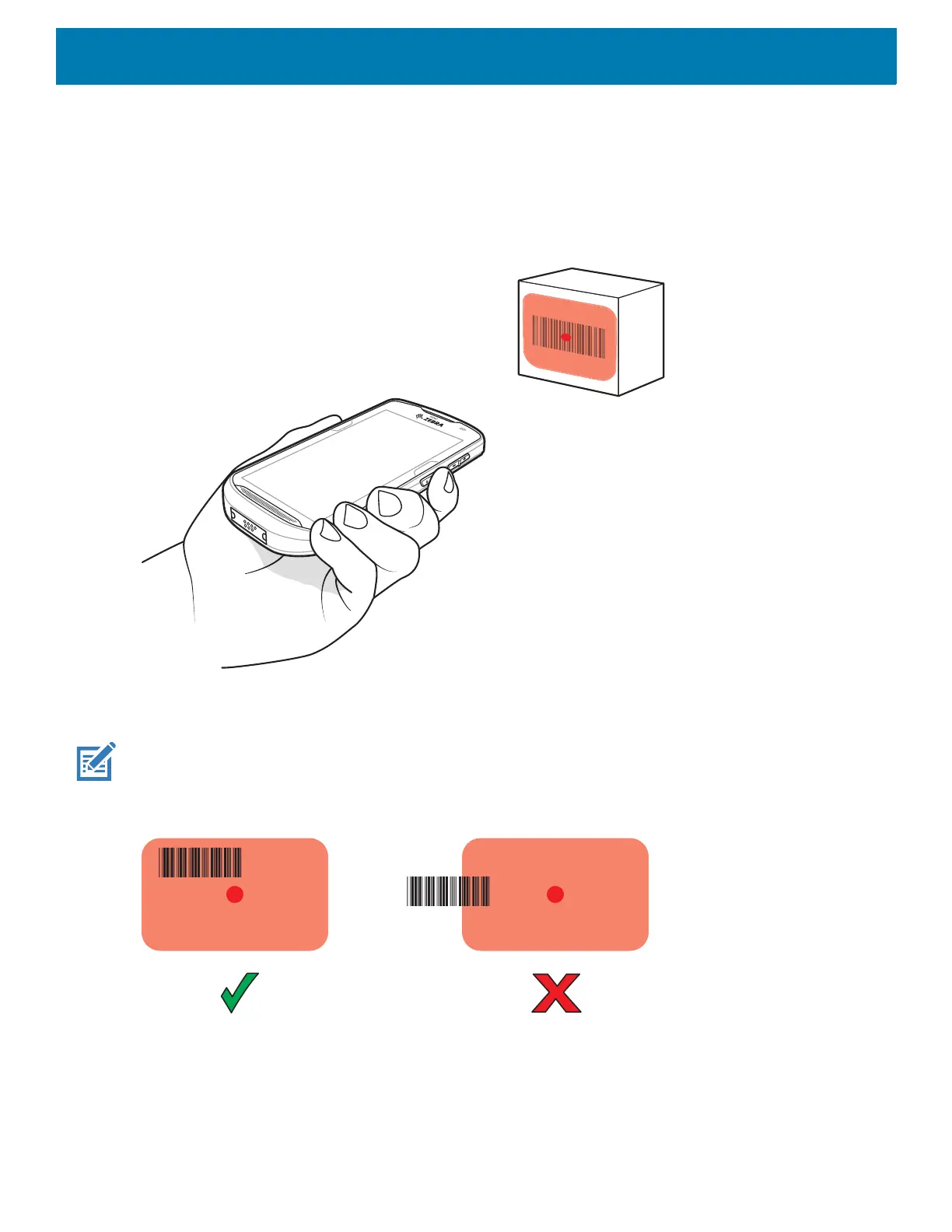

2. Point the exit window on the top of the device at a bar code.
3. Press and hold the scan button.
The red laser aiming pattern turns on to assist in aiming.
NOTE: When the device is in Picklist mode, the imager does not decode the barcode until the crosshair or aiming dot touches
the barcode.
4. Ensure the barcode is within the area formed by the cross-hairs in the aiming pattern. The aiming dot is
used for increased visibility in bright lighting conditions.
