Zebra TC5X User Manual

3
Features

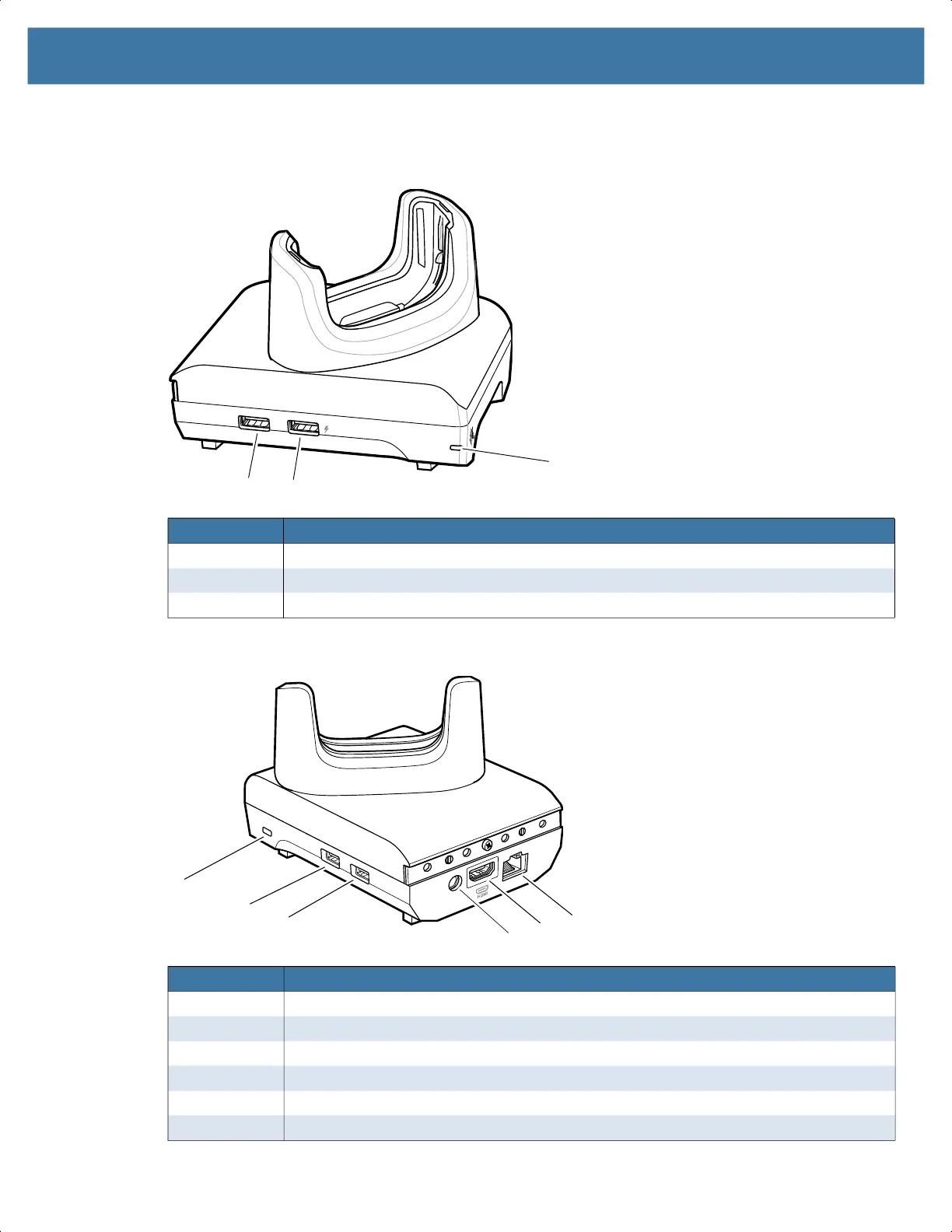

Figure 1 Left Side View (TC5X Cradle Shown)
Figure 2 Rear/Right Side View (TC5X Cradle Shown)
Item Description
1 LED - Indicates that power is applied to the cradle.
2 1.5 mA USB Port - USB Type A port for mouse or keyboard, or personal mobile device.
3 0.5 mA USB Port - USB Type A port for mouse or keyboard.
Item Description
4 Ethernet Port - Connects to an Ethernet network.
5 HDMI Port - Connects to monitor.
6 Power Port - Provides power to the cradle.
7 USB Type A Port - Connection for mouse or keyboard.
8 USB Type A Port - Connection for mouse or keyboard.
9 Kensington Slot - Connecting point for Kensington locking system to secure cradle.
1
23
7
8
9
4
5
6
MN-003856-01ENa_mobile-workstation-ug-en.book Page 3

Zebra TC5X Specifications

General

Brand	Zebra
Model	TC5X
Category	Docking Station
Language	English
