Zebra ZP 500 User Manual

Quick Installation Guide 4
ZP 500 Plus Thermal Printer

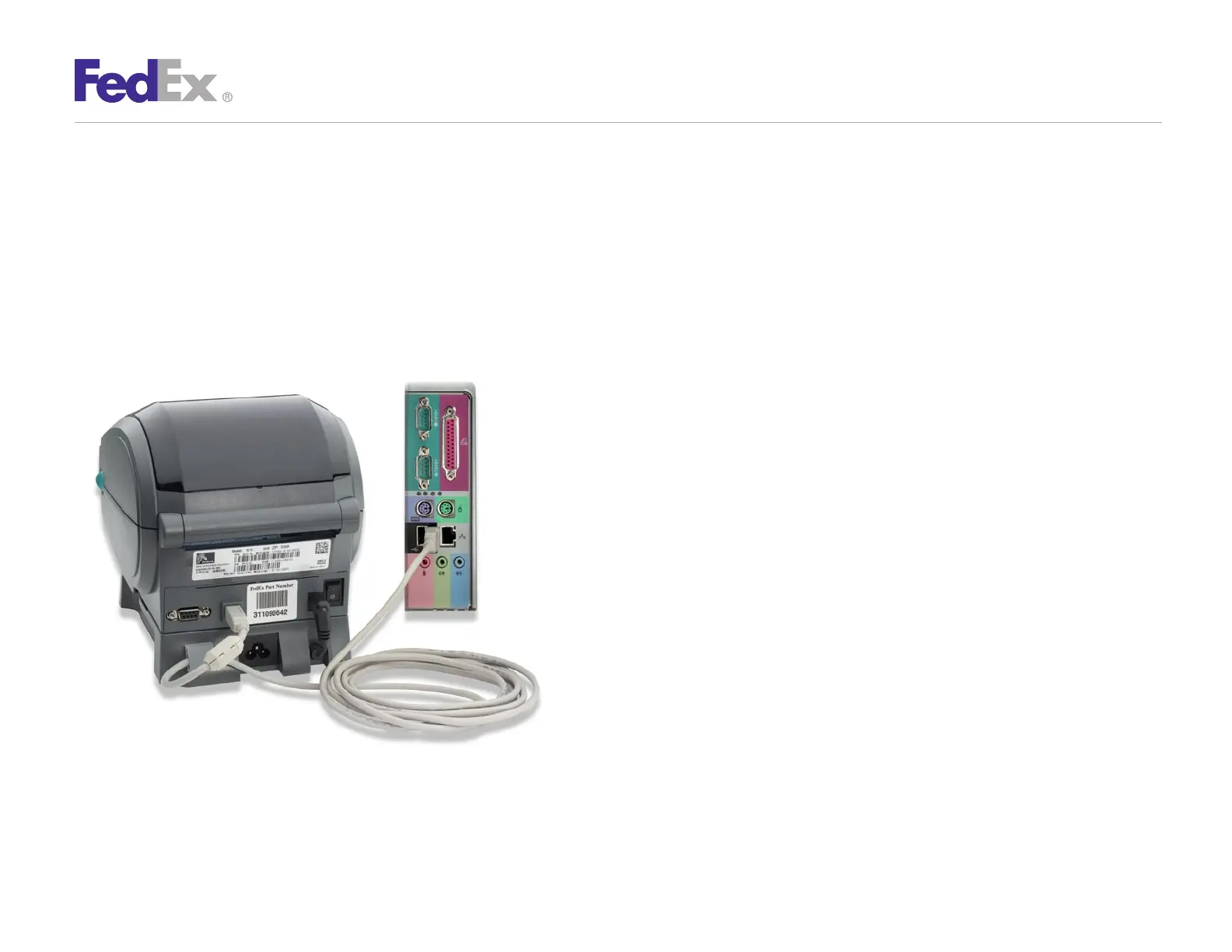

Turn off your computer and the printer before connecting the
supplied USB cable to a dedicated USB port on the printer.
Be sure to thread the USB cable through the strain relief clip
before connecting it to the printer. Then connect the USB cable
from the printer to a dedicated USB port on the computer.
After connecting the printer, turn your computer on,
but do not turn the printer on yet.
Step 3: Connect the Printer
to Your Computer
Step 4: Turn Your Computer On

Zebra ZP 500 Specifications

General

Resolution	203 dpi (8 dots/mm)
Print Method	Direct Thermal
Maximum Print Width	4.09 inches (104 mm)
Memory	8 MB SDRAM
Connectivity	USB
Maximum Print Length	39 inches (991 mm)
Media Width	19 to 110 mm
Power Requirements	100-240 VAC, 50/60 Hz
Storage Temperature	-40 to 140°F (-40 to 60°C)
