ZEKS Eclipse ZPA 90-5000 Desiccant Dryers
www.zeks.com
12
9.0 MAINTENANCE AND SYSTEM CHECK
(AA) (AA) (MS)
DIMENSIONS (INCH) -40
o
F -100
o
F
MODEL DRYERS DRYERS
A B C lbs./Dryer lbs./Dryer
90 23.00 10.50 30.00 100 75 25
120 17.00 6.50 20.38 134 101 34
160 22.00 8.50 28.75 192 144 48
200 14.00 3.00 21.50 236 177 59
250 23.00 10.50 28.00 290 218 73
300 12.00 6.00 21.25 344 258 86
400 11.00 6.00 22.25 470 353 118
500 27.00 12.75 34.75 638 479 160
600 17.50 7.75 29.00 748 561 187
800 34.00 13.50 41.00 900 675 225
1000 23.00 7.50 31.50 1100 825 275
1200 10.00 2.00 23.75 1270 953 318
1500 12.00 2.75 23.25 1600 1200 400
1800 35.00 15.50 45.75 2000 1500 500
2100 22.00 10.75 38.50 2340 1755 585
2700 6.00 2.50 26.00 2928 2196 732
3300 16.25 8.00 35.25 4000 3000 1000
4000 7.75 3.50 29.00 4250 3150 1100
5000 9.00 4.25 28.00 5600 4200 1400
ACTIVATED ALUMINA (AA); 4-8 mm
ACTIVATED ALUMINA (AA); 4-8 mm
MOLECULAR SIEVE (MS)
-40
o
F DRYERS -100
o
F DRYERS
NOTE: Desiccant weight shown is per-dryer.

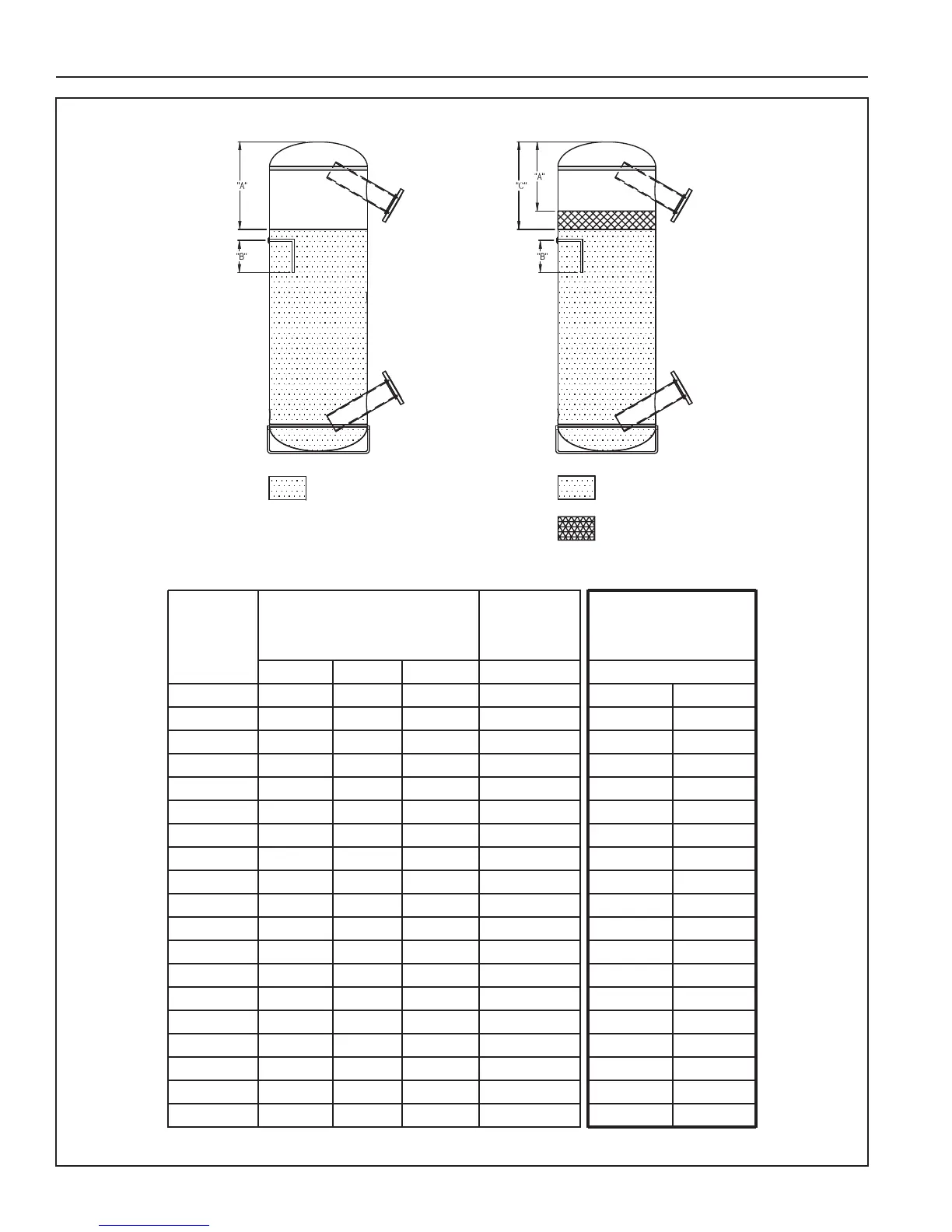

DESICCANT FILL INSTRUCTIONS
