Zenith A20A22D - Ga2 25 V Traditional Console Exploded View

CM150 5-4 GA - EXPLODED VIEWS

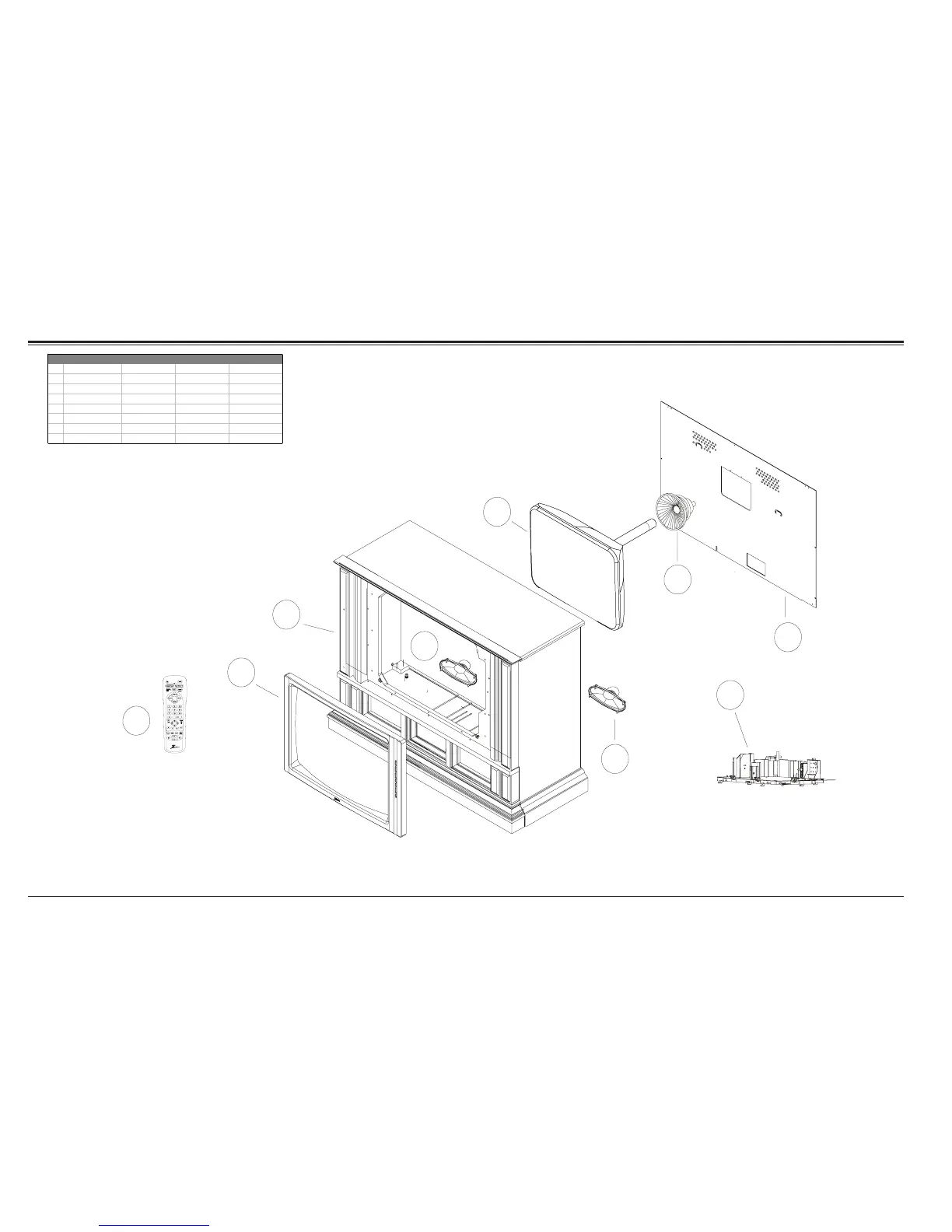

GA2 25V TRADITIONAL CONSOLE EXPLODED VIEW
2
3
MBR3447
124-00212-35
1
8
4
5
6
7
3
REF DESCRIPTION A25A74R A25A74R7 A25A74R8
1 ESCUTCHEON 057-09067-07 057-09067-07 057-09067-07
2 MAIN CABINET 014-12191-03 014-12191-03 014-12191-03
3 SPEAKER 049-01302-03 (2) 049-01302-03 (2) 049-01302-03 (2)
4 CRT ASSEMBLY A63AGD01X A63AFW36X A63AFW36X
5 DEFLECTION YOKE 095-04456-03 095-04456-05 095-04531
6 REAR CABINET 002-04084-11 002-04084-11 002-04084-11
7 MAIN MODULE 009-01831-01 009-01831-02 009-01831-02
8 REMOTE CONTROL 124-00212-35 124-00212-35 124-00212-35
