Zenith A20A22D - Ga3 27 V Traditional Console Exploded View

CM150 5-9 GA - EXPLODED VIEWS

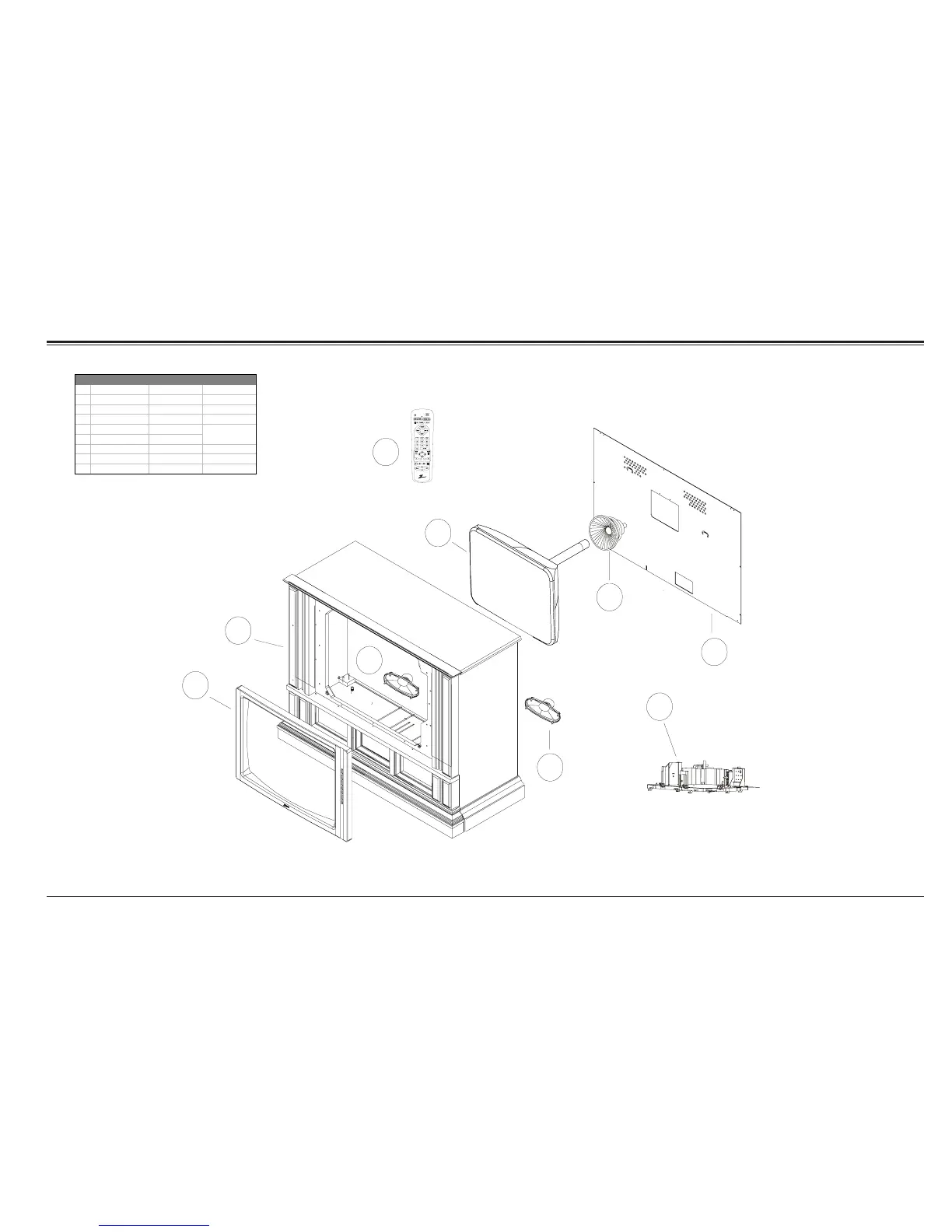

GA3 27V TRADITIONAL CONSOLE EXPLODED VIEW
REF DESCRIPTION A27A74R A27A74R8
1 FRONT CABINET 014-12326 014-12326
2 SPEAKER 049-01334-02 (2) 049-01334-02 (2)
3 KNOB ARRAY 046-10555 046-10555
4 IR LENS 192-00872 192-00872
5 CRT A SSEMBLY
A68AGD01X
6 DEFLECTION YOKE 095-03797-05
7 REAR CABINET 002-04084-13 002-04103-02
8 MAIN MODULE 009-01998 009-01998
9 REMOTE CONTROL 124-00212-35 124-00212-35
A-19058
2
3
MBR3447
124-00212-35
1
8
4
5
6
7
3
