CM154 5-2 XC - EXPLODED VIEWS
3
4
2
7
5
6
8
1

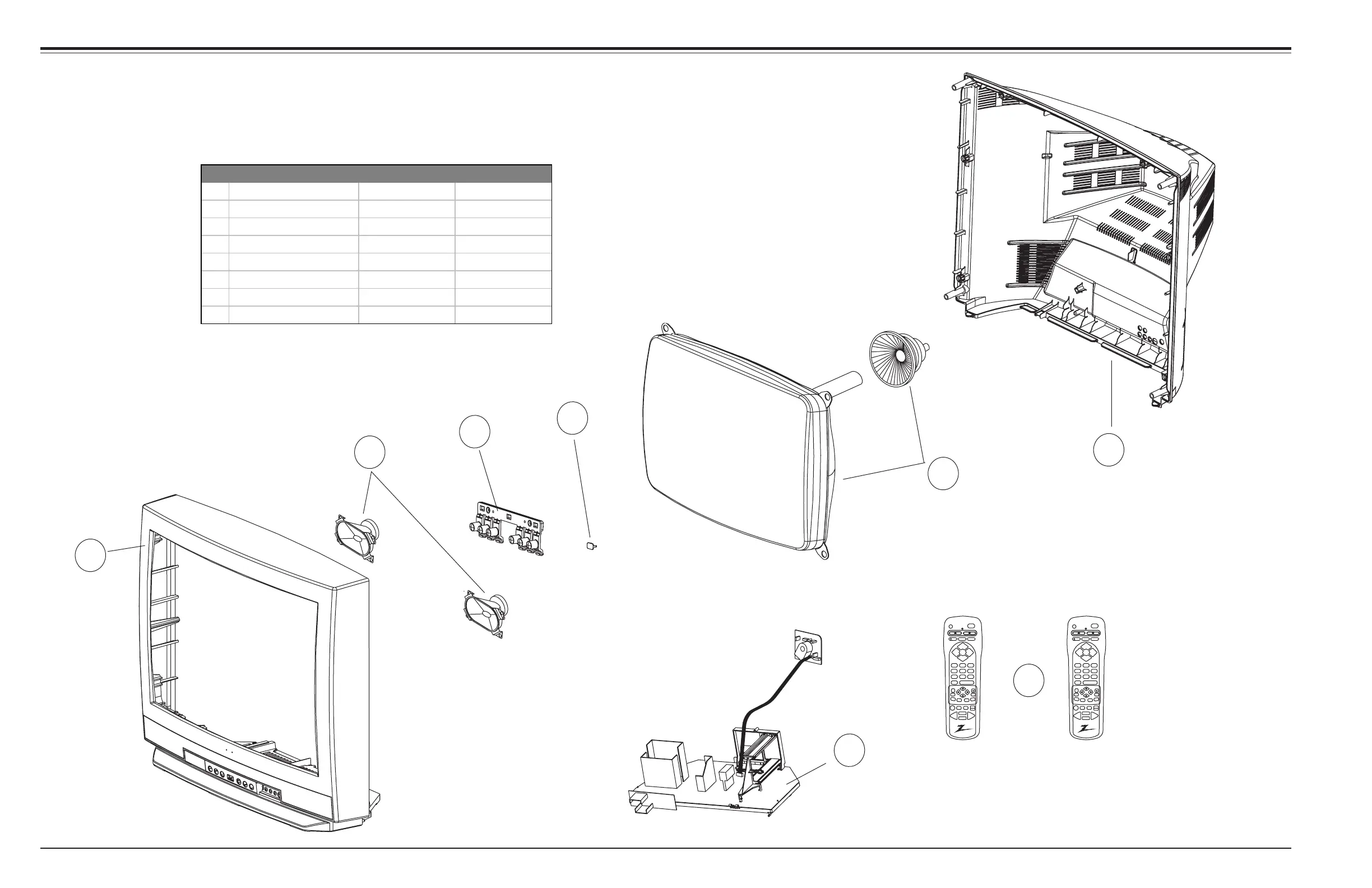

32V Table Top Exploded View
REF DESCRIPTION C32A26 C32A26T6
1 FRONT CABINET P014-123530-01 P014-12353-02
2 SPEAKER 049-01368-07 049-01368-07
3 KEYBORD P046-10594-01 P046-10594-02
4 IR LENS 992-10035 992-10035
5 CRT & YOKE ASSEMBLY A-19276 A-19276
6 REAR CABINET P014-12354-01 P014-12354-01
7 MAIN MODULE 009-02168 P009-02214
8 REMOTE CONTROL 124-00233-06 124-00233-06
PRG
POWER
VCR
CABLE
SURF
FLASHBK
MUTE
TV
AUX
CHANNEL
CHANNEL
VOLUME
3
2
1
4
5
6
7
8
9
0
ENTER
CLOCK
MENU
VCR+
PIP
ONCE
PIPCh
WEEKLY
DAILY
REVIEW
CC
FREEZ
RECORD
REWIND
PAUSE
TIMER
PLAY
FFWD
STOP
TV/VCR
SOURCE
ADD TIME
QUIT
CANCEL
VOLUME
MBR3457T
924-10084
PRG
POWER
VCR
CABLE
SURF
FLASHBK
MUTE
TV
AUX
CHANNEL
CHANNEL
VOLUME
3
2
1
4
5
6
7
8
9
0
ENTER
CLOCK
MENU
VCR+
PIP
ONCE
PIPCh
WEEKLY
DAILY
REVIEW
CC
FREEZ
RECORD
REWIND
PAUSE
TIMER
PLAY
FFWD
STOP
TV/VCR
SOURCE
ADD TIME
QUIT
CANCEL
VOLUME
MBR3458T
924-10085
