CM154 1-1 XC - OVERVIEW
OVERVIEW
SECTION 1
OVERVIEW
INTRODUCTION

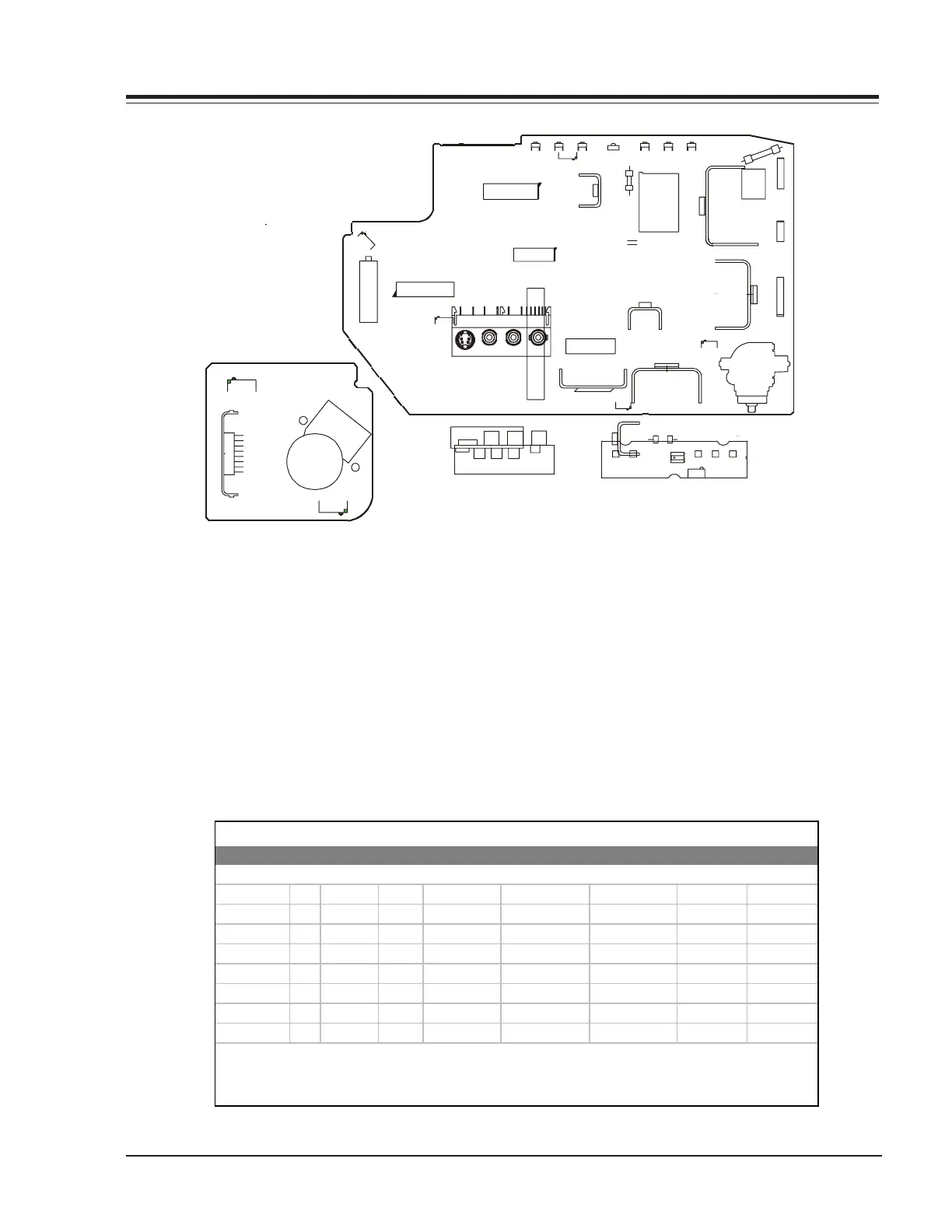

The XC chassis is a single sided printed circuit board (PCB) very similar to the CA Chassis. During the manufacturing
process, the microprocessor will be programmed for any added features. Additional plug in boards with Jack Packs will
be added to the chassis to accommodate the different features: Stereo, Mono, Video/Audio in, etc.
The ICX2200 integrated circuit (IC) handles all of the audio/video, sync, and drive processing. The IC6000 is the main
microprocessor and the IC6001 is the EEROM memory. The keyboard and IR detector are tied directly to the IC6000. The
IC2100 handles the vertical sweep. At power on, voltages for the vertical and video output circuit are derived from this
sweep circuit.
Feature and component information is listed below for each of the XC models.
ICX2200
W1300
IC1400
IC2500
IC6000
800IC
ICX2100
2F5
Tx3201
3202
3Y3
QX
3T8
IC3612
TX3601
LX3401
3R8
WT1200
G2
DAG1
2K6
1
1
EB
C
BCE
ICX3802
FX3602
2C5
R-OUT
A
-19268
FRONT JACK
YC
VIDEO RIGHT LEFT
ON/OFF
VOL-DWN
VOL-UP
CH-DWNCH-UP
MENU
SW1SW4
SW2
SW5
SW6 SW3
6K2
IR1
OU T
VCC
GN D
5F2
5C2
1
IC5100
CRT
G- OUT
B-OUT
GND
V1
GND
Y1
C1
S1
FX3401
MODEL SCR CABINE
T
J
ACKS PIP MODULE REMOTE MICRO OP GUIDE
C27A25 27 TableTop 6 1 Tuner PIP
009-2165
124-00233-05 905-10525
206-03590
C27A25T6
27 TableTop 6
1 Tuner PIP
809-10551
124-00233-05 905-10660
206-03590
C32A26
32 TableTop
6 2 Tuner PIP 009-02168 124-00233-06 905-10528
206-03591
C32A26T6
32 TableTop
62 Tuner PIP
P009-02214
124-00233-06 905-10661
206-03591
C36A26
36 TableTop
62 Tuner PIP
009-02170
124-00233-06 905-10528
206-03591
C36A26-8
36 TableTop
62 Tuner PIP
009-02170-01
124-00233-06 905-10528
206-03591
C36A26T6
36 TableTop
62 Tuner PIP
809-10558
124-00233-06 905-10661
206-03591
C36A26T6-8
32 Console
62 Tuner PIP
809-10559
124-00233-06 905-10661
206-03591
XC Chassis Model Information
MODULE LEVEL REPAIR
All Sets Feature: Picture-In-Picture, Digital Comb Filter, 530 lines of resolution, 6 A/V Jacks (plus 4 front jacks),
EZ Feature Package, MTS/SAP audio, SEQ Front Surround, Universal Remote, XDS and V-Chip Functionality.
