CM154 5-1 XC - EXPLODED VIEWS
3
4
2
7
5
6
1
8
SECTION 5

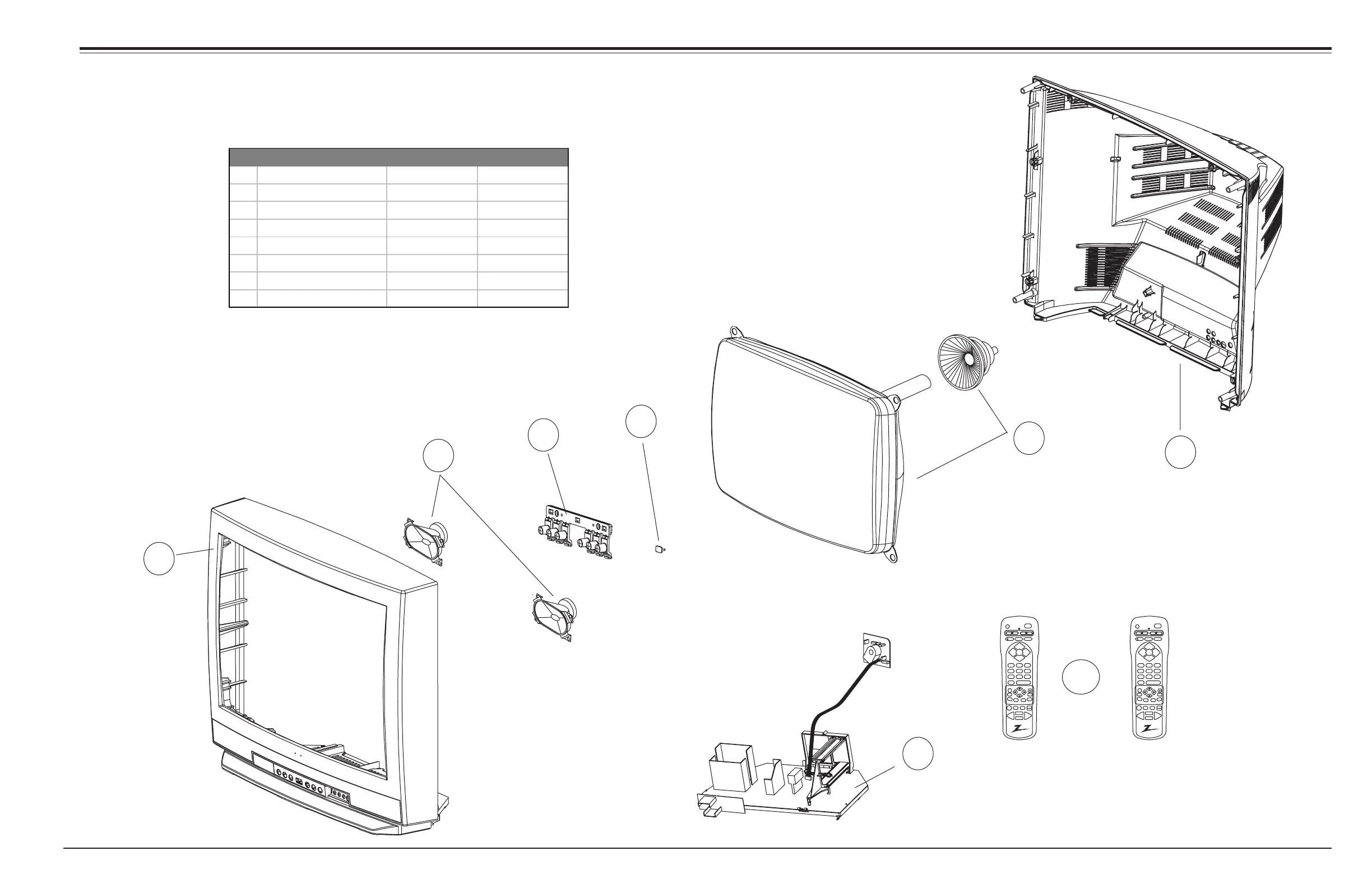

27V Table Top Exploded View
REF DESCRIPTION C27A25T C27A25T6
1 FRONT CABINET P014-12351-04 P014-12351-05
2 SPEAKER 049-1368-07 049-01368-07
3 KEYBORD P046-10594-01 P046-10594-02
4 IR LENS 922-10035 922-10035
5 CRT & YOKE ASSEMBLY A-19112 A-19112
6 REAR CABINET P014-12352-03 P014-12352-03
7 MAIN MODULE 009-2165 809-10051
8 REMOTE CONTROL 124-00233-05 124-00233-05
PRG
POWER
VCR
CABLE
SURF
FLASHBK
MUTE
TV
AUX
CHANNEL
CHANNEL
VOLUME
3
2
1
4
5
6
7
8
9
0
ENTER
CLOCK
MENU
VCR+
PIP
ONCE
PIPCh
WEEKLY
DAILY
REVIEW
CC
FREEZ
RECORD
REWIND
PAUSE
TIMER
PLAY
FFWD
STOP
TV/VCR
SOURCE
ADD TIME
QUIT
CANCEL
VOLUME
MBR3457T
924-10084
PRG
POWER
VCR
CABLE
SURF
FLASHBK
MUTE
TV
AUX
CHANNEL
CHANNEL
VOLUME
3
2
1
4
5
6
7
8
9
0
ENTER
CLOCK
MENU
VCR+
PIP
ONCE
PIPCh
WEEKLY
DAILY
REVIEW
CC
FREEZ
RECORD
REWIND
PAUSE
TIMER
PLAY
FFWD
STOP
TV/VCR
SOURCE
ADD TIME
QUIT
CANCEL
VOLUME
MBR3458T
924-10085
