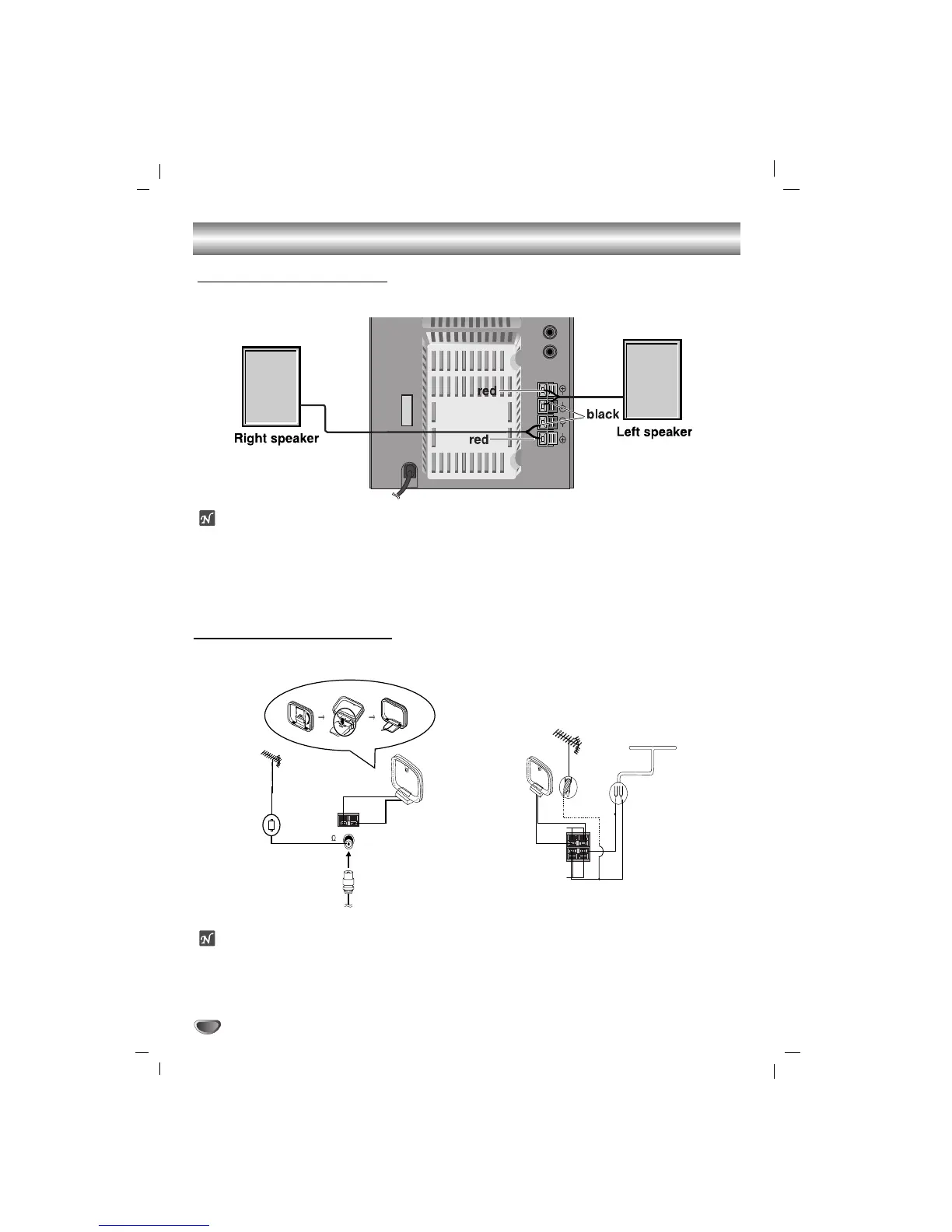

Connections
8
Speaker System Connection
Connect the speaker cords to the speaker terminals.
R
L
otes
• Be sure to match the speaker cord to the appropriate terminal on the components: + to + and – to –.
If the cords are reversed, the sound will be distorted and will lack base.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on
the speakers.
• Do not disassemble the front cover of supplied speaker.
otes
•To prevent noise pickup, keep the AM loop antenna away from the unit and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
Antenna (Aerial) Connections
Connect the supplied FM/AM antennas for listening to the radio.
AM (MW) loop
antenna (aerial)
(Supplied)
FM wire antenna
(supplied)
AM
FM 75
AM
FM
75 ohms
AM loop antenna (aerial)
(Supplied)
FM external
antenna (aerial)
(not supplied)
FM indoor antenna (aerial)
Position it for
the best reception
coaxial
cable
FM external
antenna (aerial)
(not supplied)
For AM (MW) reception, connect
the loop antenna (aerial) to the
terminal marked AM
