Preparation for Use

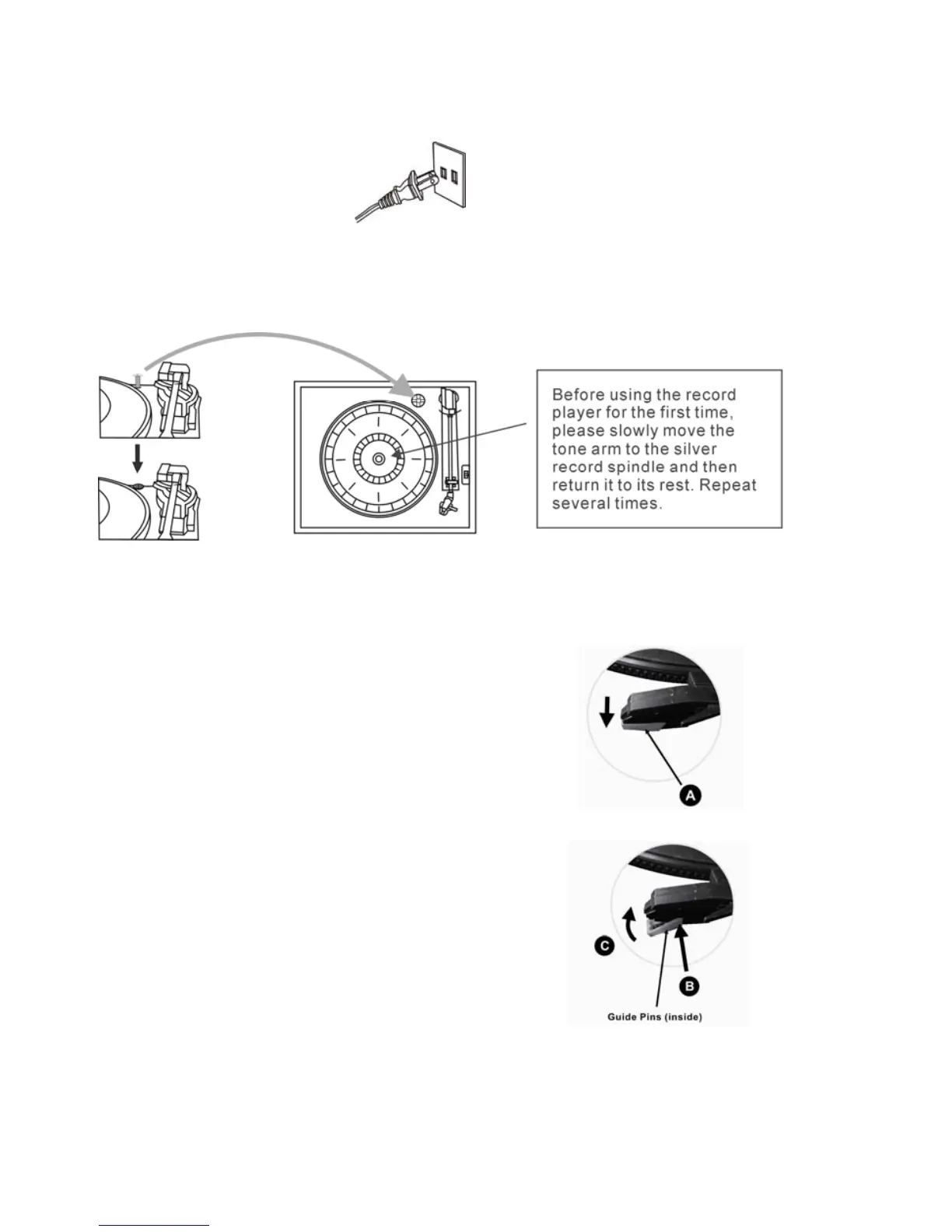

1. Connect the AC power cord to AC outlet.
2. The transit screw protects the phonograph chassis during transportation. If the speed of your
phonograph seems slow or you hear a rubbing sound, adjust the screw with a coin to correct the
balance of the turntable.
How to Replace the Turntable Stylus (Needle)
Removing old stylus
1. Set a screwdriver at the tip of the stylus and push
down in the direction “A”.
2. Remove the stylus by pulling it forward and down.
Installing a new stylus
1. Hold the tip of the stylus and insert the other edge
by pressing in the direction “B”.
2. Push up in the direction “C” until it locks at the tip.
