8

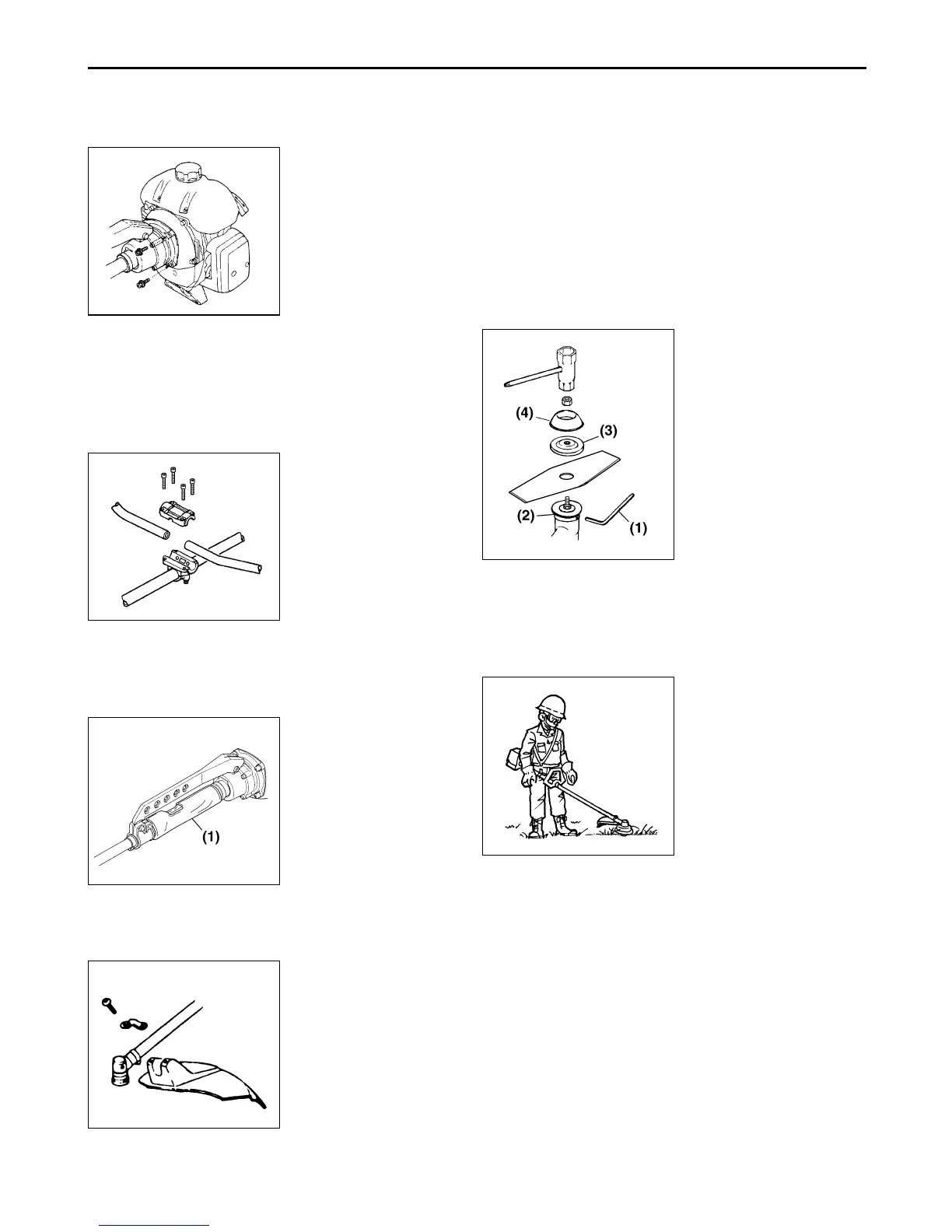

■ INSTALLING BLADE
Remove the guard skirt of debris guard, when using
metal blade.
1. Put the angled bar(1) into the side holes of the inner
holder and the gearcase.
2. Remove the nut(Left-handed) and the outer holder(3)
from the gearshaft.
3. Put the blade onto the inner holder(2). Make the
marked side face the holder.
4. Put the outer holder(3) onto the gearshaft making the
recessed side face the blade.
5. Fasten the blade by the nut and the cover(4).
(1) Angled bar
(2) Inner holder
(3) Outer holder
(4) Cover
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit balances with head
aparting from the ground when using it.
SE5
■ ENGINE
• Using attached 4 socket screws, secure the
connection firmly with equal force.
■ HANDLE
1. Loosen the 4 bolts on the upper cap and insert the
handles equally. Retighten the bolts.
2. Put the handle assembly into the bracket and put the
upper cap over it. Tighten the cap securely.
■ PROTECTOR
Wrap the protector around the outer pipe as shown in
the figure, and fasten the magic fastener.
(1) Protector
■ BLADE GUARD
Attach the guard on the outer pipe. Fix it with 2 bolts.
5. Set up
SE1
SE2
SE3
SE4
SE6
