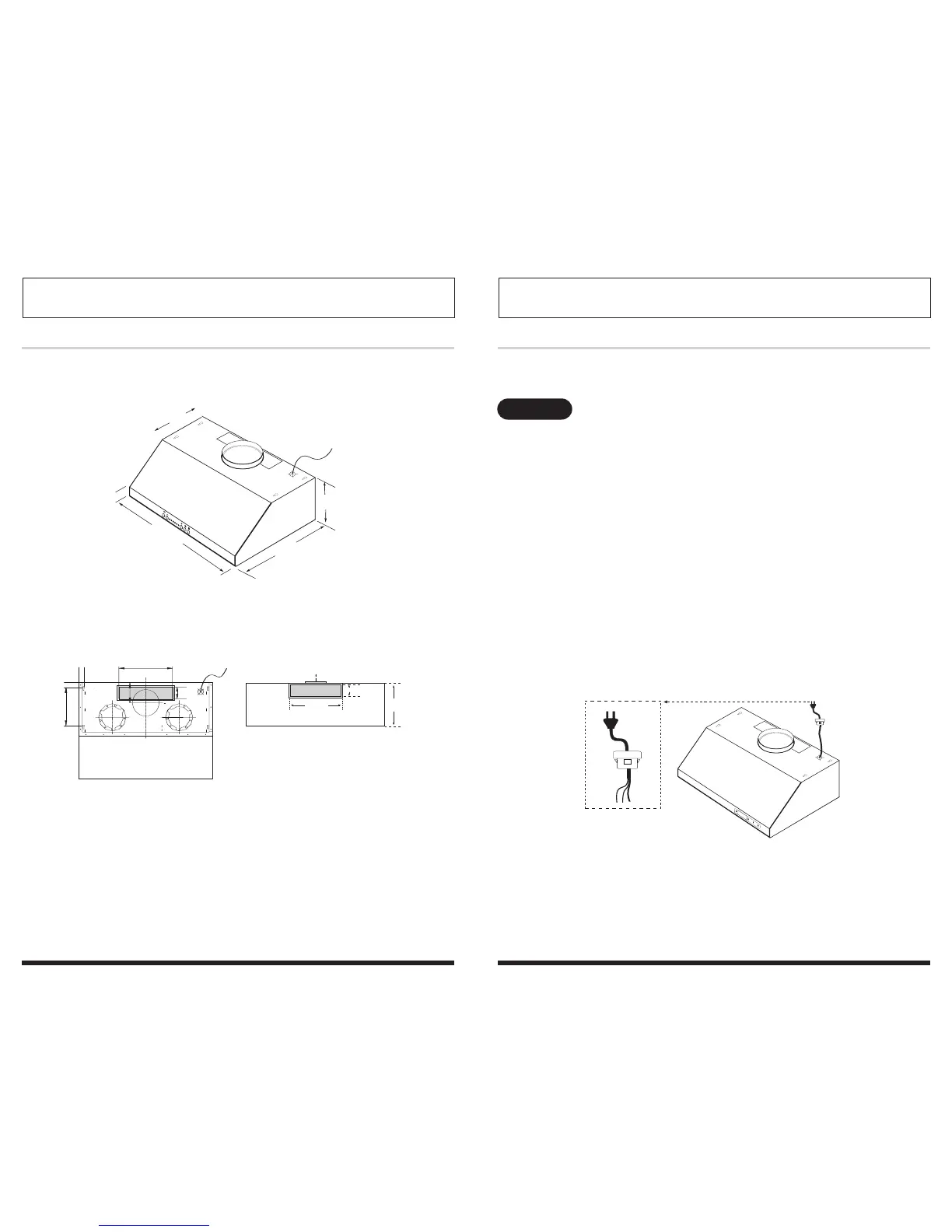

Zephyr AK7000 User Manual

INSTALLATION
SPECIFICATIONS
10"
22"
12"
4"
30"
36"
CL
3-1/4"
10"
10"
TOP VIEW REAR VIEW
10"
8-5/8"
4-1/2"
3-1/4"
1-1/8"
1"
1/2" Elec K.O.
1/2" Elec K.O.
10"
CL
3-1/4"
10"
10"
TOP VIEW REAR VIEW
10"
8-5/8"
4-1/2"
3-1/4"
1-1/8"
1"
1/2" Elec K.O.
1/2" Elec K.O.
Models: AK7000, AK7036, AK7042 Page 3
INSTALLATION
MOUNTING THE RANGEHOOD
ELECTRICAL
All Electrical work must by performed by qualified electrician or person with similar technical
know how and background.
For personal safety, remove house fuse or open circuit breaker before beginning installation.
Do not use extension cord or adapter plug with this appliance.
Follow National electrical codes or prevailing local codes and ordinances.
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply., and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.
Cable Lock:
A cable locking connector (not supplied) might also be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary.
Cable Lock
WARNING
Models: AK7000, AK7036, AK7042 Page 4

Zephyr AK7000 Specifications

General

Brand	Zephyr
Model	AK7000
Category	Ventilation Hood
Language	English
