Zephyr Monsoon Mini User Manual

10
www.zephyronline.com
Installation – Cabinet Preparation & Installation
1.Removeallpackingmaterialsandprotectivelmpriortoinstallation.
Use caution during installation to prevent scratches or damage to the
stainless steel.

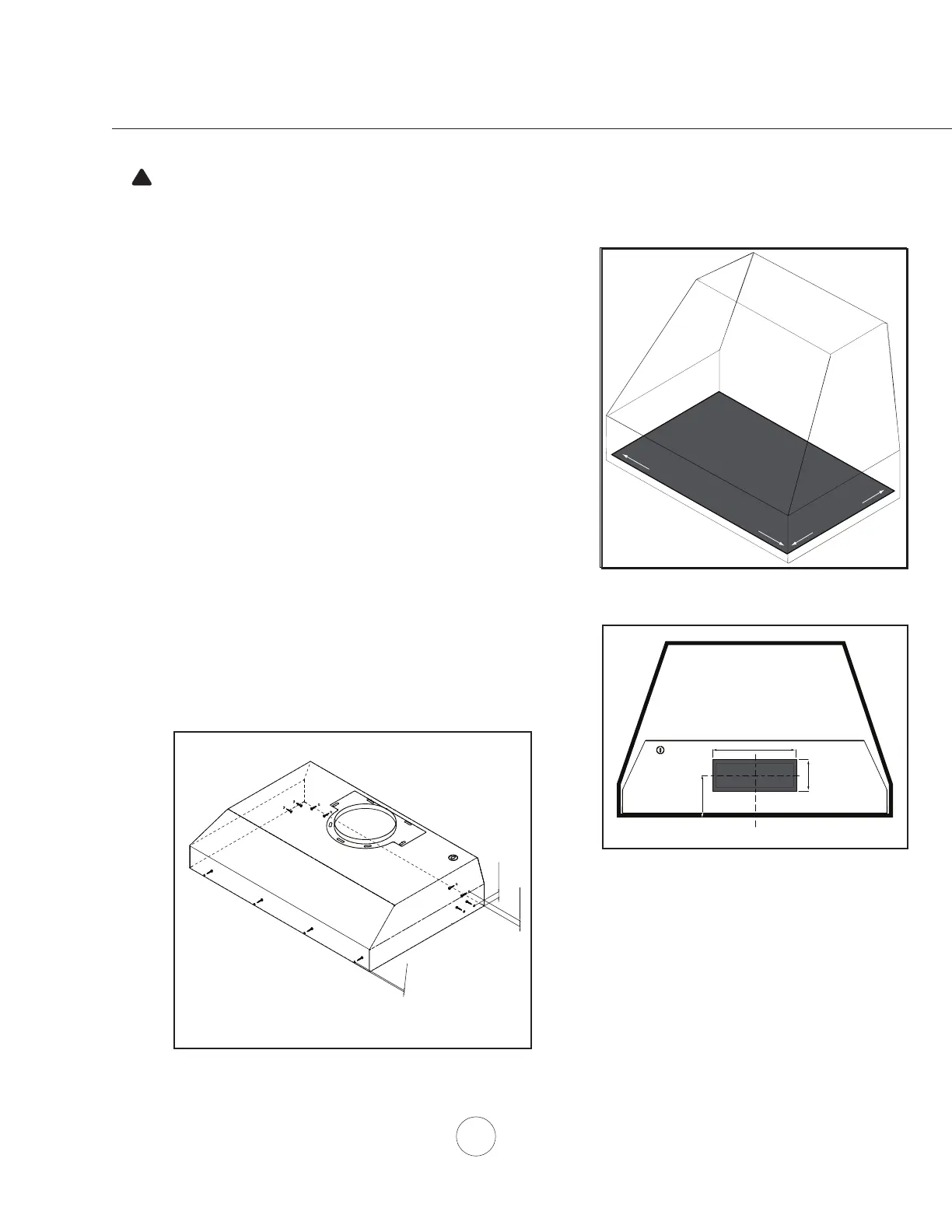

2. Cut out an opening in the bottom of the cabinet by following the
dimensions in FIG. 1. If ducting the one piece liner horizontally, also
cutoutanopeninginthebackofthecabinet(ifapplicable).FIG.2.
3. Prepare liner for installation into cabinet by following the steps on
page 11. Continue to Step 4 after preparation is completed.
4. Lift liner into bottom opening of cabinet and secure to interior of
cabinetusing(12)#8x1/2”stainlesssteelscrews;(4)screwsinthe
frontand(4)screwsinthesidesand(4)screwsintheback.FIG.3.
WARNING: Make sure the surface you are securing the liner to
is capable of holding the weight of AK91. Failure to do so may
cause personal injury or damage to cooking surface or counter.
5. Finalizeinstallationofelectricalandductwork.Sealductworkwith
certiedaluminumducttape.Poweronliner,checkforleaksaround
duct tape and verify proper operation.
NOTE: If access to top of liner is not available after installation,
electricalandductworkconnectionmayneedtobemadepriorto
installing the liner.
CAUTION: At least two installers are required
due to the weight and size of the liner.
!
If possible, power up and test all functions prior to installation.
28
-
1/
2
” or
34-
1
/2
”
1
8
-
1
/
4
”
c
ut
ou
t
(AK9128)
(AK9134)
4”
11”
4”
C/L
CABINET BACK
3-1/4in x 10in Rectangular
FIG. 1
FIG. 2
1/4”
1-
1/4
”
1/4”
3/4”
3/4”
FIG. 3
