Zephyr Pisa ZPI-E30BG - Hood Specifications

12
Pisa Use, Care, and Installation Guide
PISA
UNDERCABINET
CORE

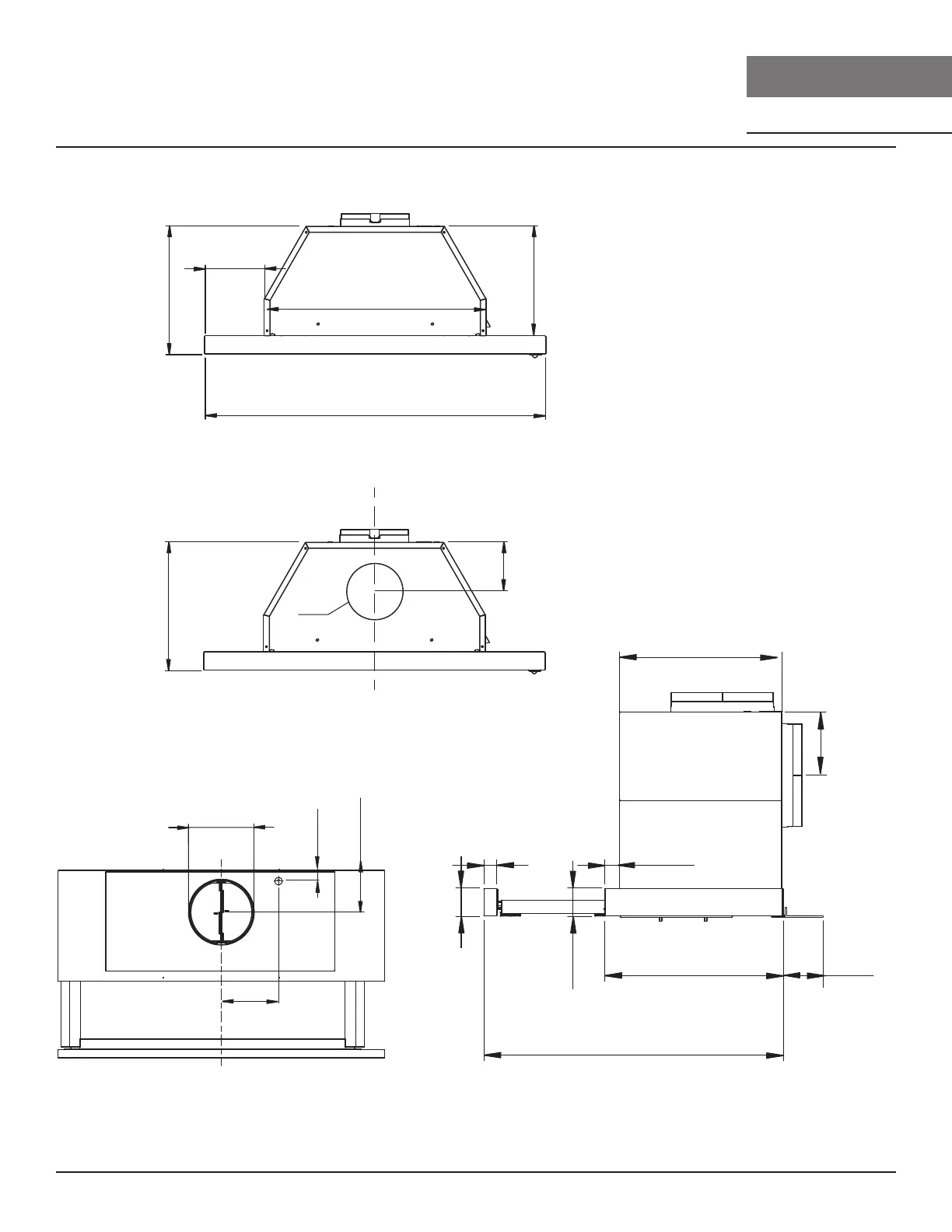

Installation Instructions
Ů
2-3/16” (24”)
5-3/16” (30”)
8-3/16” (36”)
11-1/4”
19-9/16”
9-9/16”
23-7/8” (24”), 29-7/8” (30”), 35-7/8” (36”)
FRONT
11-1/4”
Ø6”
3-7/16”
C/L
BACK
Ø6”
C/L
3/4”
3-7/16”
4-15/16”
TOP SIDE
3-7/16”
9-7/8”
1-1/8”
13/16”
1-1/2”
1-11/16”
3/8”-
2-1/4”*
*adjustable
rear filler
panel
11-1/8”
11-15/16” to 18-3/4”
Closed Open
