Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
ACT™ Conversion
Model: Typhoon AK21

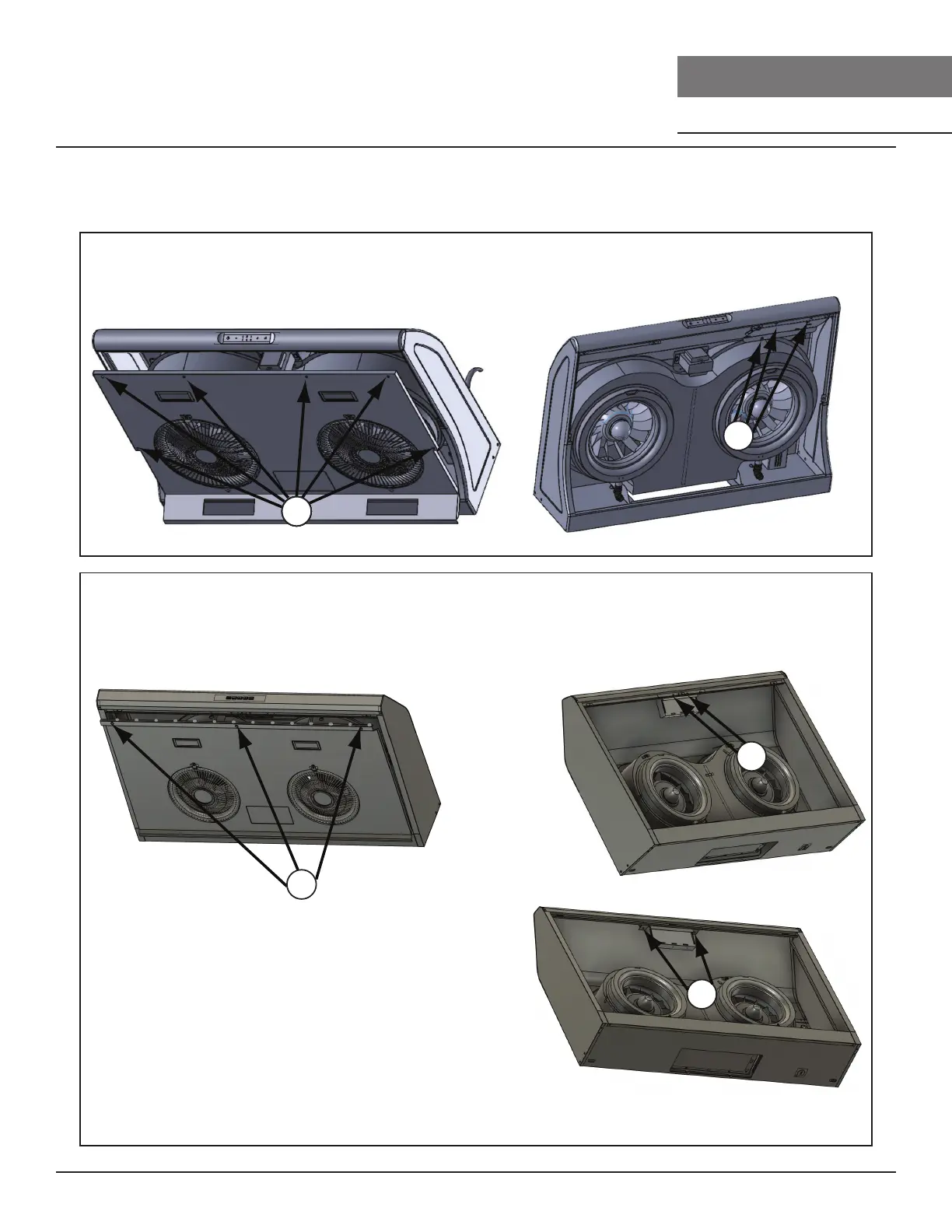

1. Remove bottom panel by 6 screws (FIG. D1) and disconnect LED light quick connectors.
2. Remove 3 screws securing PC board plate to access PC board (FIG. D2).
Model: Hurricane AK25
2. Remove PC board plate by 2 screws (FIG. D4).
3. Remove 2 screws securing PC board assembly to access PC board (FIG. D5).
1. Remove bottom panel by 3 screws (FIG. D3) and disconnect light socket connectors.
NOTE: Take care when removing PC board as there are many wires connected to the board.
FIG. D1
A
FIG. D2
AA
Accessing PC Board Instructions
FIG. D3
FIG. D4
FIG. D5

Zephyr Typhoon AK2136CS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted, external
Temperature Sensor	no
Number of Fan Speeds	6
CFM	850 cubic feet per minute
Sones	5 sones
Control Type	touch pad
Delay Start	yes
Interior Light	yes
Remote Control	no
Voltage	120 volts

Weight and Dimensions

Depth	20 3/4 inches
Height	7 7/8 inches
Width	35 3/4 inches
Net Weight	40.5 pounds
