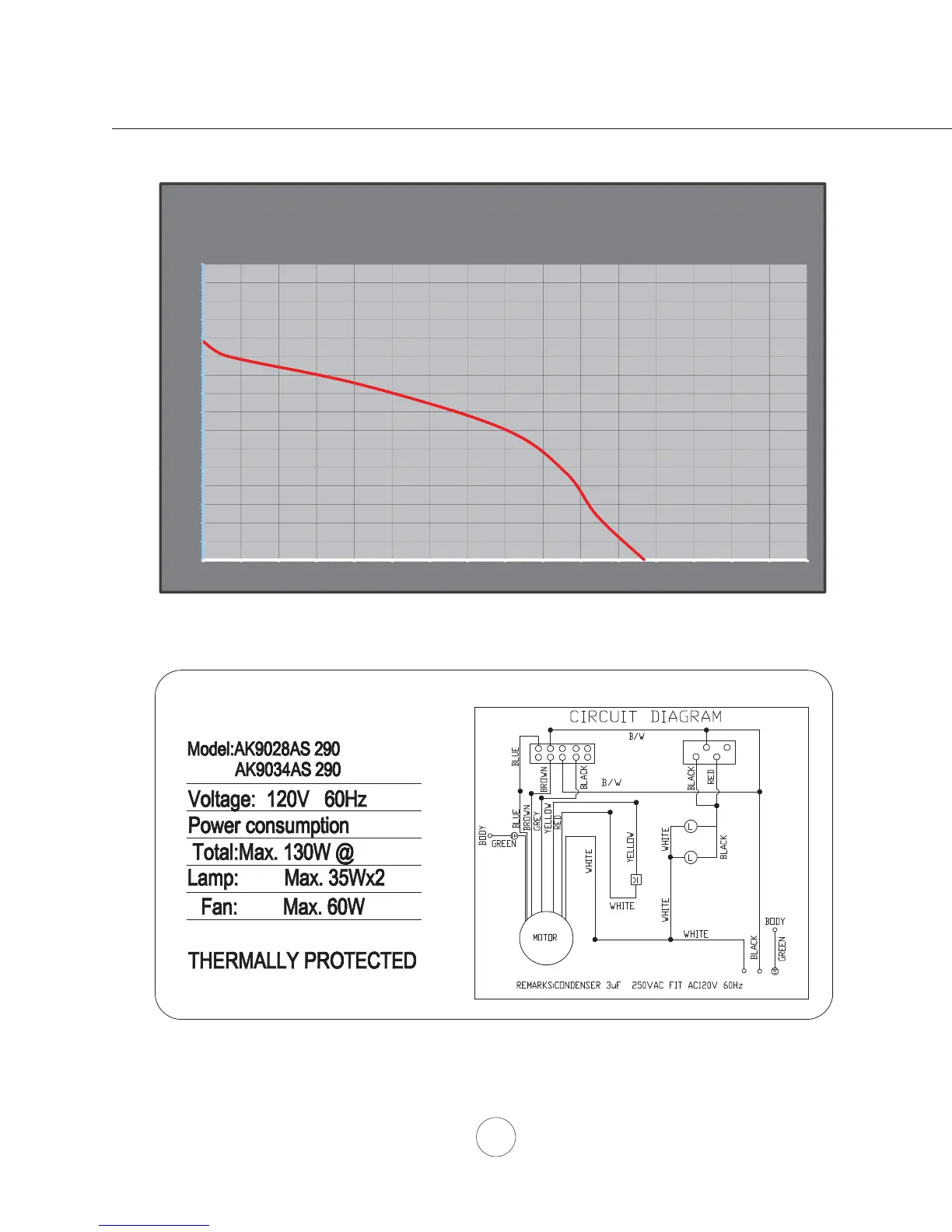

Diagrams – Fan Curve & Wiring
025
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
Pressure (inAq)
Blower Fan Curve
Model: AK90-290 (Vortex)
AC input: 120V - 60Hz
Outlet Diameter: 6in
0.00
0.05
0.10
0.15
0.20
0
.
25
0 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400
Flow rate (CFM)
1.5A
18
