Zephyr Vortex AK9028AS - Circuit Diagram

19

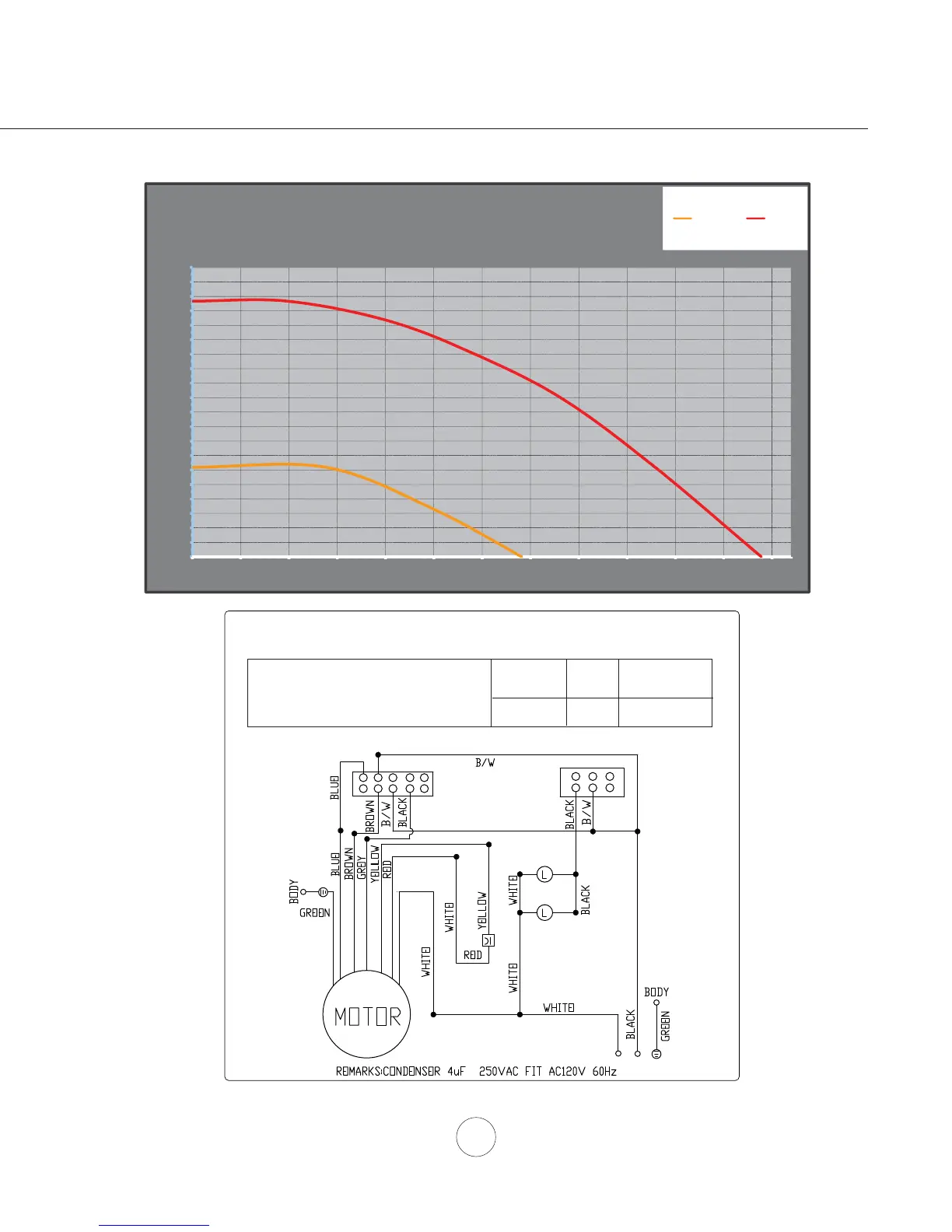

Diagrams – Fan Curve & Wiring
VOLTS HZ MAX AMPS
120 60 1.2
AK9028AS-ES
AK9034AS-ES
CIRCUIT DIAGRAM
USE ONLY 13W, GU24 FLUORESCENT LIGHT BULBS. MODEL SPS T3 13GUS.
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.40
1.50
1.60
1.70
1.80
1.90
2.00
0 25 50 75 100 125 150 175 200 225 250 275 300
Pressure (inAq)
Flow rate (CFM)
Working Speed Max. Speed
Fan Curve
Model: AK90-ES (Vortex ES)
AC Input: 120V, 60Hz
Outlet Diameter: 6in
