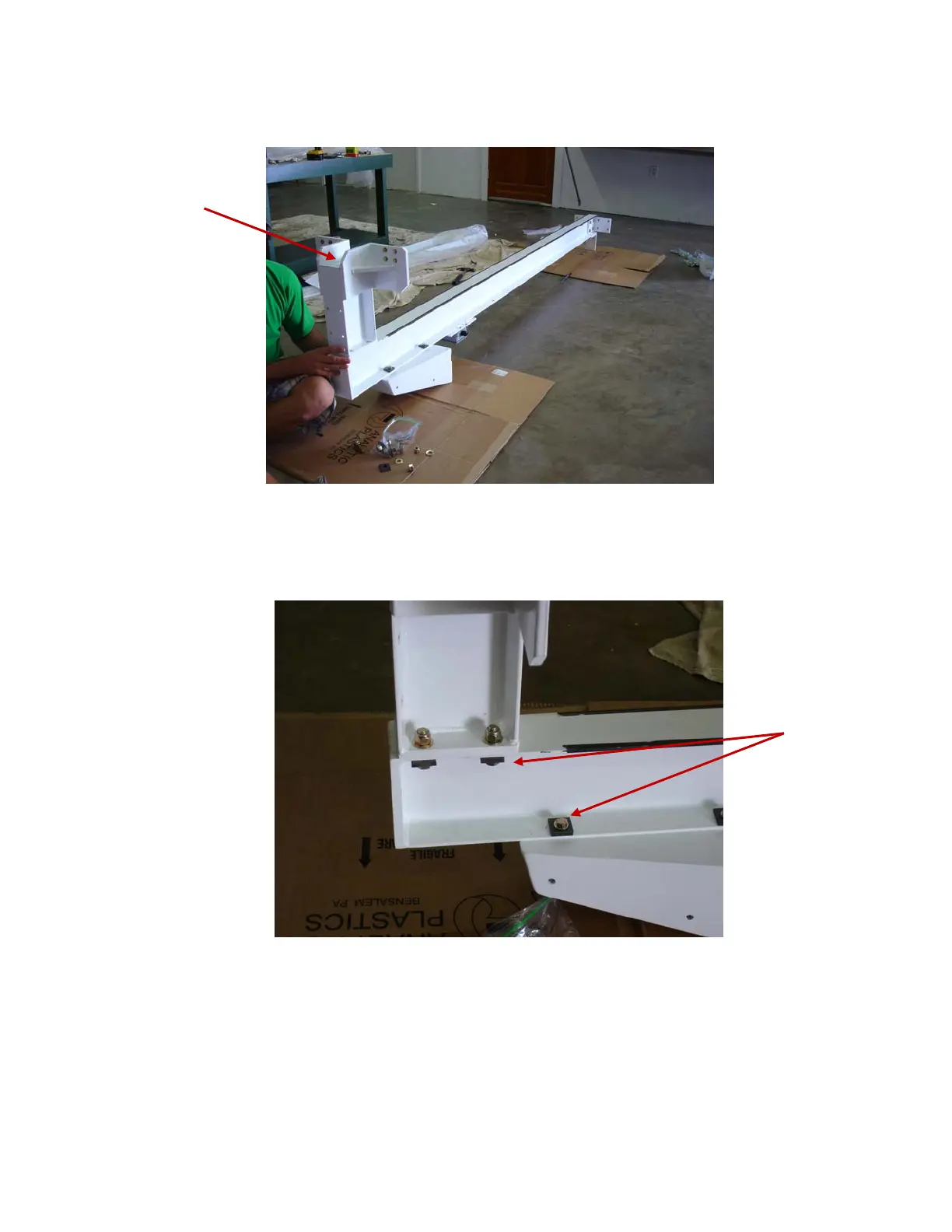

o Flip the I beam over and attach the Hoist Hanging Weldment to it
o Use the beveled washers on the back surface of the beam flange as shown.
Hoist Hanging
Weldment
Beveled Washers
