Power Pack and Charging
5.3
Modular Power Pack System - Removal and
Installation (if equipped)
Dependent upon the specification of the motorcycle when it was
originally ordered from the factory, some Zero FX and FXS
motorcycles feature a modular power pack system that allows a
power pack to be quickly changed.
The motorcycle may have either a single power pack or two
power packs installed.This allows the rider to charge one power
pack while using another, or extend the range of the motorcycle
with two power packs installed.
Note: Additional power pack modules can be purchased from
Zero Motorcycles.
Removing the power pack(s)
1. Remove the key from the key switch and safely support the
motorcycle.

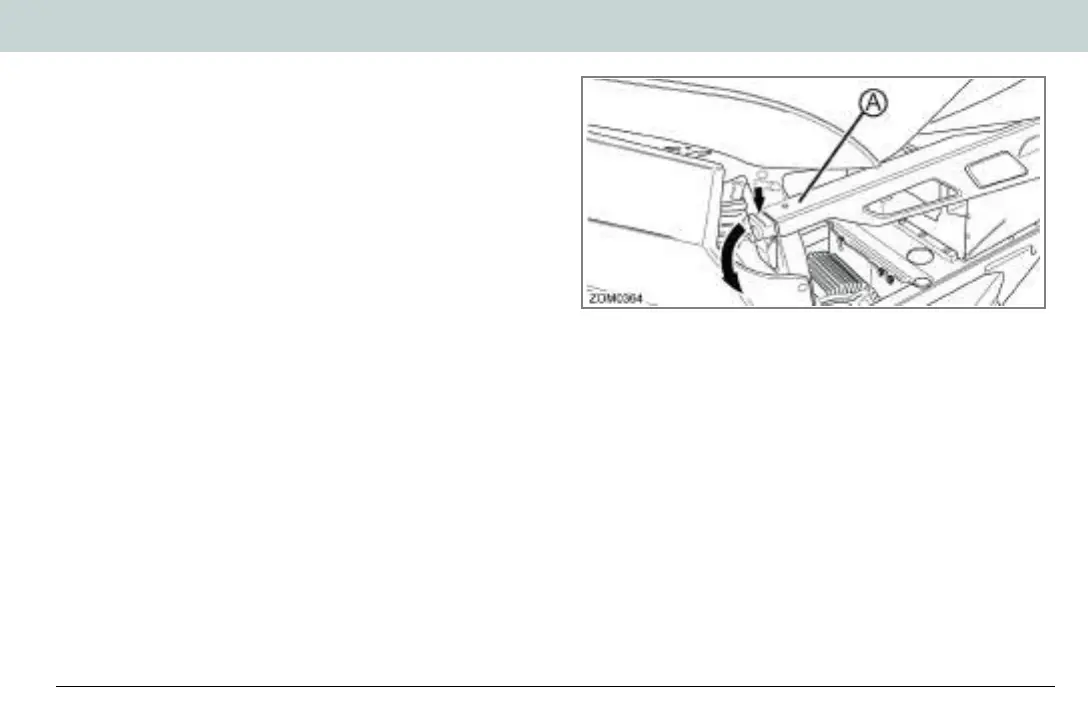

2. Grasp the top of the key lock latch (see arrows) and pull
downward to unlock the power pack rail.
3. Pull the power pack rail (A) away from the motorcycle.
4. Using a firm grip, slide the power pack out of the frame.
Note: If two power packs are installed, the pack closest to the
rear wheel must be removed first.
Note: If necessary, assist removal by also pushing power
pack from the opposite side of the motorcycle.
Note: Each power pack weighs 42 lbs (19 kg).
5. Remove the second power pack if required.
WARNING! Opening of the power pack is for trained Zero
Motorcycles technicians. Please be aware that incorrect
handling of a Zero power pack can be dangerous. DO NOT
OPEN!
