Zero Zone Highlight MERCHANDISER RHCC30 - X83; off Cycle Defrost or Satellite Wiring - Medium Temp

Illustrations - Off-Cycle Defrost or Satellite Wiring • 45
ILLUSTRATIONS
Off-Cycle Defrost or Satellite Wiring








 

 

  
   
   
 
  
   
 

 


ORG 18 GA
ORG 18 GA
LIGHTS
(SEE AUX
DIAGRA M
ORG OR
BLK
WHT
ABCDEFGH1234 5
BLK WHT
BLK WHT
LIGHT S (115V)
FANS
(115V)
P
OPTIONA L
CONDENSATE
PUMP
115V-1-60
OPTIONAL
CONDENSATE EVAPORATOR 115V-1-60
MOUNTED ON TOP OF CA SE
PLUGGED INTO CONDENSING UNIT
OR POWERED BY CUSTOMER
WHT BLK
OPTIONAL
TO TB 4
TO TB G
0PTIONAL
SOLENOID V ALV E
120VAC
WHT/BLU 18 GA
BLU 18 GA
RECEPTACLE (115V)
WHT
BLK
OPTIONAL
TEMPERA TURE CONTROL
TO SENSE 38° AIR
SET DIAL TO 34°
AND THE SLIDER TO A
6° DIFFERENTIAL
RED /YELLOW
CLOSE ON RISE
OPEN ON DROP
BLU 18 GA
REPRESENTS EGRESS THROUGH CASE
LIGHT SWITCH
REPRESENTS EGRESS THROUGH CA SE
FANS
M M
BLU ( RIBBED )
BLU ( SMOOTH)
GRD
ANTI-SWEAT HEAT (115V)
WHT
BLK
MULLION
R ED
WHITE W/R ED
BLK
WHT LIQUIDE LINE SOLENOID VALVE
(SEE V ALVE F OR V OLTAGE)

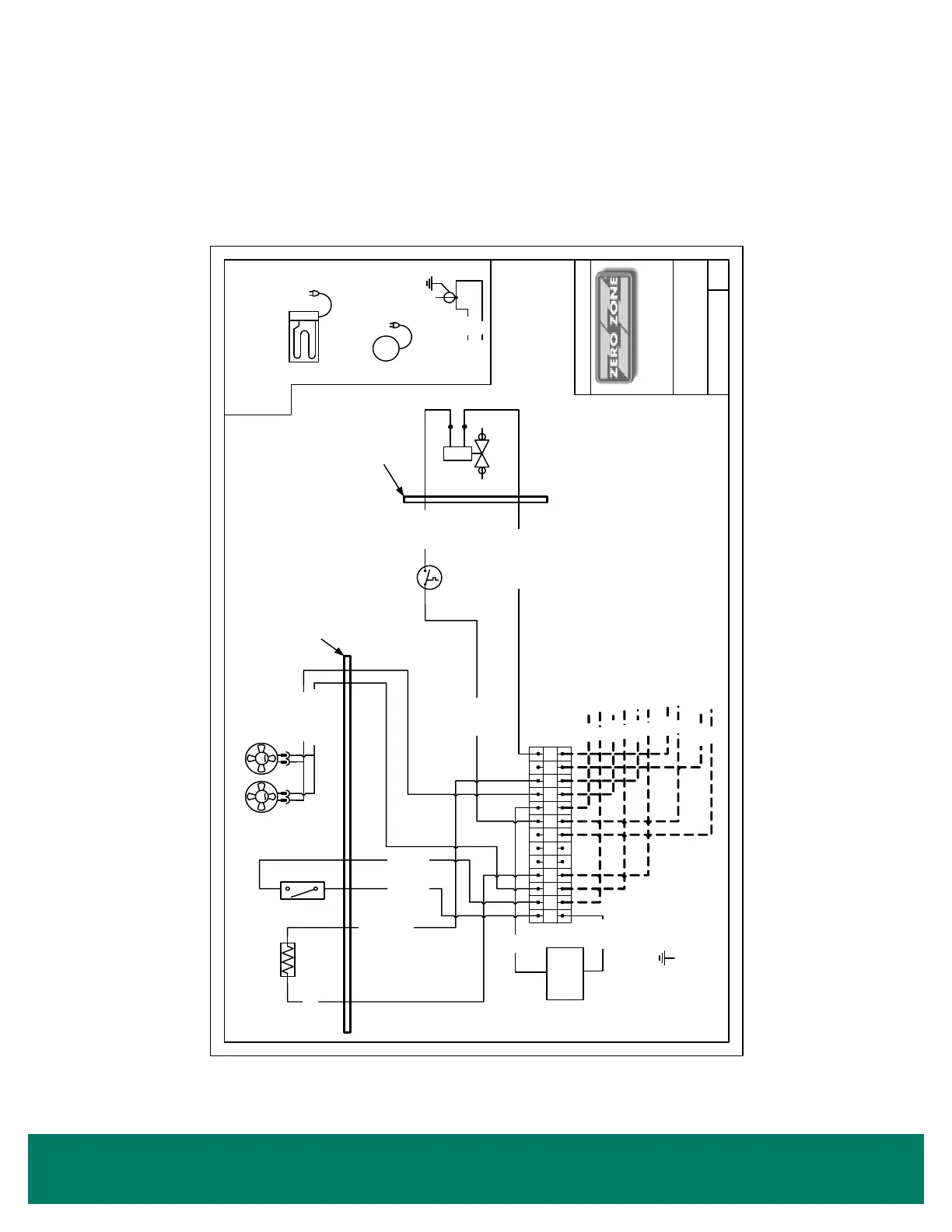

FIGURE 31: MEDIUM TEMP
