Zero Zone Highlight MERCHANDISER RHCC30 - Electric Defrost - Low;Medium Temp

48 • Illustrations - Electric Defrost - Low/Medium Temp
ILLUSTRATIONS
Electric Defrost - Low/Medium Temp

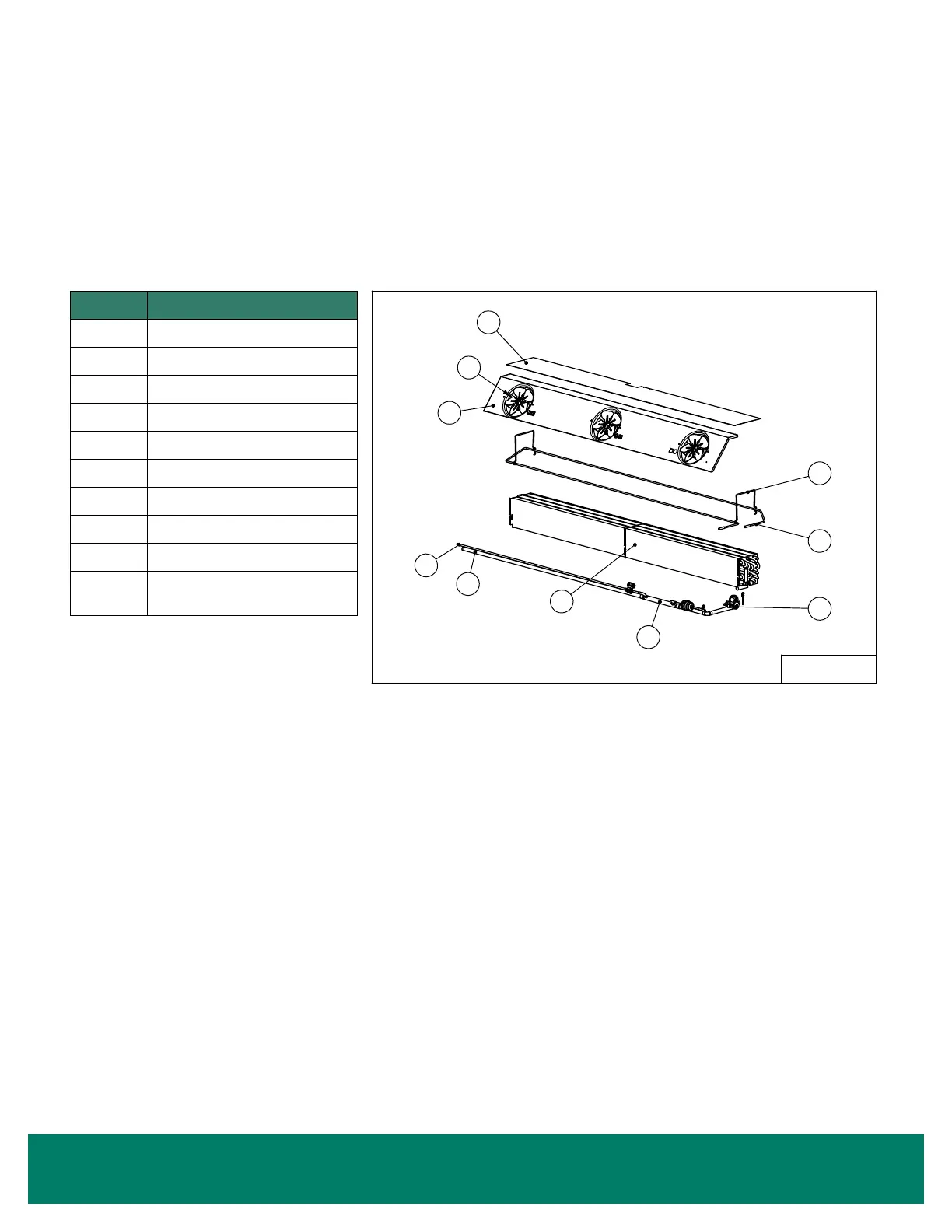

FIGURE 34: 30" ELECTRIC
ITEM # PART NAME
1 COIL COVER
2 FAN
3 LIQUID LINE
4 SUCTION LINE
5 FAN HOUSING
6 HEAT EXCHANGER
7 EXPANSION VALVE
*8 HEATING ELEMENT
*9 HEATER CLIP
10
DEFROST TERMINATION
PROBE LOCATION
*Low Temp Only





































































    
    
  
  
  
  
   
     
   
  

     
 
