30 • Illustrations - T-Strip
ILLUSTRATIONS

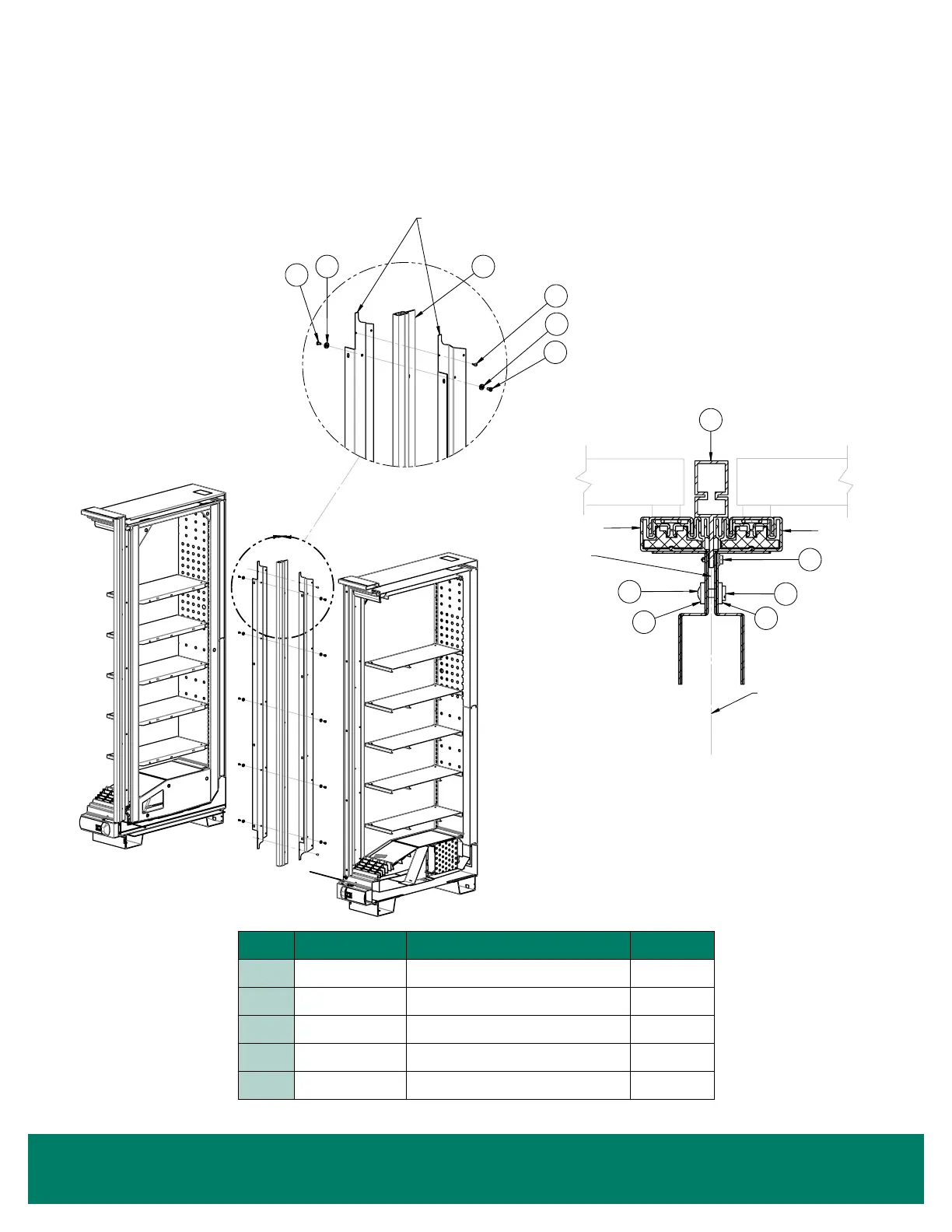

FIGURE 13
T-Strip
Refer back to page 7
ITEM PART NUMBER DESCRIPTION QUANTITY
1 64-0145 #10-24 x 1/2" Slt Truss Hd Screw 5
2 64-0146 #10-24 Barrel Bolt Slotted 5
3 64-0207 #8 x 1/2 Hex Head Screw 2
4 64-0512 1/4" Flat Washer 10
5 37-0410 Trim Vert Center Extrusion 1
CAULK
END BRACKETS ARE FACTORY INSTALLED.
EXPLODED FOR CLARITY.
5
3
1
4
4
2
CAULK EDGE BEFORE INSERTING
SECTION F-F
5
3
2
4
4
1
DOOR
END MULLION
