Zero88 Frog - Technical Specification; Introduction; Power Supply

Technical
Specification
Introduction
This chapter provides a summary of
the various connectors and ports on
the rear panel of the Frog-Box:
•
Power Supply
• Parallel Port
• Video Output
•
Keyboard
•
Mouse
• Audio Input
• SMPTE
• MIDI
• Remote Switches
•
DMX Output
•
Network
Power Supply
An inline external power supply unit is
used to power the unit.
Mains Voltage:
230V +10%, -17% (190V - 253V)
120V +10%, -17% (100V - 132V)
Supply 5V @ 5A and 12V @ 1A
Parallel Port
A 25 pin D type female connector.
Video Output
15 pin D type SVGA connector.
Keyboard
PC standard UK keyboard via PS/2
connector.
Mouse
PS/2 or compatible mouse via mini DIN
(PS/2) connector.
Frog Box 73-749-00 Issue 4 6 - 1

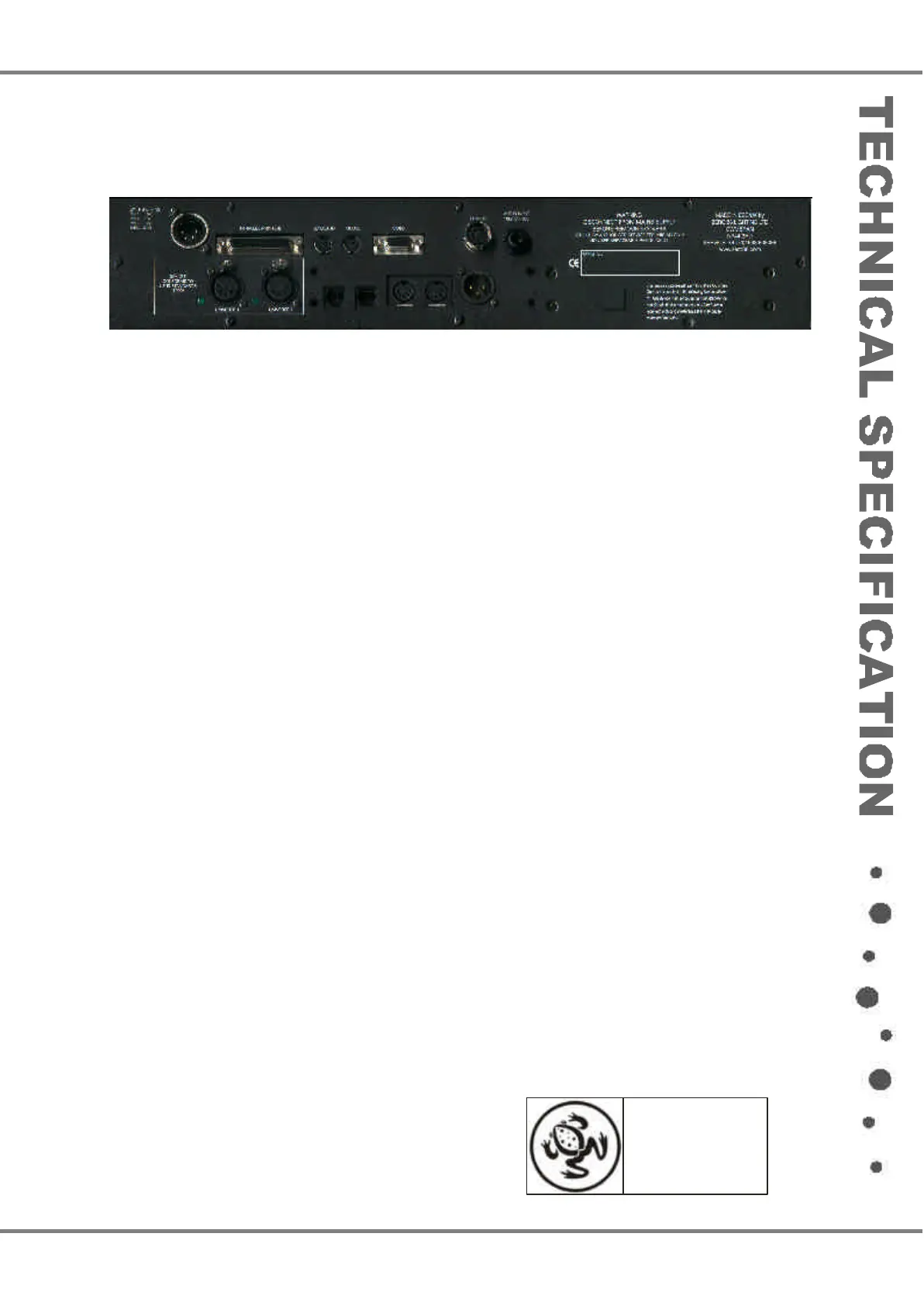

Figure 6 - 1: Frog-Box Rear Panel
For news, views and
latest software visit
our dedicated Frog
web site at
www.frogsupport.com
