123
ELECTRO-HYDRAULIC SYSTEM
F_02_162 F_02_188

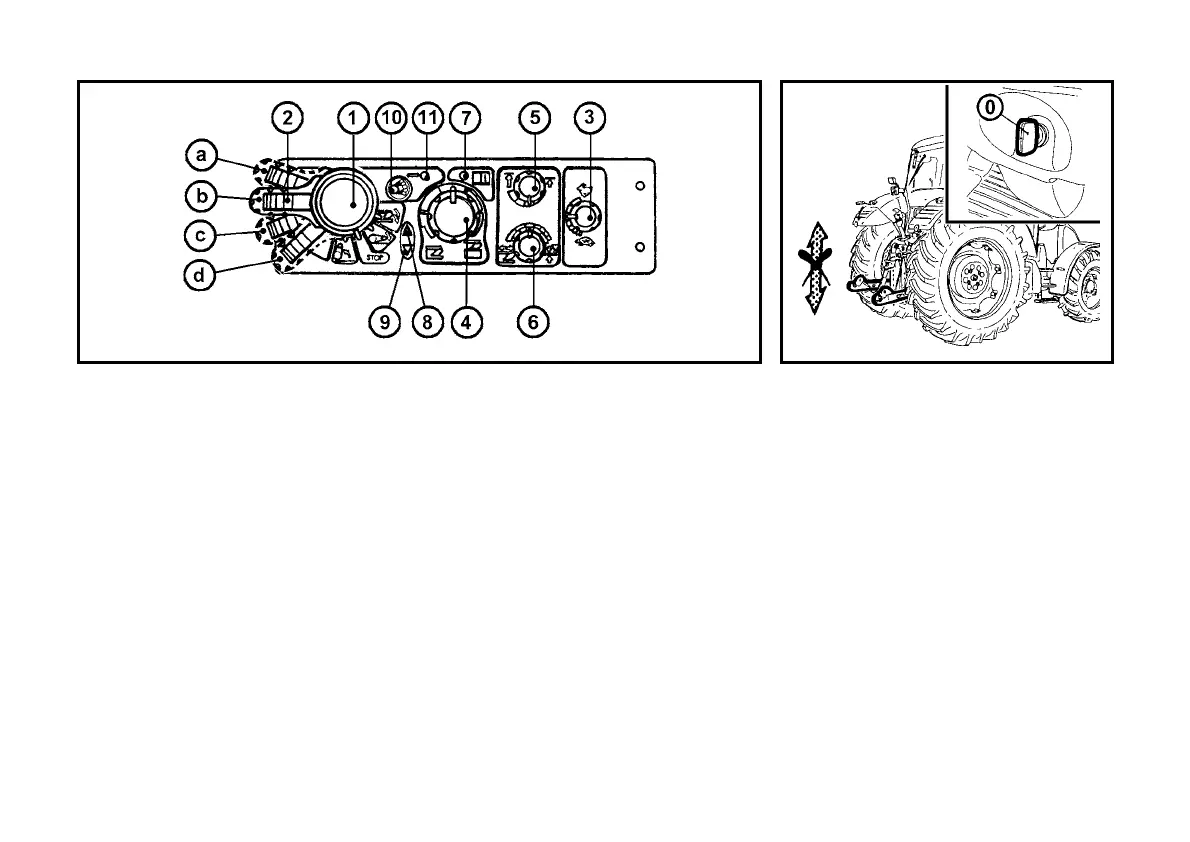

CONTROL ELEMENT FUNCTIONS
1. Lifting switch
a - Transport, lifting
b - STOP
c - Regularity of lowering (working)
d - Free position, fast sinking- automatic return of lever to (c) position by a spring
2. Blocking (in transport position)
3. Lowering speed
4. Setting the position of lifting device
5. Upper position restriction
6. Smooth setting - of manual control
- automatic control
7. LED - diagnostic
8. LED – lifting
9. LED – lowering
10. Engaging compensator (softening vibrations)
11. LED – softening vibrations engaged
EQUIPMENT “OFF”
Electric installation deactivated with the
key of the switching box. The electronic
system is off, the lifting device is blocked.
