CONTROLLING FRONT THREE-POINT HITCH

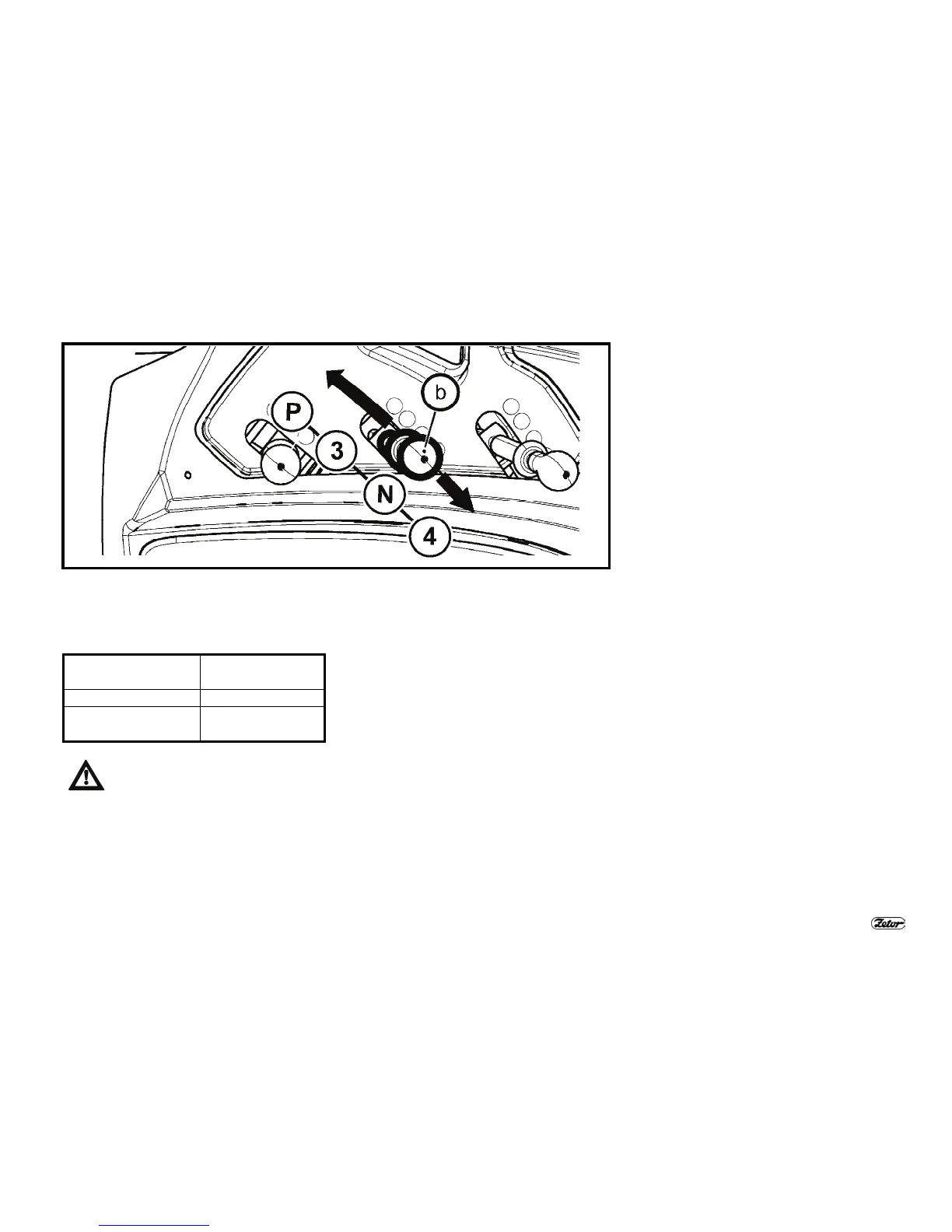

The hitch is equipped with two single acting hydraulic cylinders which are supplied with oil
from an additional hydraulic distributor. To lift or lower, use lever (b) of the additional dis-
tributor.
3 position
lifting
4 position
lowering
N position
locking the hitch
P position
not to be used
If the tractor is equipped with front three-point hitch, use lever (b) to control it. When the front three-point hitch is used,
quick couplers cannot be connected as they are pressured together with the front three-point hitch! When you finish using
the front three-point hitch and want to use the section with quick couplers 3 and 4 with connection to the front three-point
hitch, raise the arms of the front three-point hitch to the transport position and move the front three-point hitch lever to the
„locked“ position.
