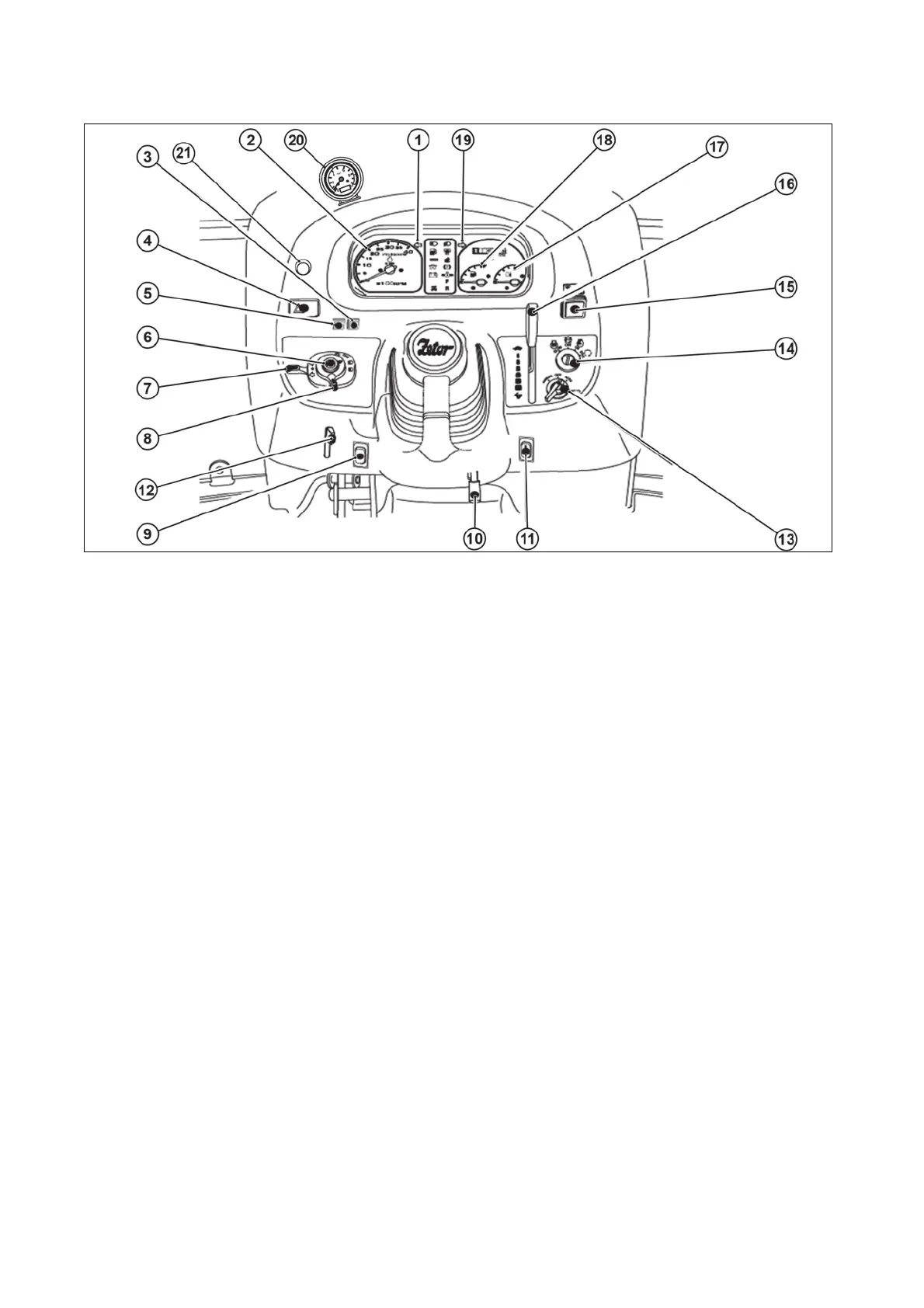

Instrument and switches
U18NN010
1 - Left Turn Indicator
2 - Tachometer
3 - Load Sensing Button
4 - Warning Lights Switch
5 - Cruise Control Button
6 - Horn Switch
7 - Turn Signal Switch
8 - Headlight and Beacon Light Switch
9 - Progressivity Setting (Sensitivity Switch)
10 - Steering Wheel Adjustment Lever
11 - Speed Control of Cruise Control
12 - Parking Brake Lever
13 - PTO Mode Control
14 - Key Switch
15 - PTO Switch
16 - Hand Throttle Lever
17-Temperature Display
18 - Fuel Gauge
19 - Left Turn Indicator
20 - Air Pressure Gauge, only for tractors equipped with trailer air brakes
21 - Temporar
Trailer Brake Deactivation Button, onl
for tractors equipped with trailer air brakes
CONTROLS, INSTRUMENTS & OPERATIONS
