Zetor UTILIX HT 45 - Front Three-Point Hitch; Controlling Front Three-Point Hitch

*Front three-point hitc
h
Controlling front three-point hitch
After lowering or lifting the front three-point hitch arms to the required position, lock the
j
o
y
stick lever with the lock
(
5
)
to prevent it from movin
g
when accidentall
y
leanin
g
a
g
ainst the
j
o
y
stick lever.
It is used for attachment of front mounted implements and
tools with hitch points of category I. according to ISO.

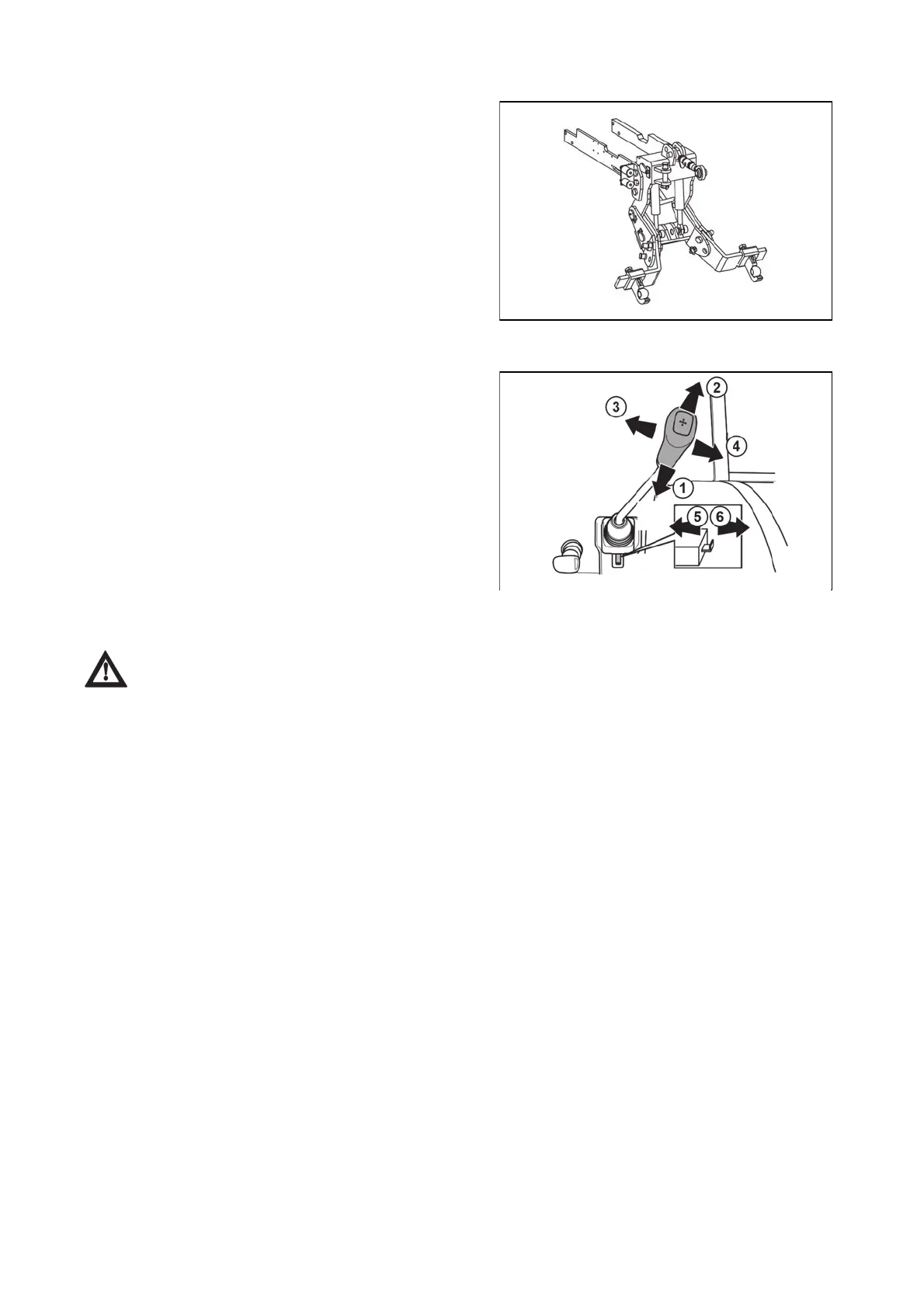

UCL18NN005
The hitch is equipped with two hydraulic cylinders.
Lifting and lowering is performed by the joystick lever
located on the right side of the driver's seat.
1 - Lifting of Front Three-Point Hitch Arms
2 - Lowering of Front Three-Point Hitch Arms
3, 4 - Oil pressure release to the quick couplers of the
SCV located on the front three-point hitch
5 - Joystick lever is locked
6 - Joystick lever is unlocked
The button on the joystick head is not functional in this
case.
UCL18N036
CONTROLS, INSTRUMENTS & OPERATIONS
70
