ZETRON MAX - Rack Hardware Configuration; Switch and Gateway Options; Management Information System Hardware; Max Call Taking Server Core

CABLE MANAGER
SWITCH B
SWITCH A
802-0330 UPS
GATEWAY 4
GATEWAY 3
GATEWAY 2
GATEWAY 1
024-0357 K
SHEET 2 OF 3
REDMOND, WASHINGTON 98073-9704
ZETRON INCORPORATED
PO BOX 97004
MAX CALL TAKING CORE SERVER SYSTEM
INTERCONNECT DIAGRAM

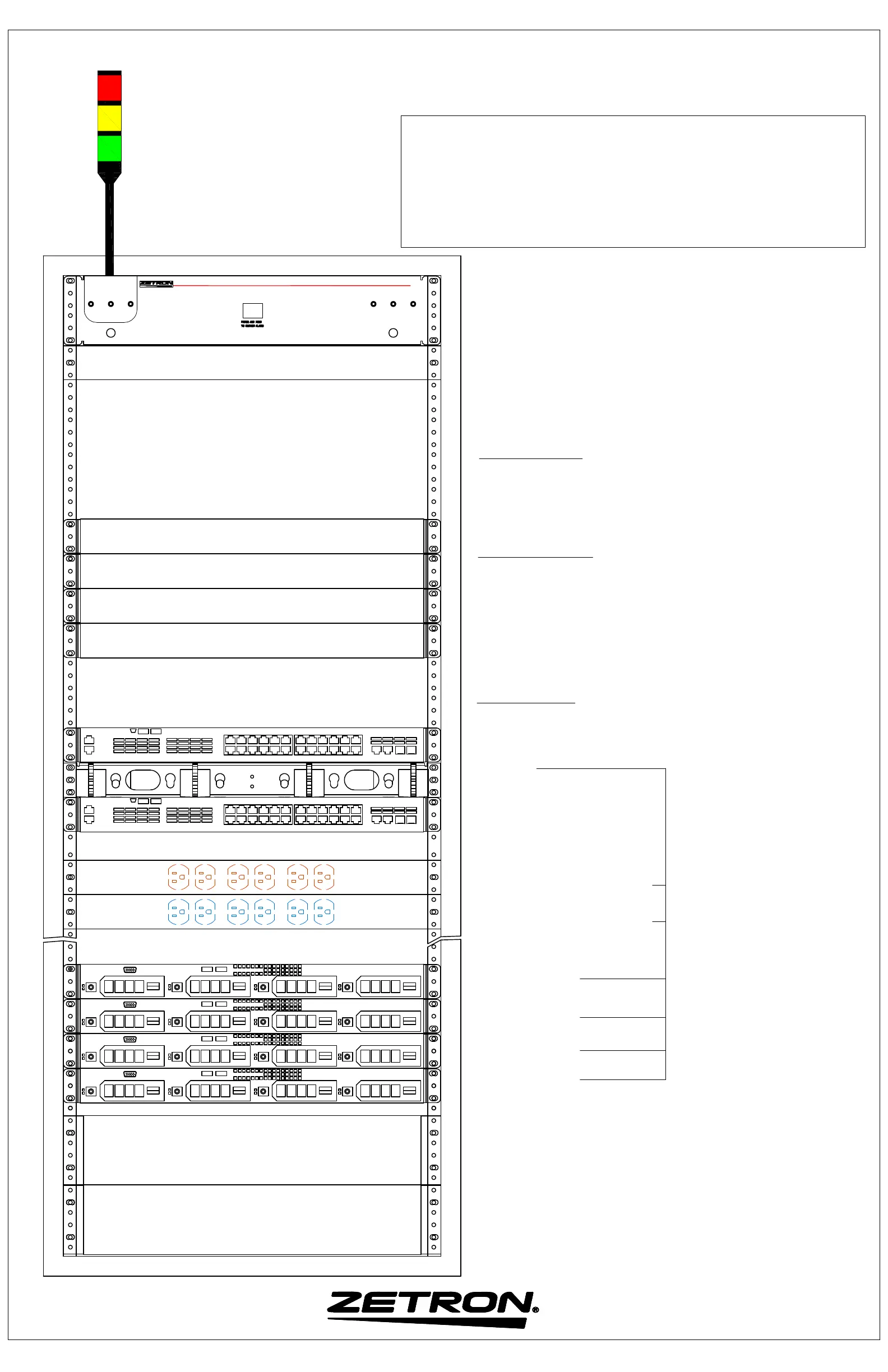

Typical Rack Hardware Configuration
(Front View)
1U BLANKING PLATE 415-0484-1
CORE SERVER 4
CORE SERVER 3
CORE SERVER 2
CORE SERVER 1
BLANK
MAX CALL TAKING
SERVER CORE
905-0526
802-0330 UPS
42U
41U
40U
39U
38U
37U
36U
35U
34U
33U
32U
31U
30U
29U
28U
27U
26U
25U
4U
3U
2U
1U
905-0525
2U AUDIBLE STACK LIGHT FOR
CORE SERVERS
1U BLANKING PLATE 415-0484-1
802-0174
GATEWAY OPTIONS:
950-1160 FXO GATEWAY, 12 PORT
950-1161 FXO GATEWAY, 24 PORT
950-1182 FXS GATEWAY, 12 PORT
950-1162 CAMA GATEWAY, 12 PORT
950-1164 T1/E1/PRI GATEWAY
950-1400 SESSION BORDER CONTROLLER GATEWAY (PATTON SN5501)
950-1401 MAX CALL TAKING T1/E1/PRI GATEWAY
SWITCH OPTIONS:
950-1284 24-PORT, (24-POE) MANAGED GIGABIT RACKMOUNT SWITCH
950-1286 48-PORT, (48-POE) MANAGED GIGABIT RACKMOUNT SWITCH
950-1459 24-PORT, (24-POE) MANAGED GIGABIT RACKMOUNT SWITCH
950-1460 48-PORT, (48-POE) MANAGED GIGABIT RACKMOUNT SWITCH
FOR ADDITIONAL INFORMATION:
025-9656 CONSOLE OPERATION MANUAL
025-9672 ADMINISTRATION MANUAL
025-9679 SYSTEM TECHNICAL OVERVIEW MANUAL
025-9697 MAP VIEWER MANUAL
025-9697-1 MAX CAD MAP VIEWER MANUAL
025-9706 SYSTEM CONFIGURATION AND MAINTENANCE MANUAL
025-9707 INSTALLATION MANUAL
025-9718 MANAGEMENT INFORMATION SYSTEM (MIS) S/W INSTALLATION MANUAL
OTHER OPTIONS:
905-0477 MANAGEMENT INFORMATION SYSTEM (HARDWARE 683-0500)
<
POWER STRIP (A) 802-0370
POWER STRIP (B) 802-0370
24U
<
<
<
<
<
<
5U
7U
6U
8U
9U
