The output shaft [2] connected to the propeller shaft does not transmit any rotation.
The clutches are disengaged.
Engine rotation
The output shaft [2] connected to the propeller shaft rotates in the same direction as the input
shaft [1].
Counter engine rotation
The output shaft [2] connected to the propeller shaft rotates in the opposite direction to the input
shaft [1].
E.R. = direction of rotation same as direction of rotation of engine
C.E.R. = direction of rotation opposite to direction of rotation of engine
The transmission ratio, for both the engine and counter-engine rotation modes, is stated on the
identification plate. The three types of operation are controlled by the control valve [3] (mechani-
cal or electrical).

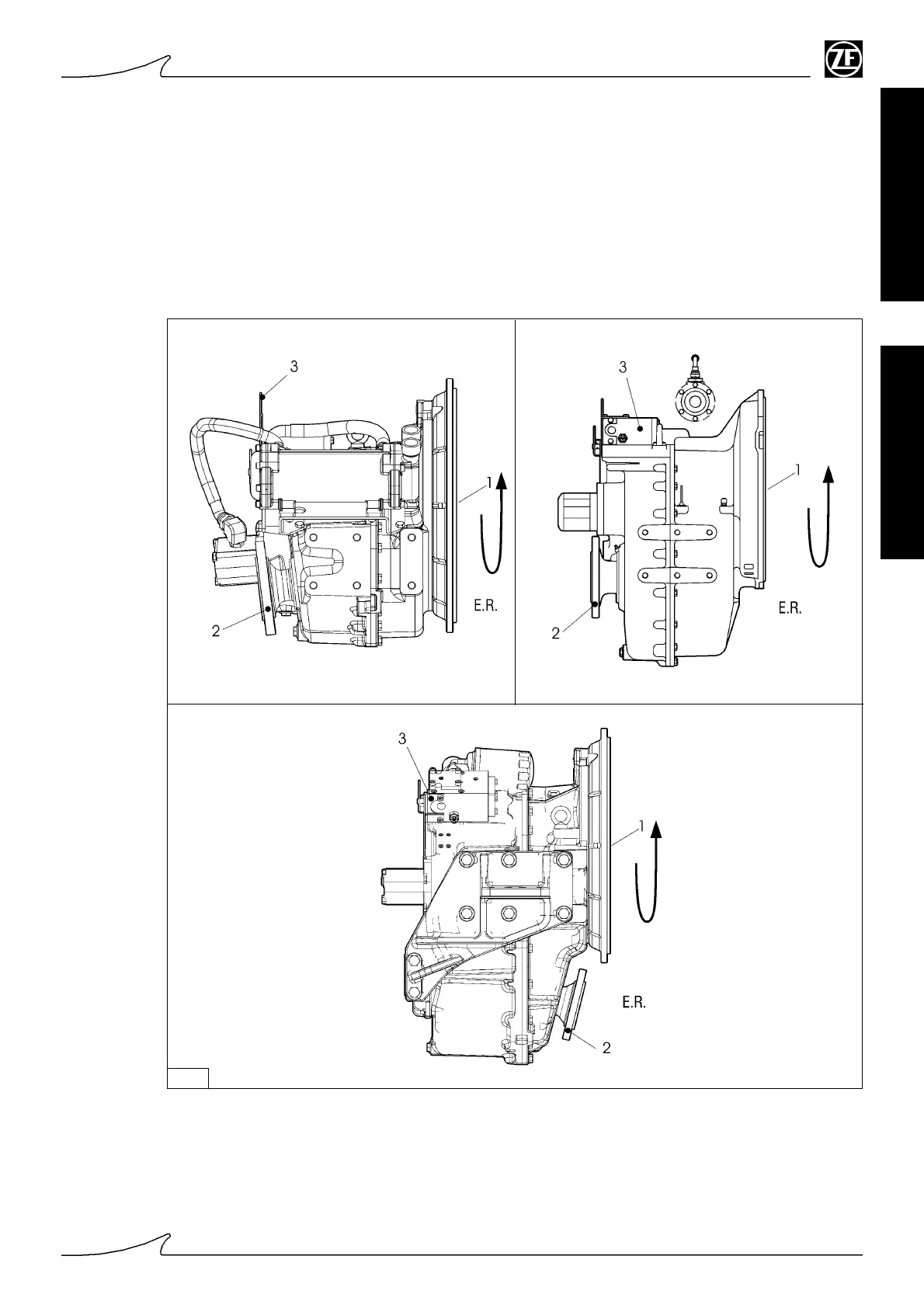

Fig. 5
ZF 325 - ZF 325 A ZF W 325
ZF 325 IV
