After using the installation template as a guide for the
drilling of the hole for the exhaust pipe, the Laser can
be installed normally, according to the procedure in the
illustration.
If the template is lost or the heater has to be moved,
these are the dimensions and locations of the holes for
the fuel pipe and exhaust pipe.
Do not r
emove any components fr
om the
heater. Always contact your dealer if repairs
ar
e r
equir
ed.
If the electricity cable is damaged, this may
only be replaced with type H05 VV-F and by
a recognised installer.
Chapter 1, INSTALLATION
30
Laser FF 55

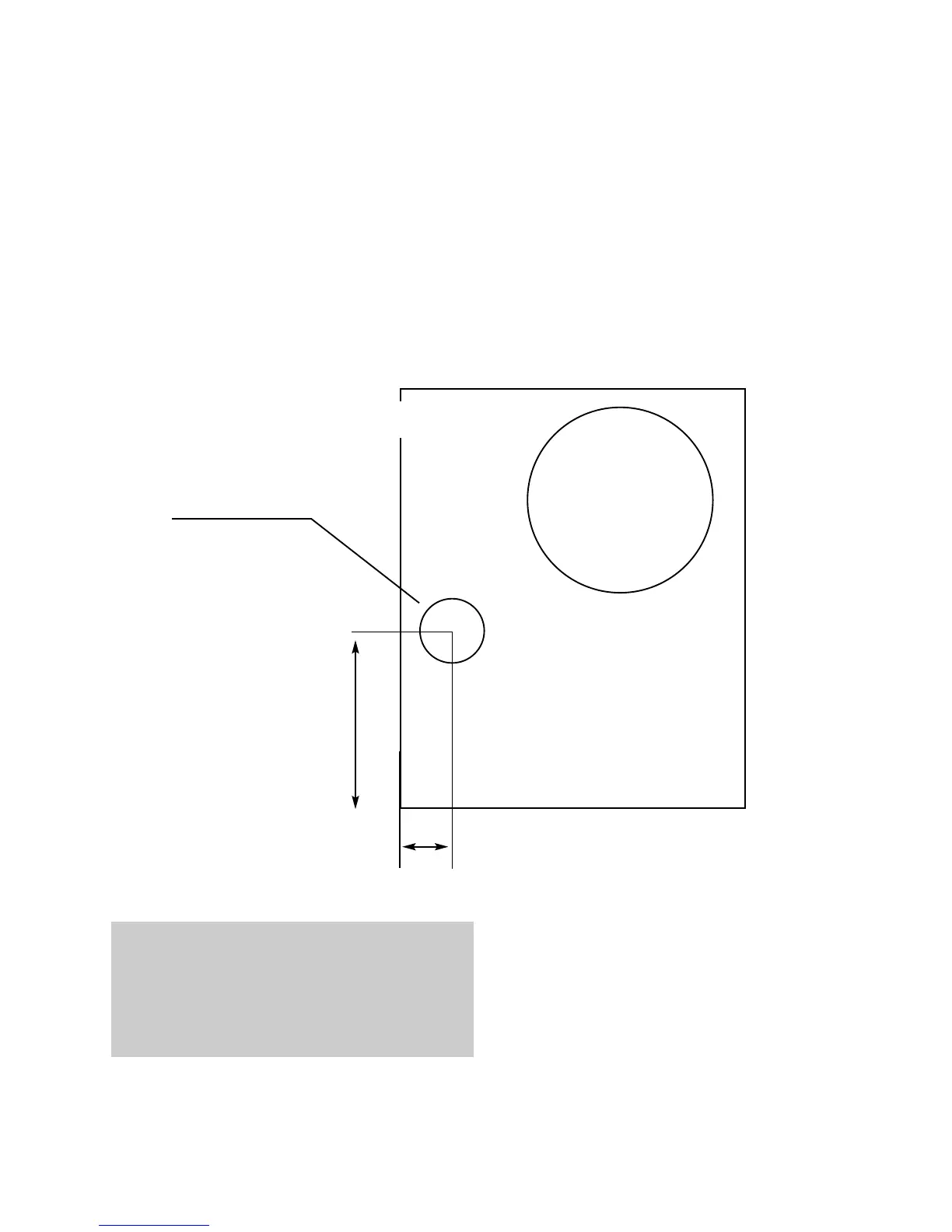

Fig. 1-3 Template
Achterkant van de
kachel
314 cm.
108 mm
Back of the heater
Centr
e of the
feed-through
component
