3 - 2 MC1000 with Windows CE 4.2 User Guide
Single Slot Serial/USB Cradle
This section describes how use the Single Slot Serial/USB Cradle with the mobile computer.

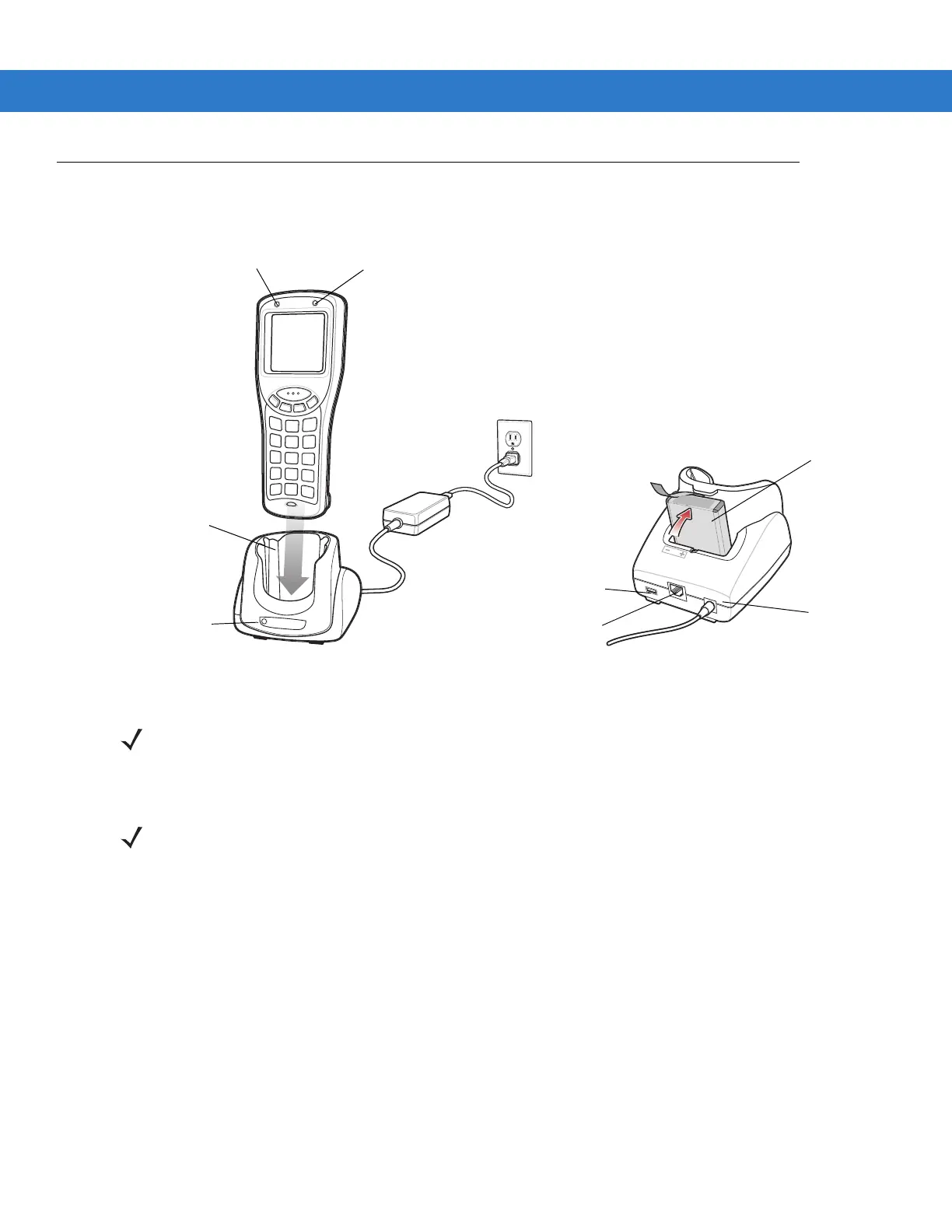

Figure 3-1
Single Slot USB Cradle
The Single Slot Serial/USB cradle:
•
Provides 5.4 VDC power for operating the mobile computer.
•
Provides a serial port and USB port (mini B receptacle) for data communication between the mobile
computer and a host computer.
•
Synchronizes information between the mobile computer and a host computer (with customized or third party
software, it can also synchronize the mobile computer with corporate databases).
•
Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer (cradle serial communication cable is available). For communication setup procedures,
refer to the MC1000 with Windows CE 4.2 Integrator Guide.
•
Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer (cradle USB communication cable is available). For communication setup procedures, refer
to the MC1000 with Windows CE 4.2 Integrator Guide.
Charge LED
Mobile
Computer Slot
Spare
Battery
Spare
Battery
Charging
LED
Power Port
Serial Port
USB Port
Scan LED
NOTE Use only an approved power supply output rated 5.4 VDC and minimum 3 A. The power supply is certified
to EN60950 with SELV outputs. Use of alternative power supply will invalidate any approval given to this
device and may be dangerous.
HINWEIS Benutzen Sie nur eine genehmigt in den Ausgabe: 5.4 VDC und minimum 3A. Die Stromversorgung ist
bescheinigt nach EN60950 mit SELV Ausgaben. Bei Verwendung eines anderen Netzteils werden alle
für das Gerät gewährten Genehmigungen außer Kraft gesetzt, und der Betrieb kann gefährlich sein.
