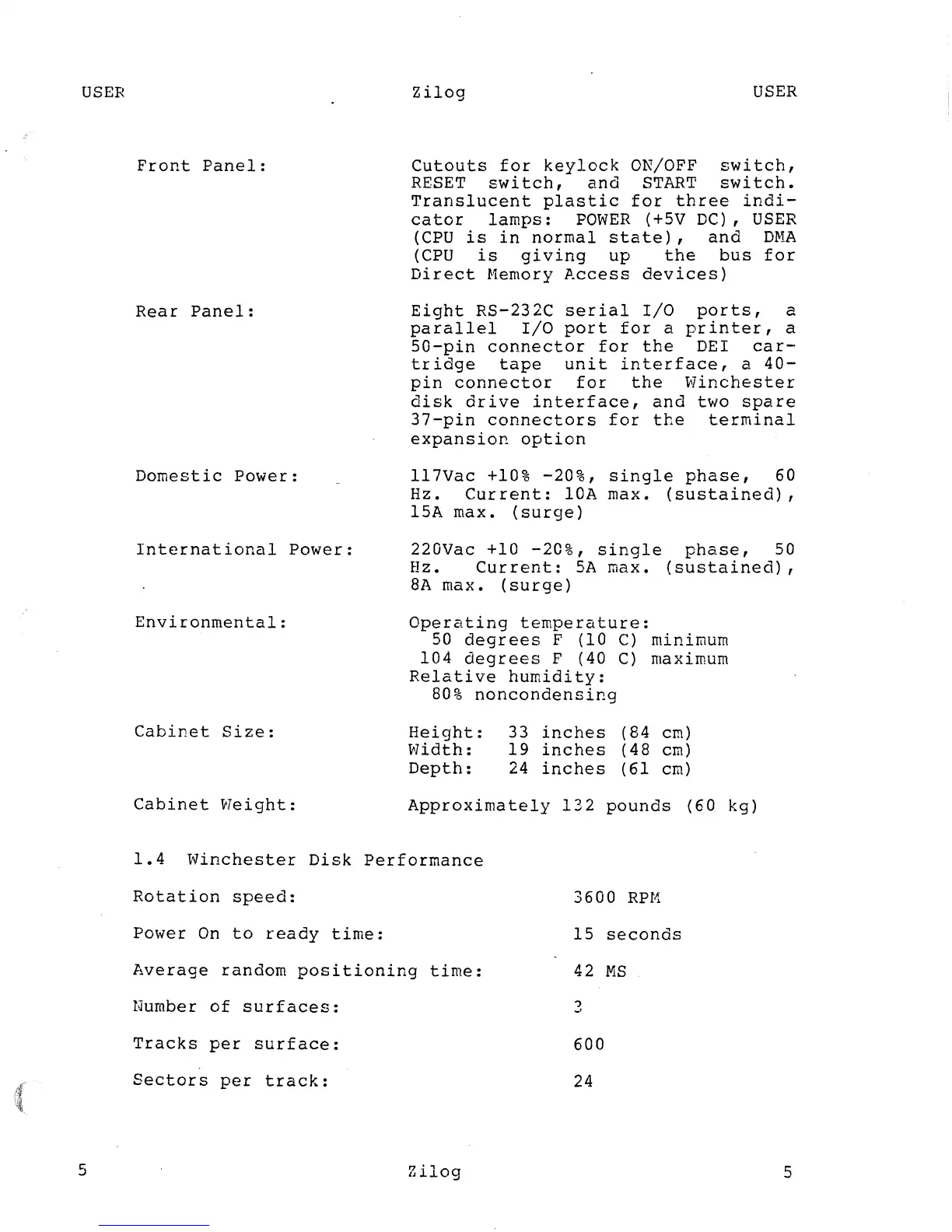

Front Panel:
Rear Panel:
Domestic Power:
International Power:
Environmental:
Cabinet Size:
Cabinet ~leight:
Zilog
USER
Cutouts for keylock ON/OFF switch,
RESET switch, and START switch.
Translucent plastic for three indi-
cator lamps: POWER (+SV DC), USER
(CPU is in normal state), and DMA
(CPU is giving up the bus for
Direct Memory Access devices)
Eight RS-232C serial I/O ports, a
parallel I/O port for a printer, a
50-pin connector for the DEI car-
tridge tape unit interface, a 40-
pin connector for the Winchester
disk drive interface, and two spare
37-pin connectors for the terminal
expansion option
l17Vac +10% -20%, single phase, 60
Hz. Current: lOA max. (sustained),
l5A max. (surge)
220Vac +10 -20%, single phase, 50
Hz. Cur rent: SA max. (sustained),
8A max. (surge)
Operating temperature:
50 degrees F (10 C) minimum
104 degrees F (40 C) maximum
Relative humidity:
80% noncondensing
Height:
l-I7idth:
Depth:
33 inches (84 crn)
19 inches (48 crn)
24 inches (61 crn)
Approximately 132 pounds (60 kg)
1.4 Winchester Disk Performance
Rotation speed:
Power On to ready time:
Average random positioning time:
Number of surfaces:
Tracks per surface:
Sectors per track:
Zilog
3600 RPr1
15 seconds
42 MS
")
...
600
24
5
