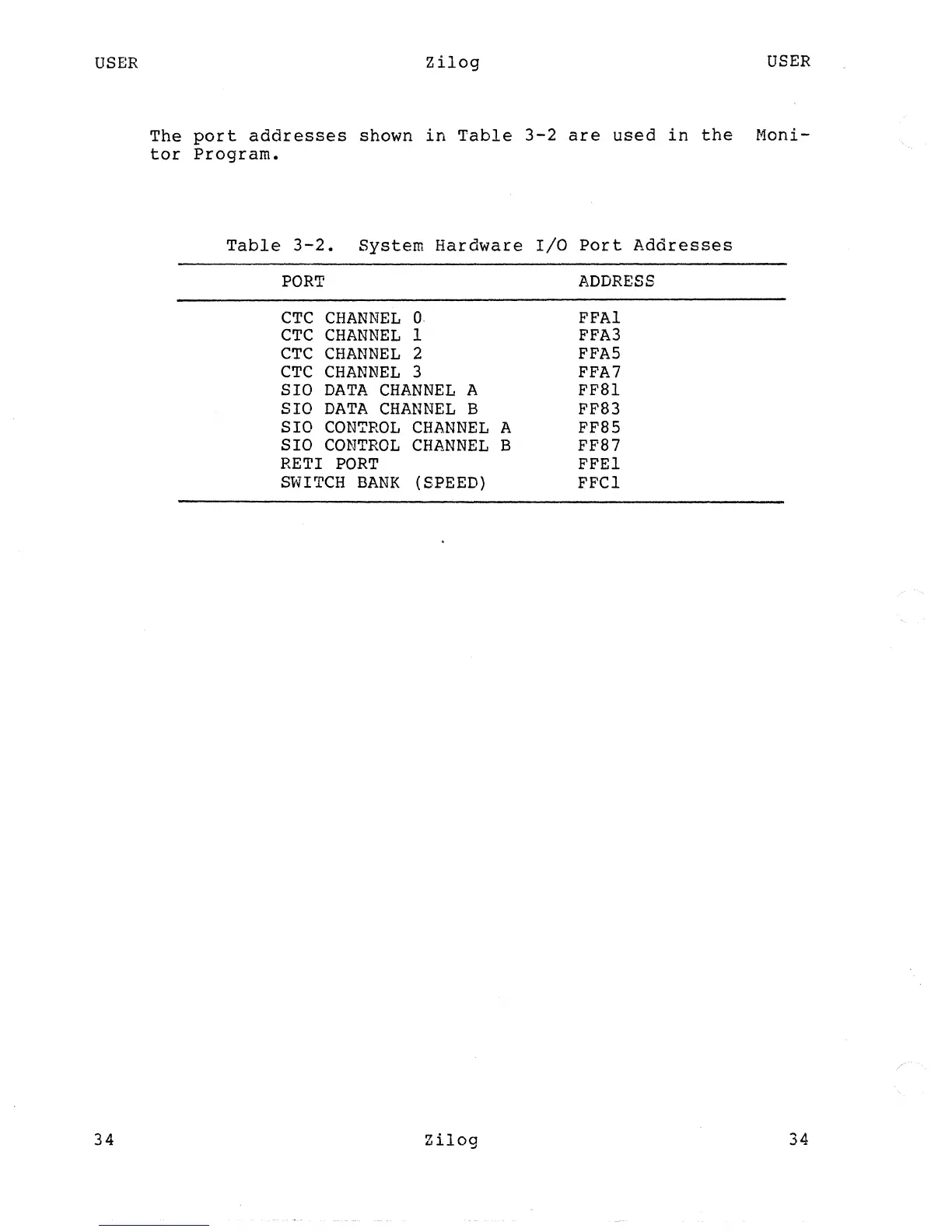

USER
34
Zilog
USER
The
port
addresses
shown
in
Table
3-2
are
used
in
the
Moni-
tor
Program.
Table
3-2.
System
Hardware
I/O
Port
Addresses
PORT
ADDRESS
CTC
CHANNEL
O.
FFAI
CTC
CHANNEL
1
FFA3
CTC
CHANNEL
2
FFA5
CTC
CHANNEL
3
FFA7
SIO
DATA
CHANNEL
A
FF8l
SIO
DATA
CHANNEL
B FF83
SIO
CONTROL
CHANNEL
A
FF85
SIO
CONTROL
CHANNEL
B FF87
RETI
PORT
FFEI
SWITCH
BANK
(SPEED)
FFCI
Zilog
34
