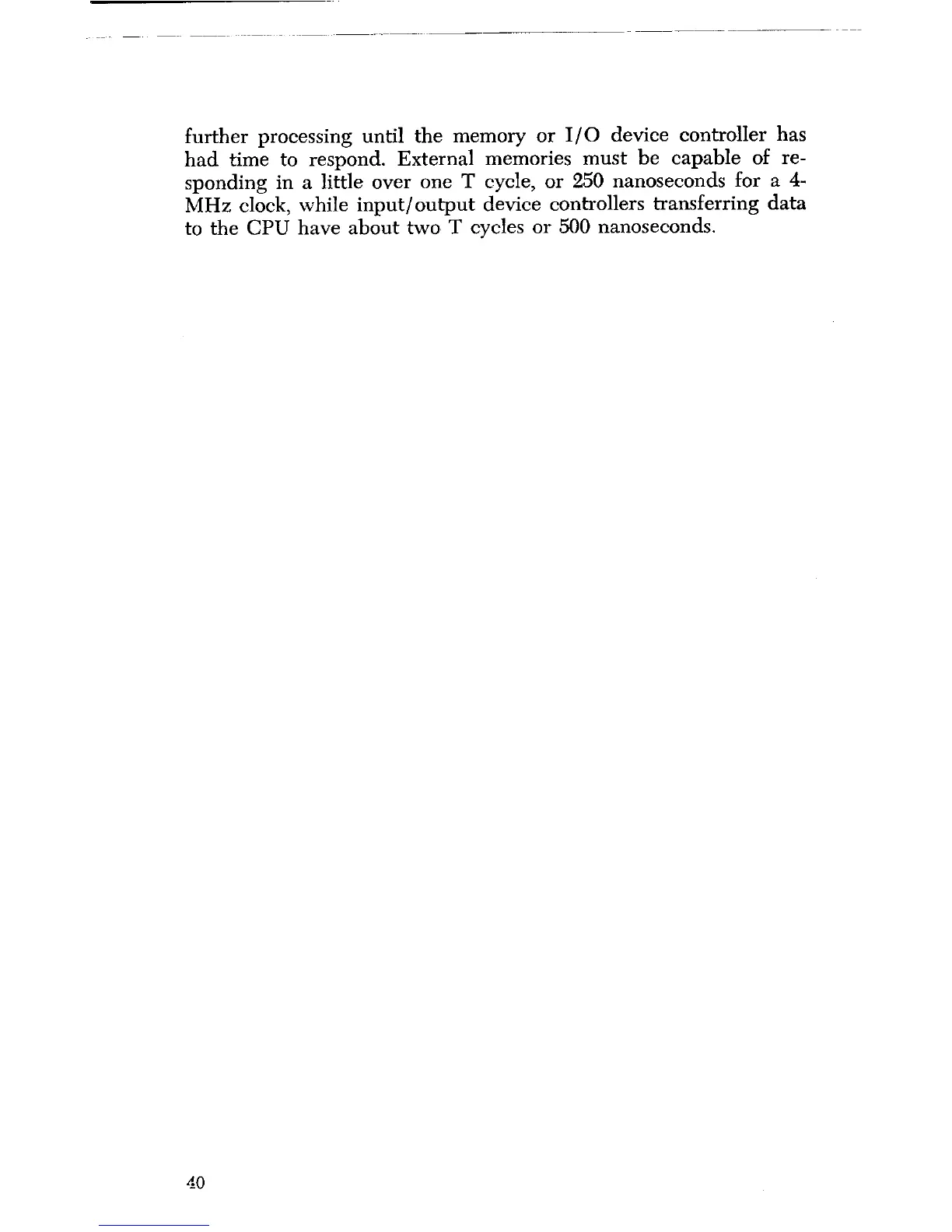

further processing until the memory or I/O device controller has
had time to respond. External memories must be capable of re-
sponding in a little over one T cycle, or 250 nanoseconds for a 4-
MHz clock, while input/output device controllers transferring data
to the CPU have about two T cycles or 500 nanoseconds.
