ZINCKER VAULTA K1 - Prepare the door and check dimensions; Prepare door and jamb; Mark the door for drilling

Prepare the door and check dimensions
1. Prepare door and jamb

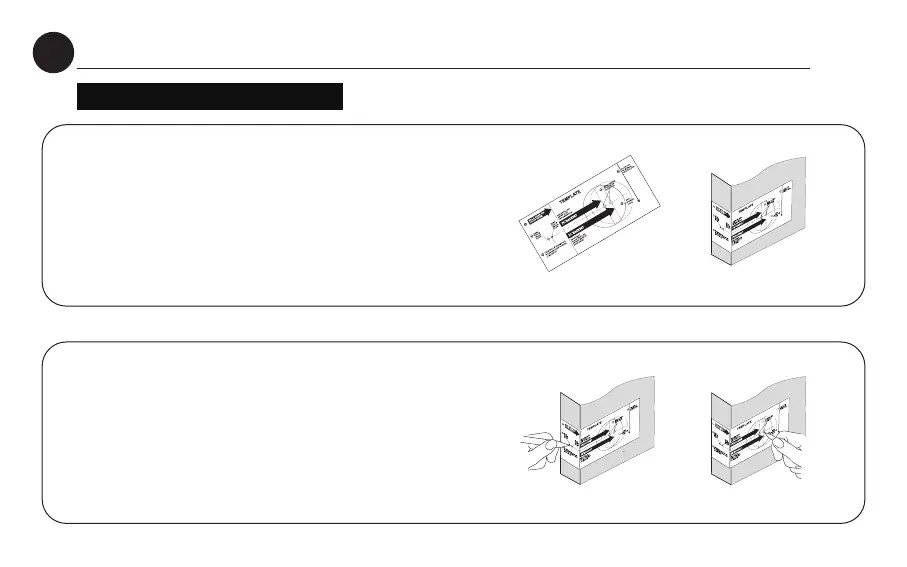

a. Take out the ‘Door Marking Template’ (Figure 1a).
b. Fold template and place on door 36” (915mm)
from the ground as marked (Figure 1b).
2. Mark the door for drilling
a. Mark center hole on door edge through guide on
template for 1” (25mm) latch bolt (Figure 2a).
b. Mark center hole on door face through guide
on template for 2-3/8” (60mm) or 2-3/4” (70mm)
backset (Figure 2b).
-1a-
1
For installation on new doors
-1b-
-2a- -2b-
