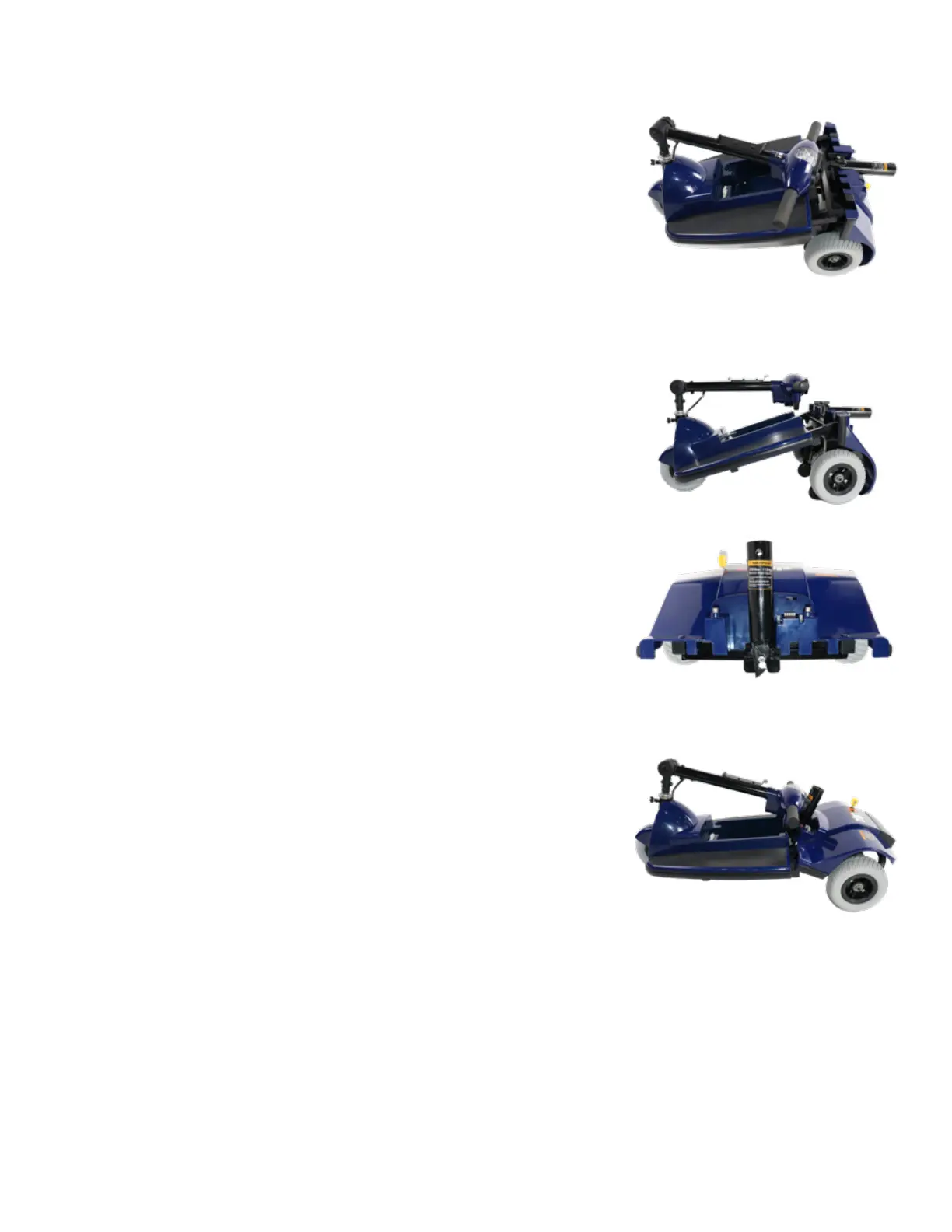

Figure 2. To begin assembly, tilt the rear frame back so it is freely
standing on the rear bumper. Lift the front frame up and set it down
onto the rear frame by connecting the front frame curved locking
brackets (one on each side) onto the rear frame bracket pegs (one
on each side).
Figure 3. After the steps in Figure 2 have been completed, the
mobility scooter should be in this position.
Figure 4. The latch in the middle of the rear frame must be pressed
together during assembly and disassembly, in order to release the
rear frame from the front frame.
Figure 5. Holding the seat post, slowly push the rear frame forward
with a downward motion until the latch in Figure 4. locks onto the
front frame locking peg.
