and should not be thrown away with household waste. Dispose of them
in an appropriate battery recycling centre.
ENVIRONMENT
The device is delivered in a package to protect it against any possible
transport damage. The packaging is made from non-processed
material and can be recycled. Throw the materials to appropriate
colour containers for selective waste collection.
Protect the environment and do not throw used batteries into
household wastes. Return them to the point of sale or a special
recycling centre.
Used electrical equipment (including the computer and power supply)
are recyclable. Do not throw them out with household waste as they
may contain substances dangerous to the health and environment. You
can actively contribute to sustainable use of natural resources and the
protection of the natural environment by handing the used device to
a recycling centre for used electrical devices.
ASSEMBLY
The device must be assembled carefully by an adult. In case of doubt,
ask a more experienced person for help.
• Prior to the assembly, make sure the set contains all
the listed elements and whether none of the parts was damaged
during transport. If any parts are missing or you have any other
reservations, contact the seller.
• Have a look at the drawings and explanations and follow the
assembly manual when assembling the device.
• Be careful during the assembly. There is a risk of injury when
using the tools and parts.
• Remember to keep your surroundings safe. Do not let tools and
parts lie around in chaos. Remember that plastic foil and bags
pose o suffocation risk to small children.
• Assembly parts necessary for a specific step in
the assembly manual are shown in pictures and included in
instructions. Use the elements indicated in the assembly
manual.
• Do not tighten parts completely during the first stages
of the assembly. Tighten connections after all parts are placed
and fitted properly.
• The manufacturer may have assembled some parts.
ASSEMBLY DIAGRAM (→ See page 2)
ATTENTION! Do not use parts other than those provided by the manufacturer.
PARTS LIST
No.
Description
Quantity
No.
Description
Quantity
1
Main frame
1
20
Resistance adjustment mechanism knob
1
2
Front base
1
21
Resistance adjustment mechanism cover
1
3
Rear base
1
22
Flat washer D5
1
4
Handlebar post
1
23
Bolt M5x40
1
5
Steering wheel
1
24
Heart rate measurement cable
2
6
Saddle post
1
25
Curved washer D8×φ22×1.5×r25
2
7
Saddle
1
26
Nylon nut m8
3
8
Computer
1
27
Curved washer D8×φ25×1.5×r25
4
9L/R
Pedal
1/1
28
Foam grip
2
10
Crank
1
29
Handlebar cap
2
11
Front base pad
2
30
Hexagontal screw
4
12
Rear base levelling pad
2
31
Saddle height knob
1
13
Bolt M10x57
4
32
Plastic sleeve
1
14
Curved washer D10xφ25x1.5xr28
4
33
Flat washer d8
3
15
Nut M10
4
34
Water bottle
1
16
Resistance adjustment cable
1
35
Water bottle holder
1
17
Computer cable
1
36
Screw
2
18
Connecting cable
1
37
Flat washer
2
19
Allen bolt M8x15
6
38
Towel holder
1
ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

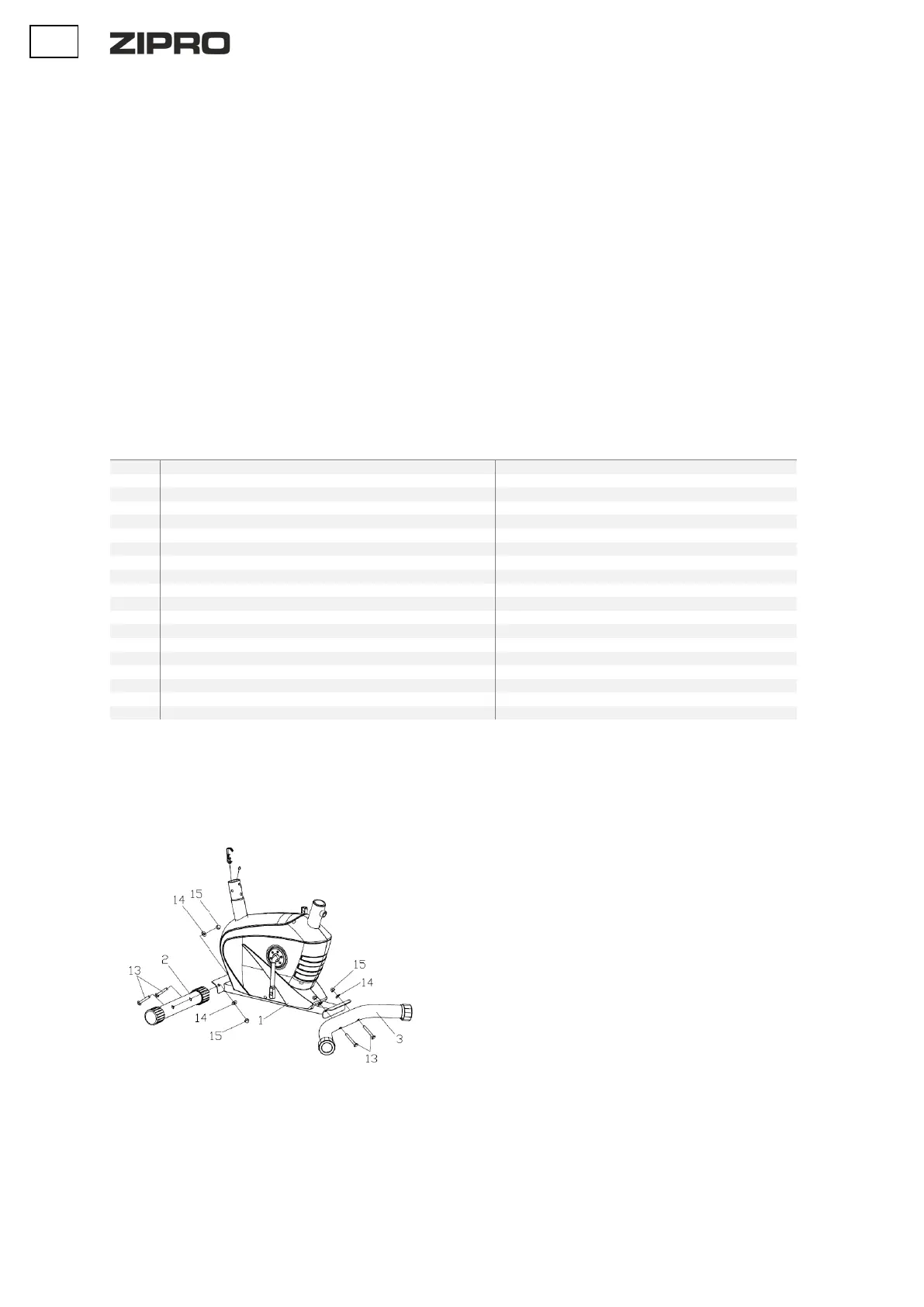

1. Install the front and rear base
Fix the front (2) and rear base (3) to the main frame (1) using bolts (13),
curved washers (14), and nuts (15).
ATTENTION! Remove any plastic or cardboard safety inserts before
assembly.
CAUTION! The front base has transport rollers.
