ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

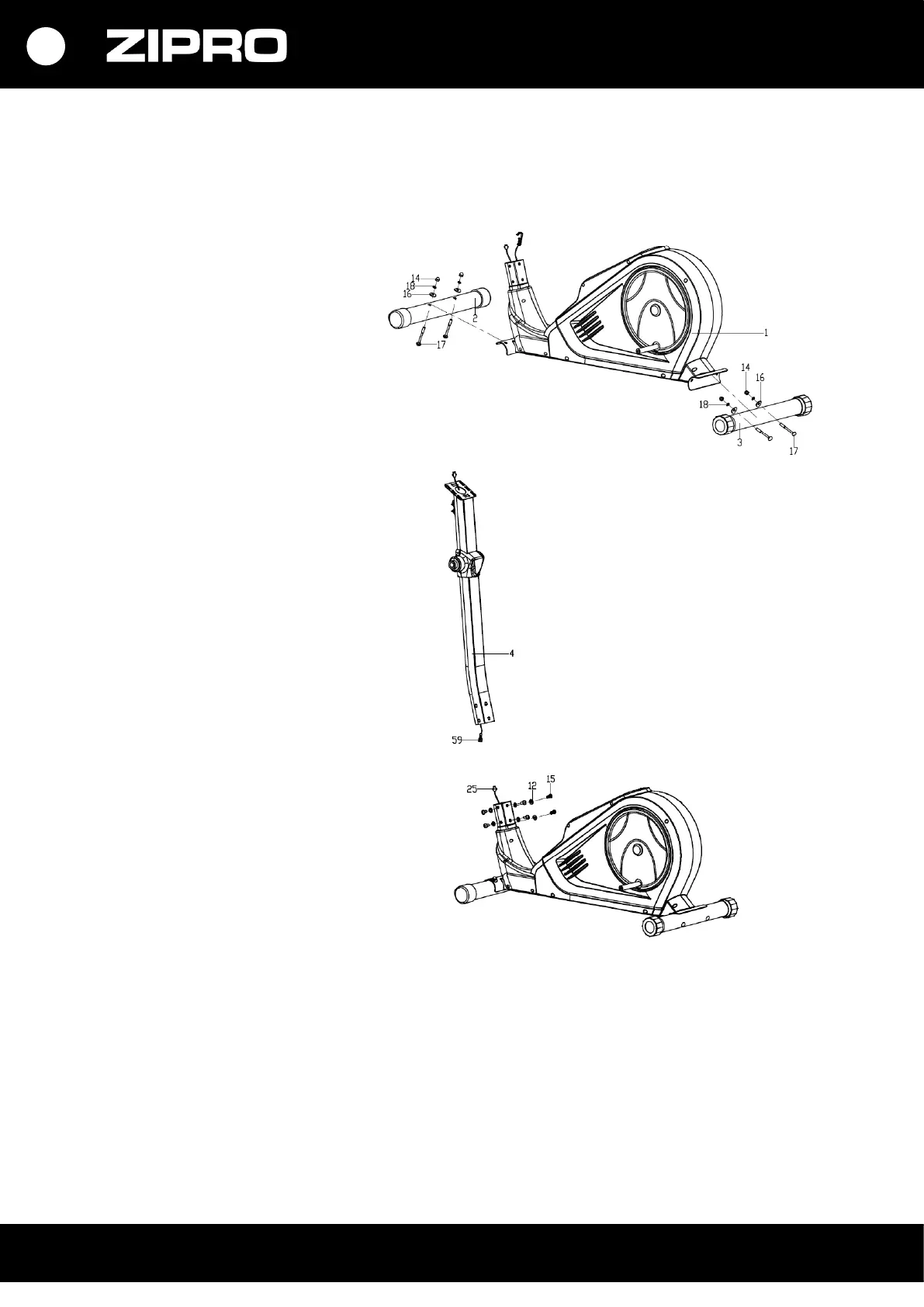

STEP 1.
Fix the rear (3) and front base (2)
to the main frame (1) using flat
washers (16), spring washers (18),
bolts (17), and nuts (14).
ATTENTION! Remove any plastic
or cardboard safety inserts before
assembly.
STEP 2.
Connect the connecting computer
cable (59) to the sensor cable (25).
Fix the handlebar post (4) to the
main frame (1) with Allen bolts (15)
and flat washers (12).
To Next Page
