16
EN
30
Nylon nut M10
4
62
Sensor wire
1
31
Outer hex nut M10
4
63
Sensor extension wire
1
32
Base decorative cover
4
ASSEMBLY MANUAL
CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

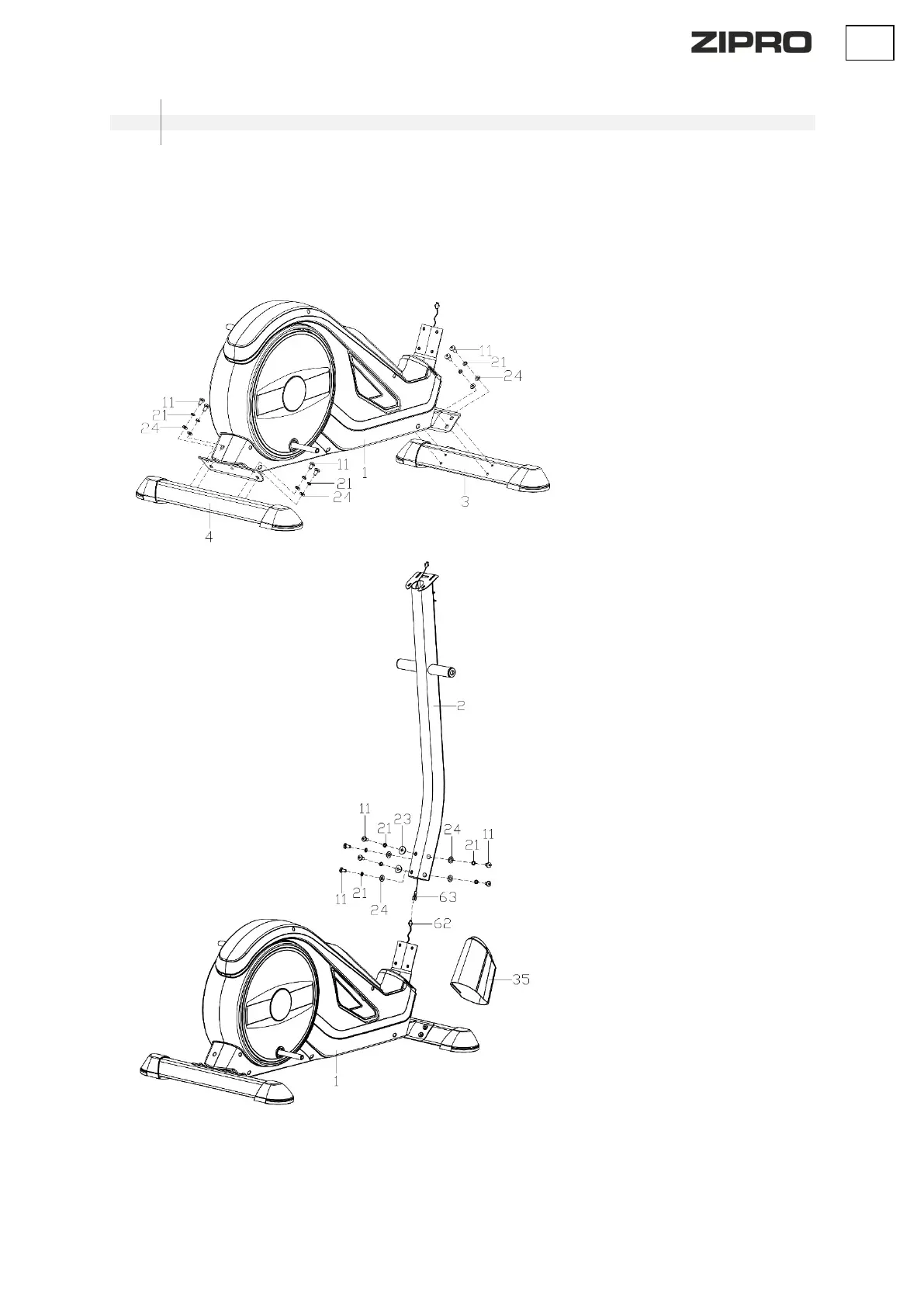

STEP 1.
Fix the rear (4) and front base (3) to the main frame
(1) using flat washers (24), spring washers (21) and
bolts (11).
ATTENTION! Remove any plastic or cardboard
safety inserts before assembly.
CAUTION! The front base has handling wheels.
STEP 2.
Install the cover (35) onto the handlebar post (2).
Connect the connecting computer cable (63) to the
sensor cable (62).
Fix the handlebar post (2) to the main frame (1)
with Allen bolts (11), spring washers (21), curve
washers (23) and flat washers (24).
