18

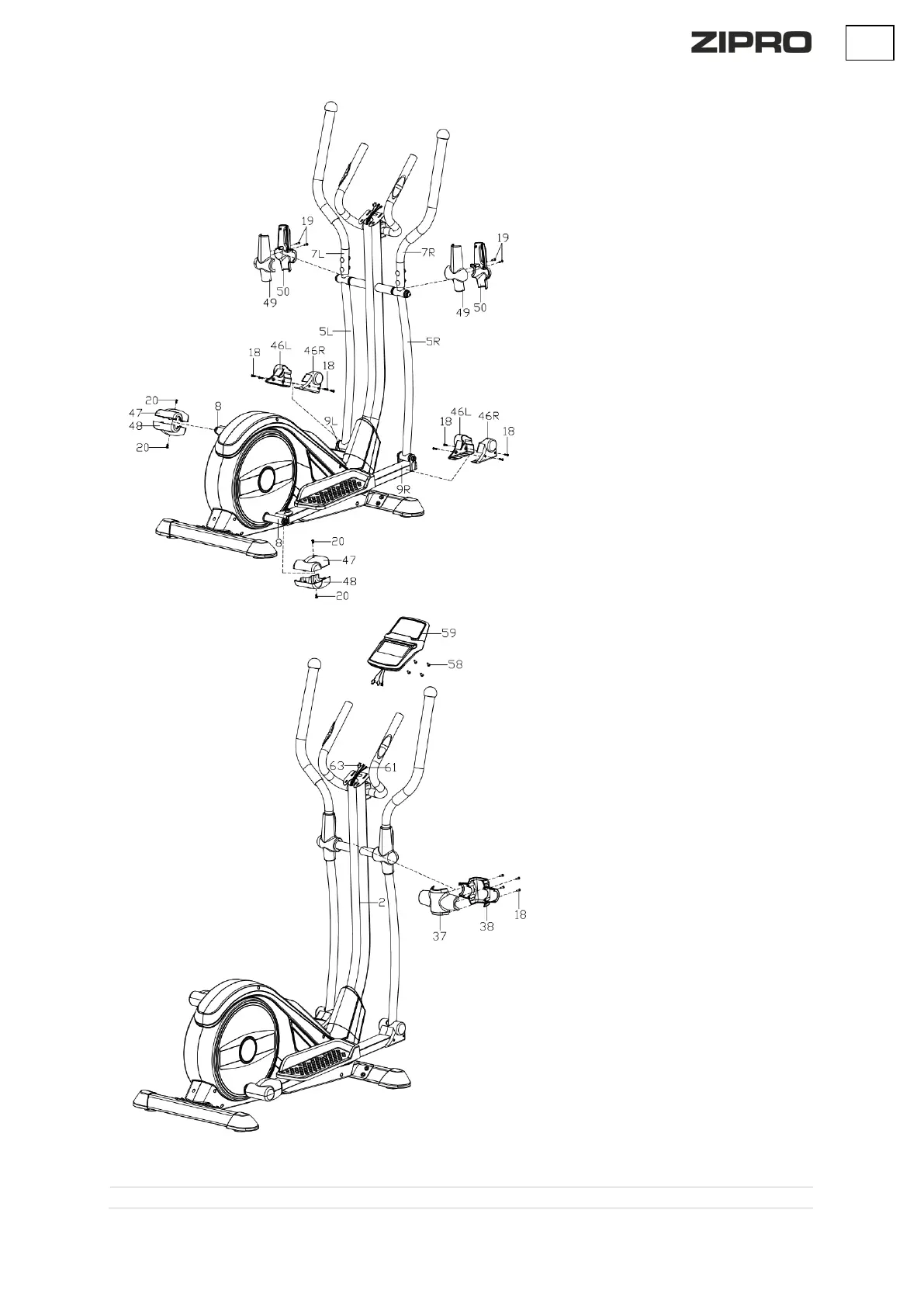

STEP 5.
Install and screw the handle arm cover (49, 50) on
with screws (19).
Install and screw the front cover of pedal bases
(46L/R) on with screws (18).
Install and screw the rear cover of pedal bases (47,
48) on with screws (20).
STEP 6.
Connect the computer connecting cable from the
upper part of the handlebar post (63) and the
heart rate sensor cables (61) to the cables from the
computer (59).
Install the computer (59) on the computer bracket
in the upper part of the handlebar post (2) with
screws (58).
STEP 7.
Plug in the power supply unit and plug the cable
into the power socket on the front of the
mainframe.
ADJUSTMENTS
Level the device by rotating the levelling feet in the rear and front base.
