ZKTeco C2-260 Quick Start Guide

9

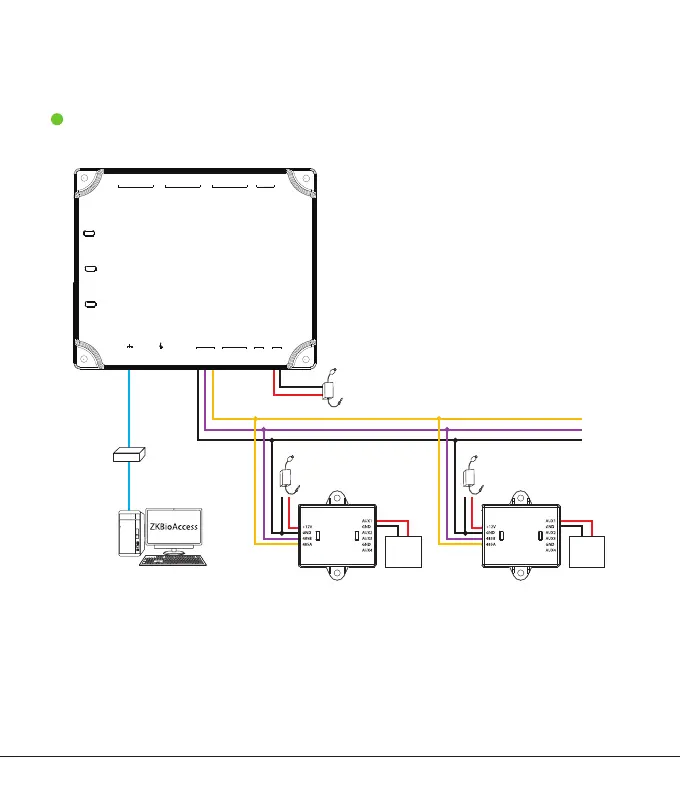

Connection with AUX485
Router
TCP/IP
AUX485 AUX485
485A
485B
GND
DC12V
AUX
Input
Device
DC12V
AUX
Input
Device
DC12V
Note:
1. A C2-260/inBio2-260 can connect to maximum two AUX485 modules.
2. Each AUX485 module can connect to maximum four auxiliary devices.
3. Each AUX485 module requires a separate power supply.
NC COM NO
SEN GND BUT NC COM NO SEN GND BUT
NC COM NO NC COM NO
AUX GND
AUX
GND 485B 485A
12VRD
GND 485B 485A
+12V
GND +12V
GND
LOCK1 LOCK2 AUX OUT AUX IN
PWR
RUN
TCP/IP
RS485 READER VOUT POWER
RS485 DIP
C2-260 / inBio2-260
