10

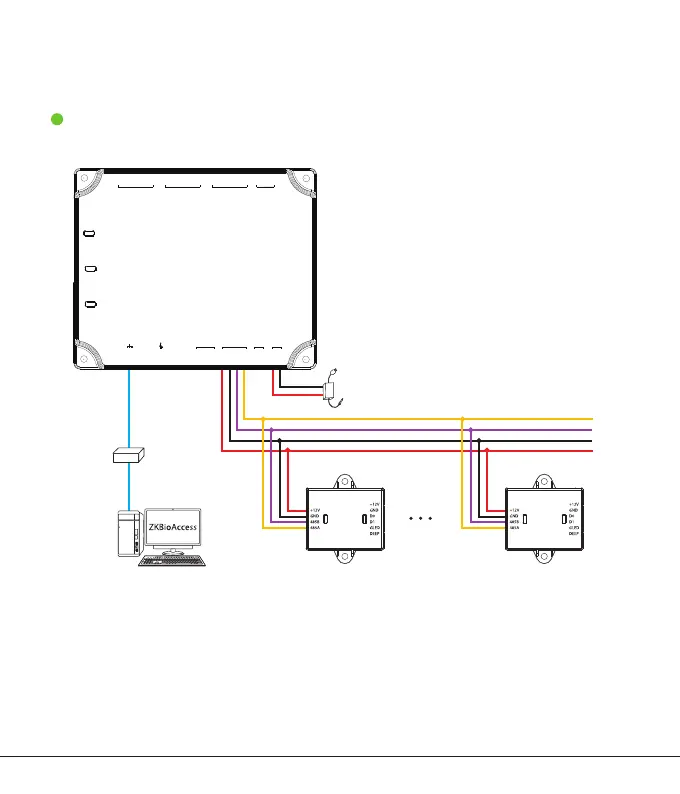

Connection with
WR485
Note:
1. A C2-260/inBio2-260 can connect to maximum four WR485 modules.
Router
TCP/IP
485A
485B
GND
+12V
DC12V
WR485
WR485
NC
COM
NO
SEN
GND
BUT
NC
COM
NO
SEN
GND
BUT
NC
COM
NO
NC
COM
NO
AUX
GND
AUX
GND
485B
485A
12VRD
GND
485B
485A
+12V
GND
+12V
GND
LOCK1
LOCK2
AUX OUT
AUX IN
PWR
RUN
TCP/IP
RS485
READER
VOUT
POWER
RS485 DIP
C2-260 / inBio2-260
11
13
