Connection and Installation
- 21 -
necessary to connect a diode in parallel (please use the FR107 delivered with
the system) with the electronic lock to release the self-induced electromotive
force during onsite connection for application of the access control system.

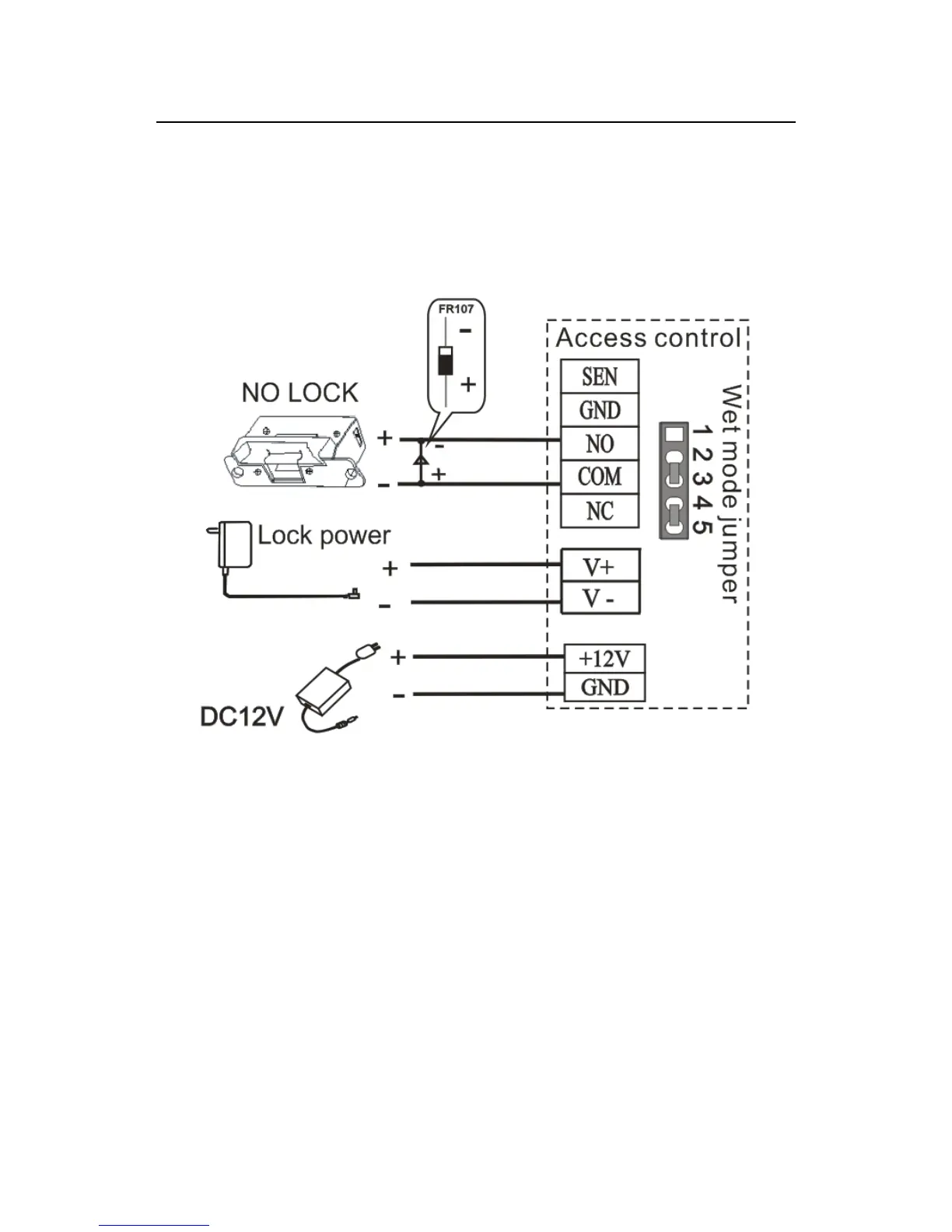

1. Wet mode：External power supply for NO Lock
2. Wet mode：External power supply for NC Lock
